Product Introduction

0.23 Inch Micro OLED Display 640×400 MIPI High Brightness 10000nits OLED Display With HDMI Board For EVF AR Red Dot Sight Display Solutions Overview

ET023VGH03-G is a 0.23-inch Si-OLED display module with a 640×480 resolution and MIPI interface, designed for compact optical applications such as EVF, AR devices, and red dot sight systems. It features a self-emitting OLED structure with ultra-high brightness up to 10000 cd/m² for excellent visibility in bright environments, and includes an HDMI driver board for easy system integration. The active area measures 5.06 × 3.29 mm, enabling ultra-compact designs. It operates in a temperature range of -40℃ to 65℃ and does not support touch functionality. With its high brightness, small size, and stable performance, it is ideal for precision near-eye display solutions.

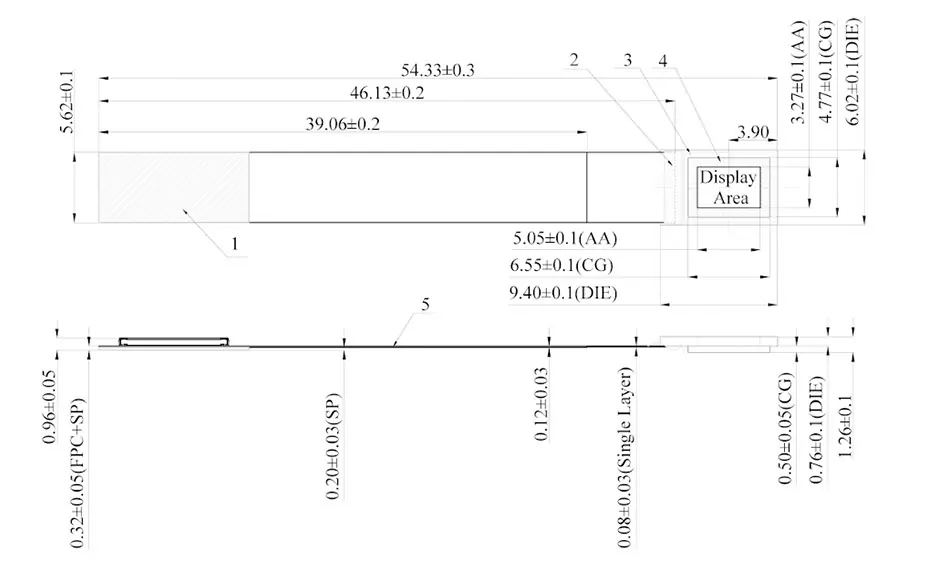

0.23 Inch Micro OLED Display 640×400 MIPI High Brightness 10000nits OLED Display With HDMI Board For EVF AR Red Dot Sight Display Solutions Drawing

0.23 Inch Micro OLED Display Solution For Reference
ET023VGH03-G single green color 10000nits

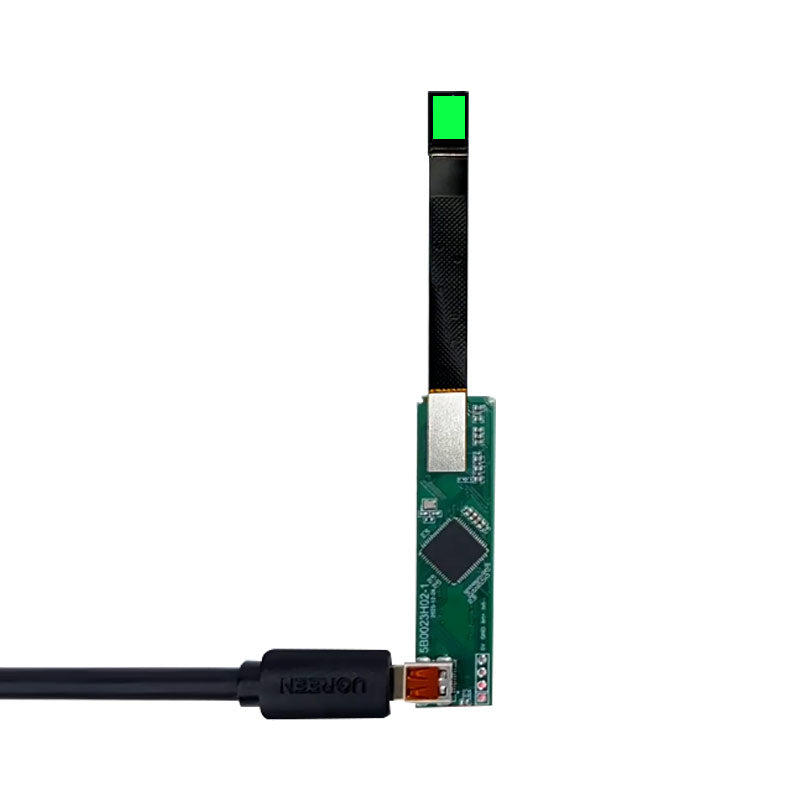

ET023VGH03-G+5B0023H02-1 single green+HDMI+Cable

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection


Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.

Youritech Online is the official online purchasing platform of Youritech Technology Co., Ltd. All products are supplied and fulfilled under Youritech Technology Co., Ltd.
