Product Introduction

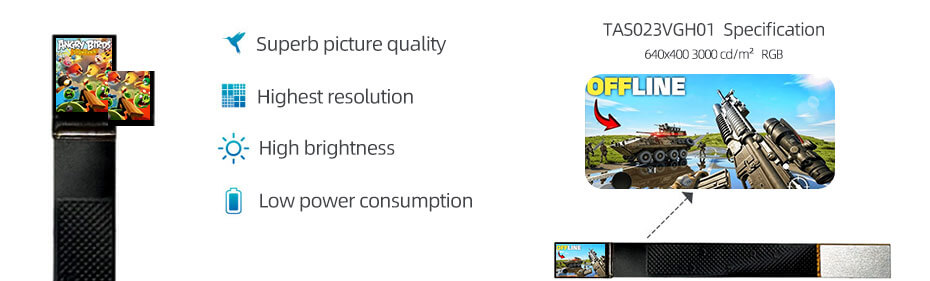

0.23 Inch Micro OLED Display 640×400 MIPI High Brightness 3000nits OLED Display With HDMI Board For EVF AR Red Dot Sight Display Solutions Overview

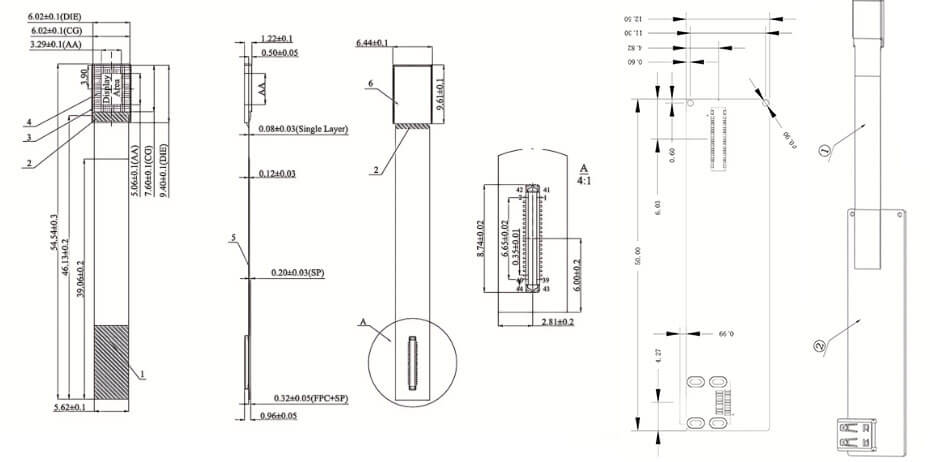

ET023VGH01-G is a 0.23-inch diagonal Micro OLED display module, featuring self-emissive OLED technology for ultra-high contrast and exceptional image clarity. The ET023VGH01-G supports a resolution of 640×480 with a compact microdisplay structure, delivering sharp visuals suitable for precision optical systems. It utilizes a MIPI interface for high-speed data transmission and seamless integration with external driver boards such as HDMI controllers. The display offers an active area of 5.06(W) × 3.29(H) mm, with a peak brightness of up to 3000 cd/m², ensuring outstanding visibility even under strong ambient light conditions. Designed for harsh environments, it supports an operating temperature range of -40°C to +65°C. With its ultra-compact size, high luminance, and low power consumption, the ET023VGH01-G is an ideal display solution for EVF (Electronic Viewfinder), AR devices, red dot sights, optical aiming systems, and wearable display applications.

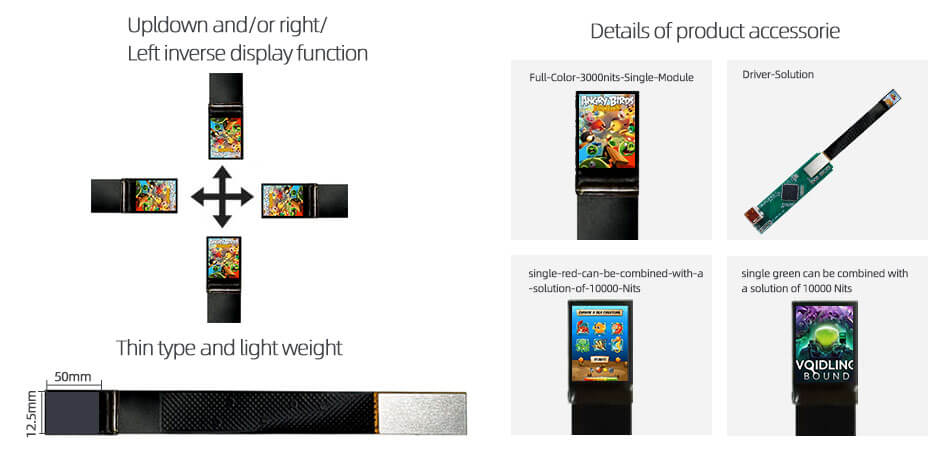

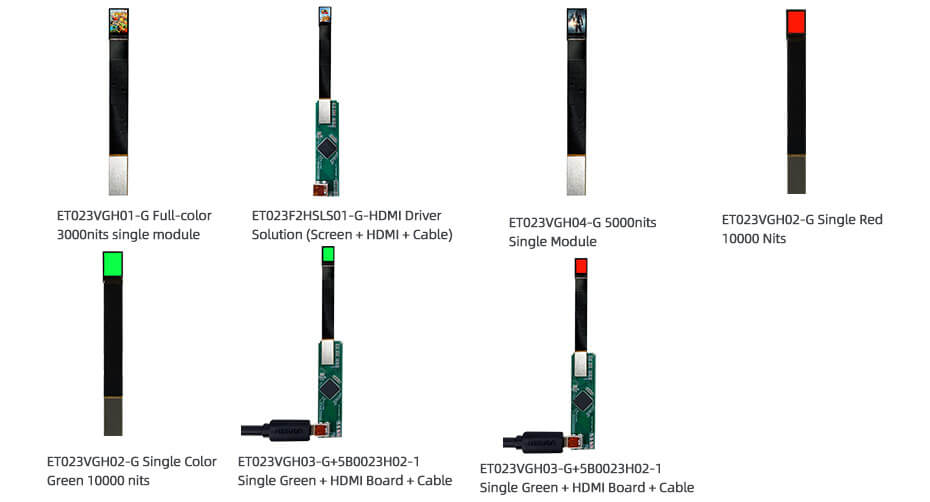

0.23 Inch Micro OLED Display Solution For Reference

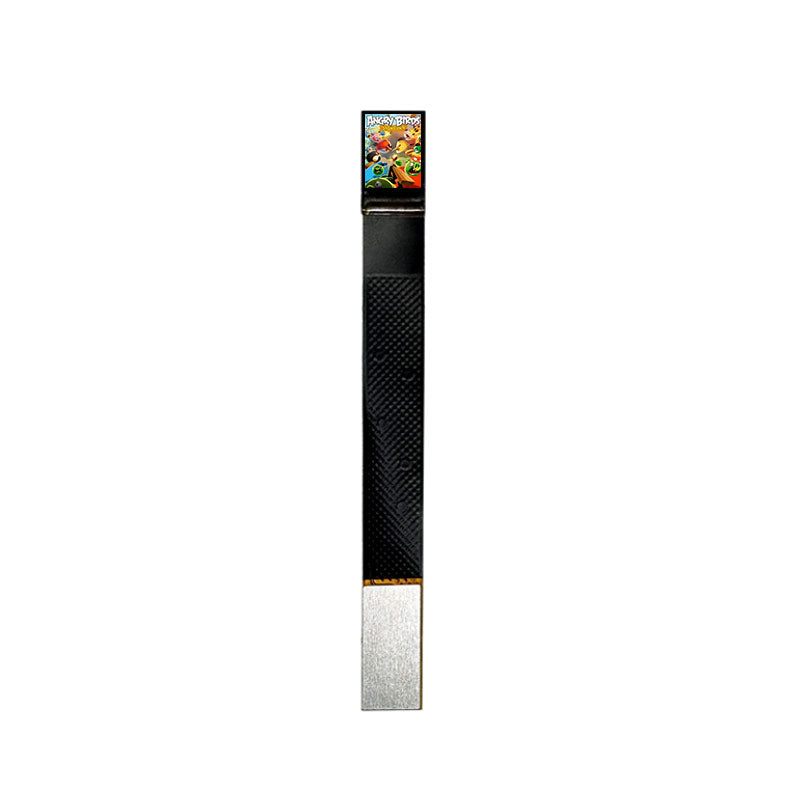

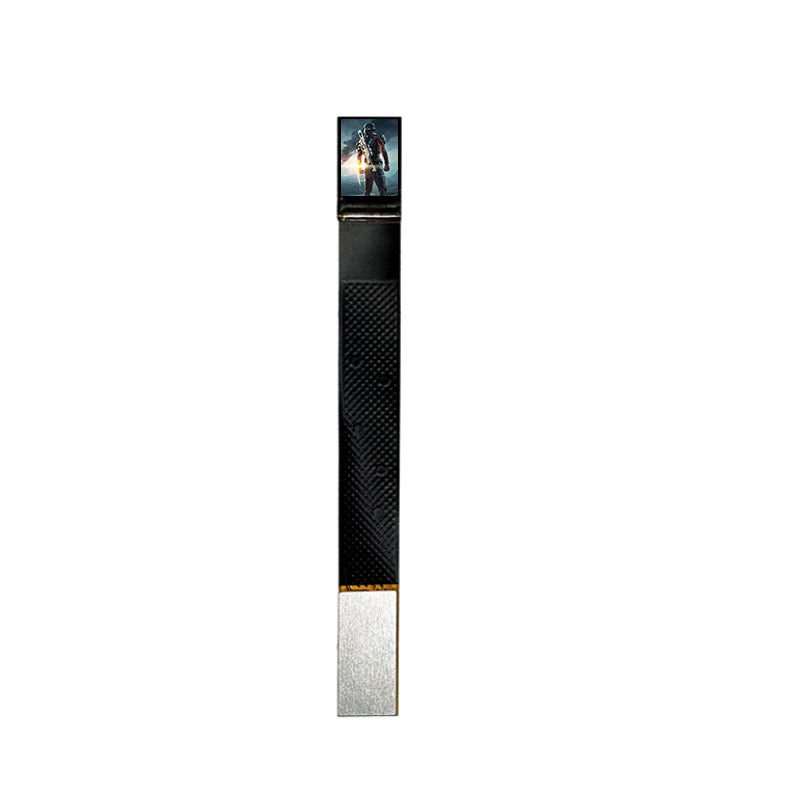

ET023VGH01-G Full Color 3000nits Module

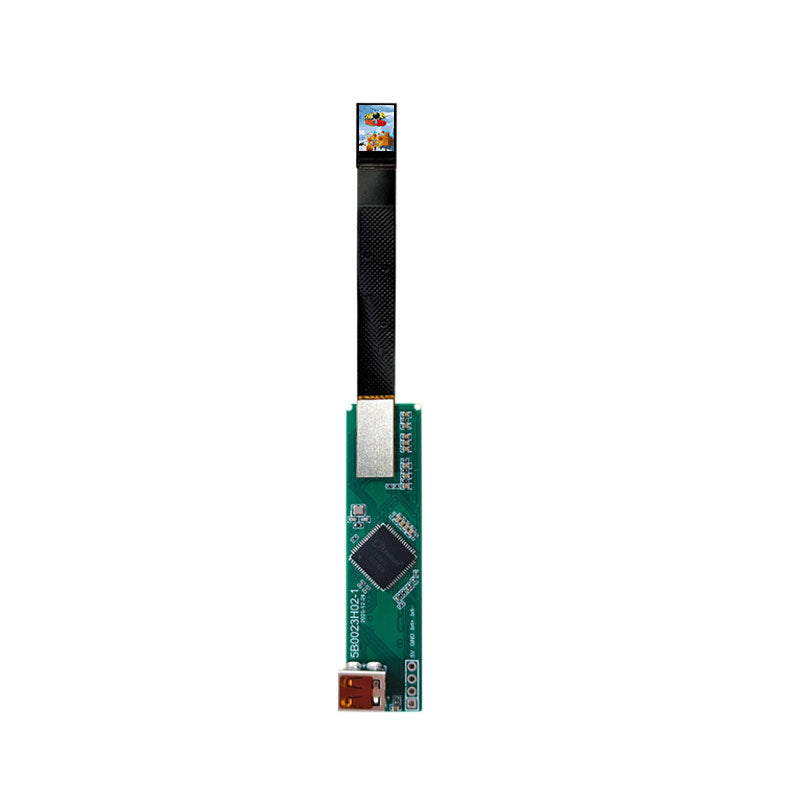

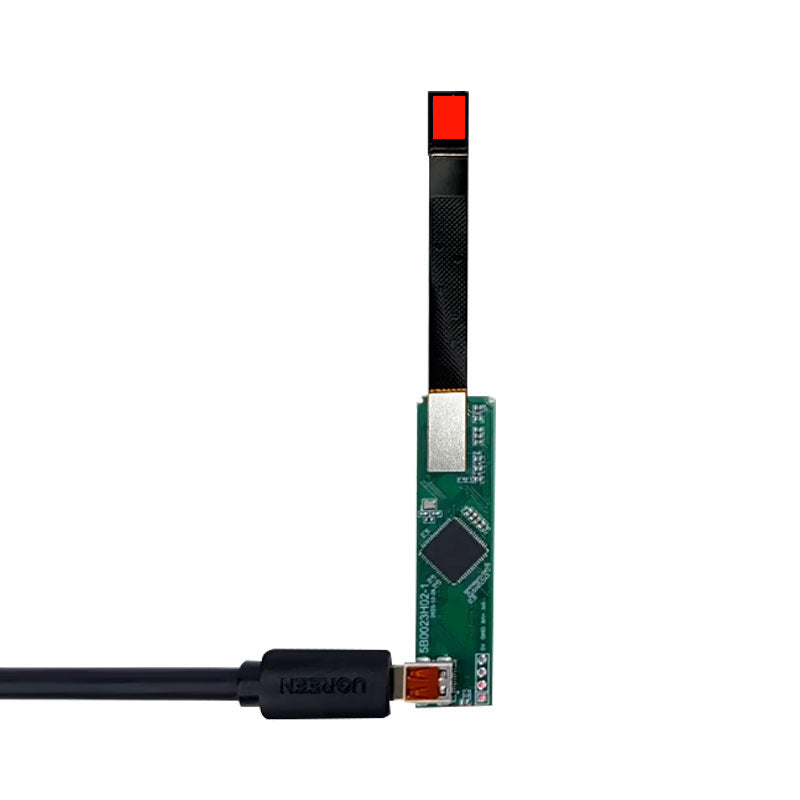

ET023F2HSLS01-G-HDMI Driver Solution(display+HDMI+Cable)
ET023VGH04-G 5000nits Module

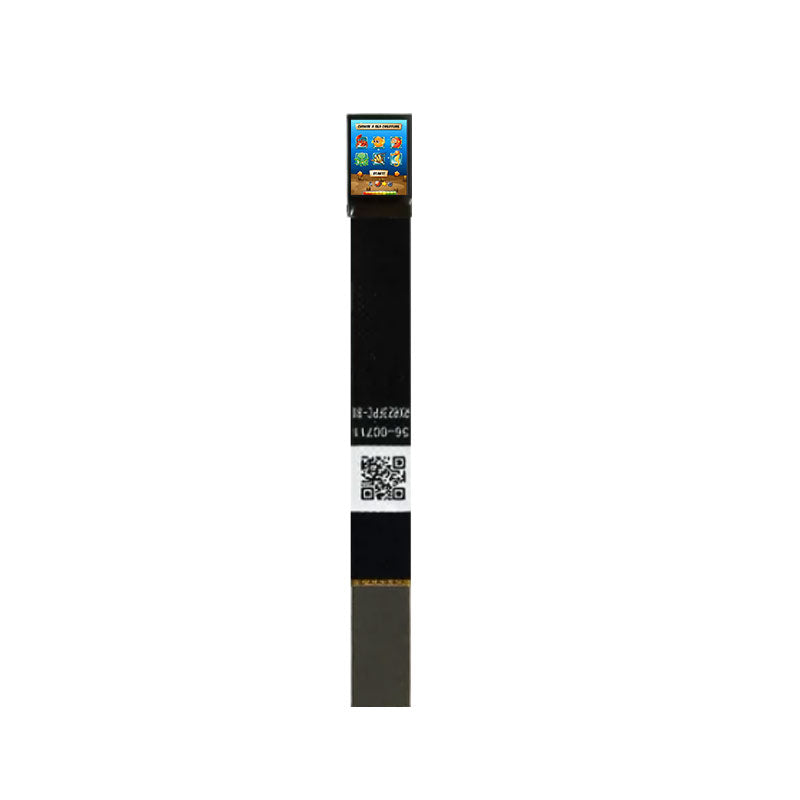

ET023VGH02-G single red color 10000nits

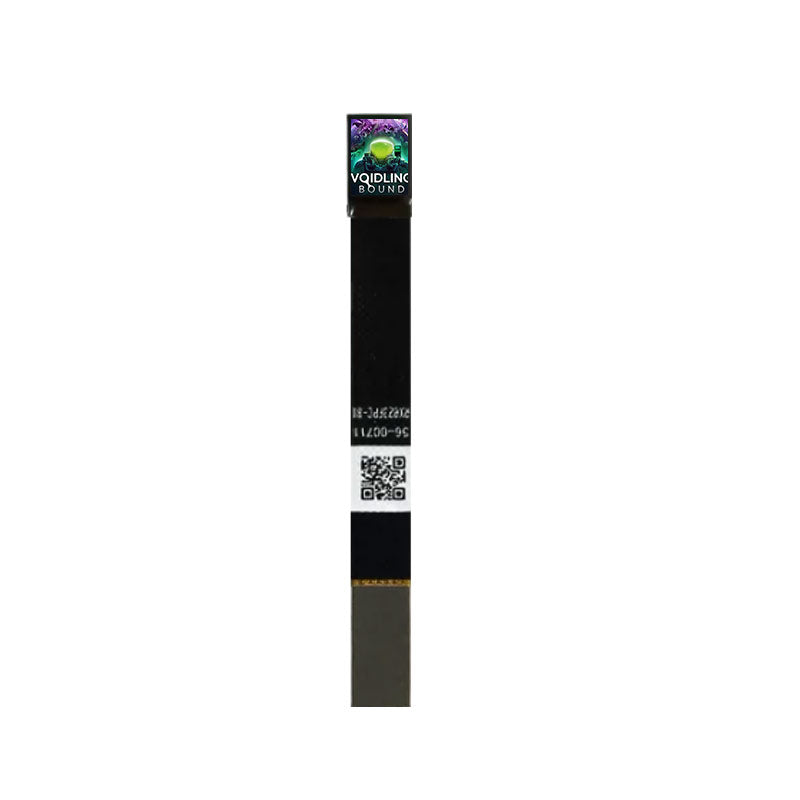

ET023VGH03-G single green color 10000nits
ET023VGH03-G+5B0023H02-1 single green+HDMI+Cable
ET023VGH02-G+5B0023H02-1 single red+HDMI+Cable

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
