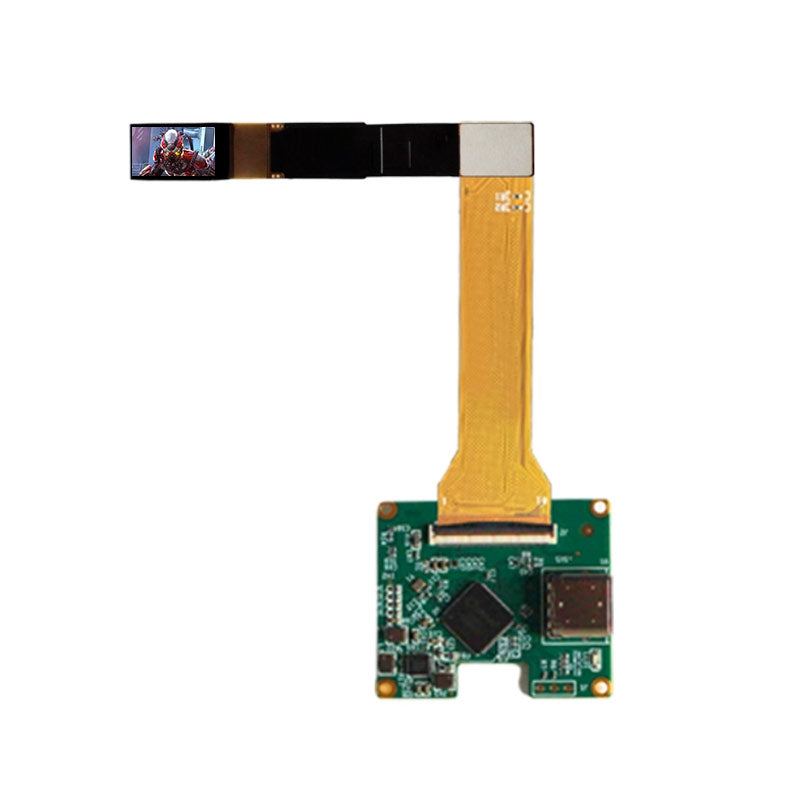

0.49 Inch Micro OLED Display 1920×1080 MIPI 1800nits High Brightness OLED Display With Type-c Driver Board For EVF AR Red Dot Sight Display Solutions Overview

ET049F1TSLS02-G is a 0.49-inch diagonal Si-OLED micro display designed for high-performance near-eye display applications. It supports 1920×1080 (FHD) resolution with a 16:9 aspect ratio, delivering ultra-high pixel density for sharp and detailed image performance. Featuring an active area of 10.78(W) × 6.07(H) mm, the display adopts a MIPI interface for high-speed signal transmission and stable integration. With a high brightness of 1800 cd/m², it ensures excellent visibility even under strong ambient light conditions. Built for demanding environments, it supports an operating temperature range of -20°C to 70°C and storage temperatures from -40°C to 80°C. Combined with a Type-C driver board, the ET049F1TSLS02-G is an ideal display solution for EVF (Electronic Viewfinder), AR devices, and Red Dot Sight applications.

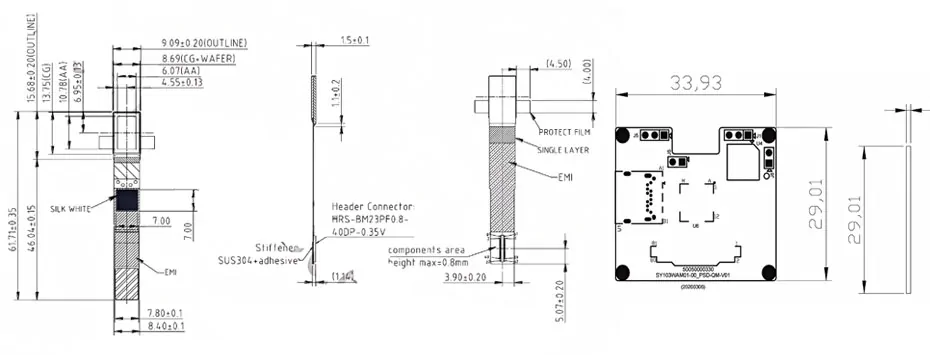

0.49 Inch Micro OLED Display 1920×1080 MIPI 1800nits High Brightness OLED Display With Type-c Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection


Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
