1.02 Inch Flexible E Ink Display 128x80 Ultra-Thin Electronic Paper Display

1.02 Inch Flexible E Ink Display 128x80 Ultra-Thin Electronic Paper Display

$6.04 USD
$6.04 USD
Sale Sold out
1.02 Inch E Ink Display Solution
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

Electronic Paper Display
1.02 Inch Flexible E Ink Display 128x80 Ultra-Thin Electronic Paper Display Overview

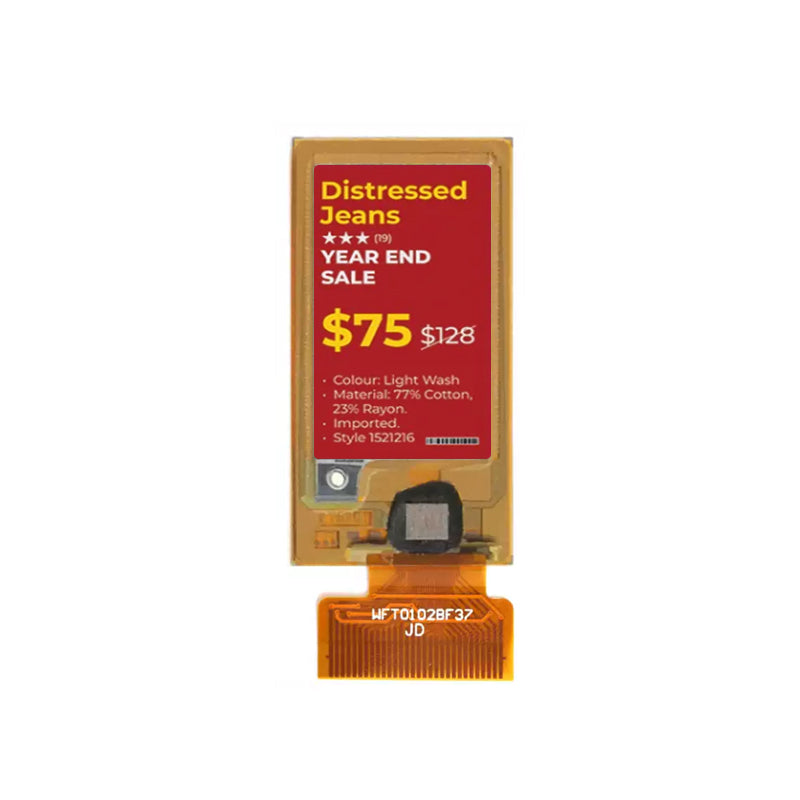

ET010EPFL01-J is a 1.02 inch diagonal flexible E-Ink E-Paper (EPD) display module featuring an ultra-thin design and advanced electronic ink technology for lightweight, low-power display applications. ET010EPFL01-J supports a 128×80 resolution with a compact flexible structure, delivering clear text, icons, symbols, and graphics for applications such as smart labels, wearable devices, IoT products, portable instruments, and electronic tags. The module adopts a 30-pin interface for system integration and reliable communication. It features an active area of 21.76(W) × 14.00(H) mm, an outline dimension of 32.57(W) × 18.6(H) × 0.3(D) mm, and operates reliably within a 0°C to 50°C operating temperature range, with a storage temperature of -25°C to 70°C. Designed without a touch panel, the ET010EPFL01-J provides a paper-like viewing experience with high contrast, wide viewing angle performance, and bistable display characteristics, making it an ideal ultra-thin flexible display solution for battery-powered applications requiring lightweight design, long service life, and minimal power consumption.
1.02 Inch Flexible E Ink Display 128x80 Ultra-Thin Electronic Paper Display

ET010EPFL01-J  Specification

Part No. ET010EPFL01-J Size 1.02″ inch
Resolution 128 × 80 Panel Interface 30 pin

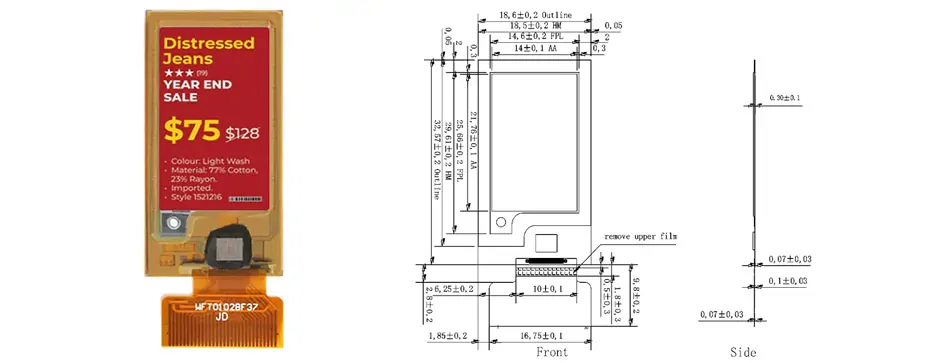

Display Mode EPD Outline Dimension 32.57 × 18.6 × 0.3 mm
Active Area 21.76 × 14 mm Viewing Angle L/R/U/D /
Brightness (cd/m²) / Operation / Storage Temp 0~50°C / -25~70°C
Touch No Display Type Electronic Paper Display (EPD)

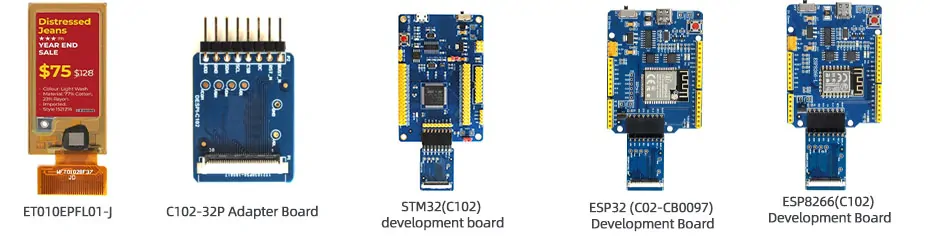

1.02 Inch E Ink Display Solution For Reference
ET010EPFL01-J

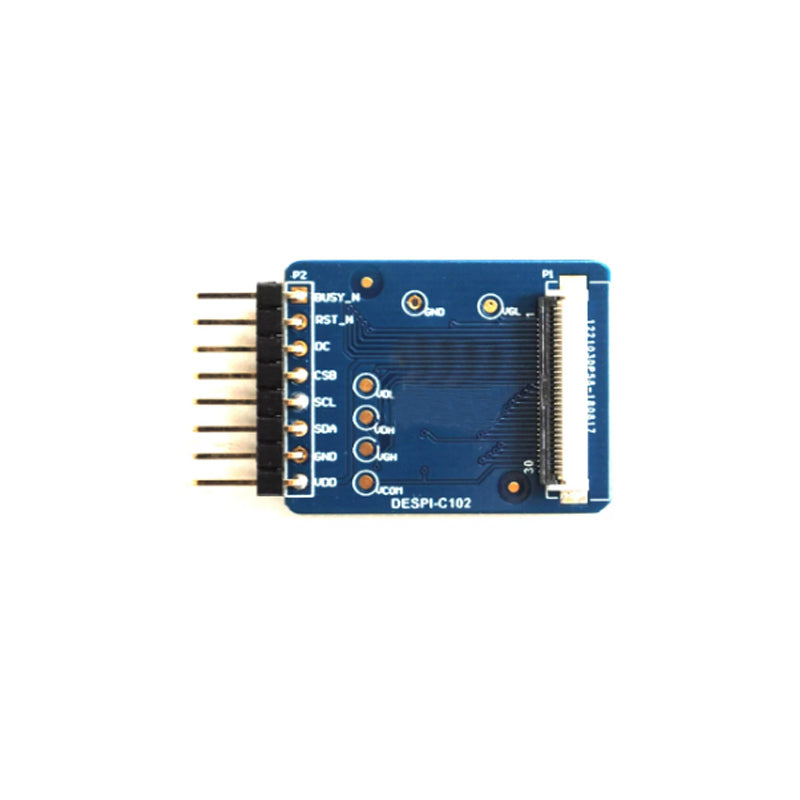

C102-32P Adapter Board

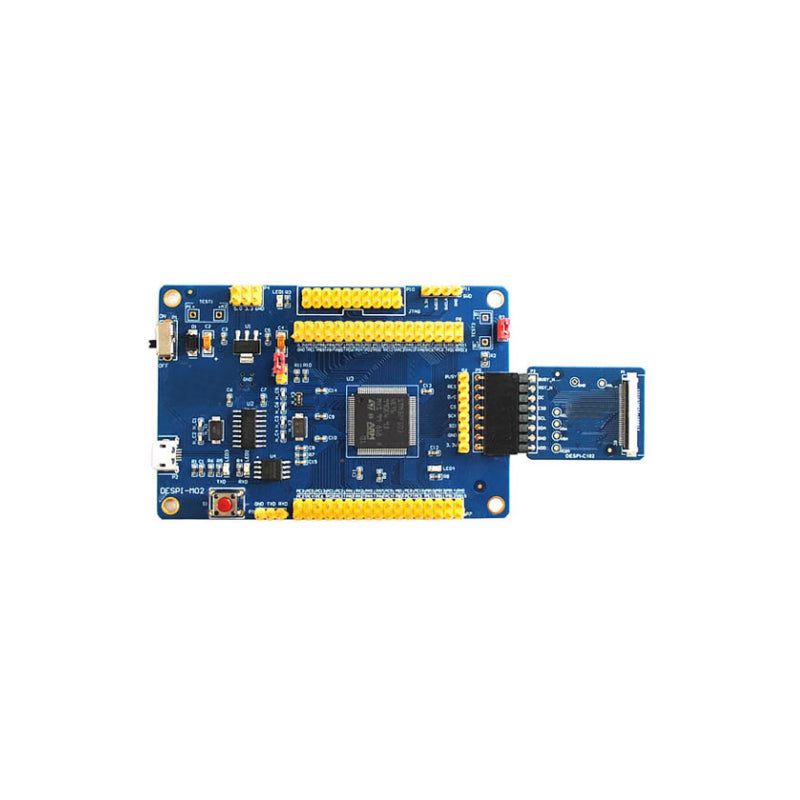

STM32(C102) development board

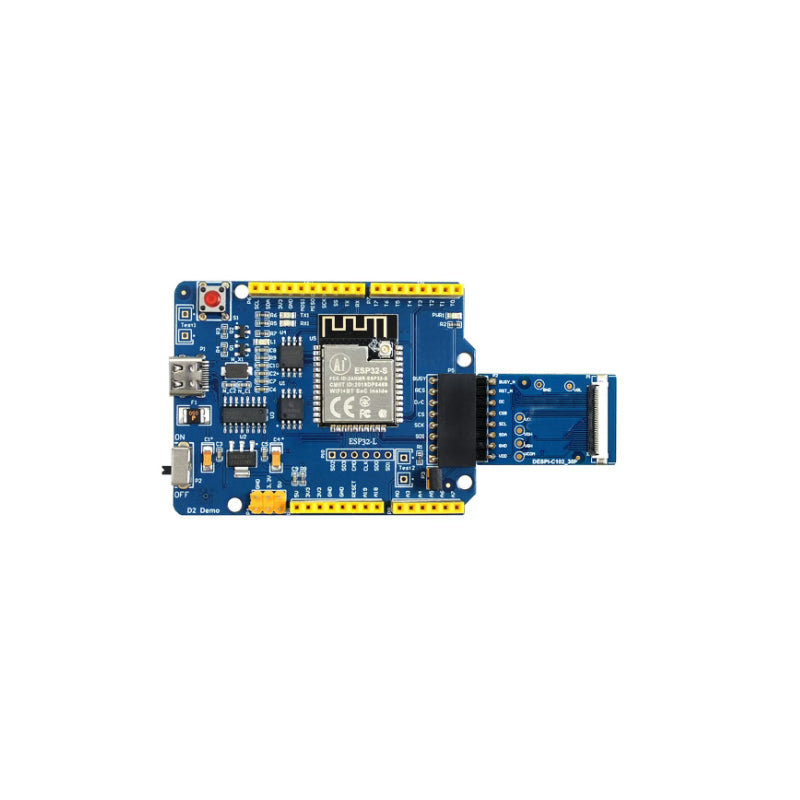

ESP32 (C02-CB0097) Development Board

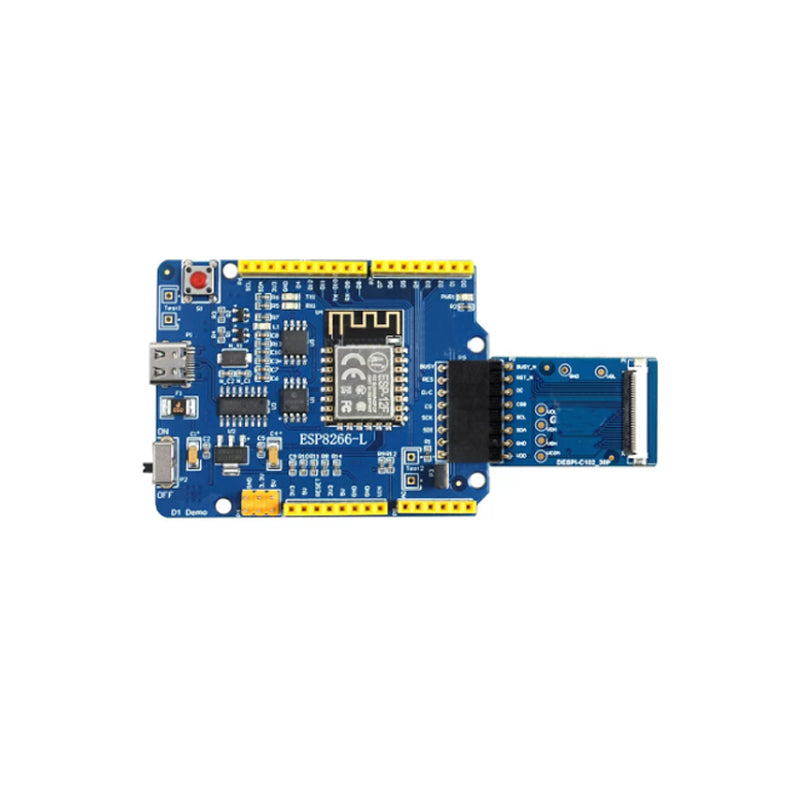

ESP8266(C102) Development Board
1.02 Inch Flexible E Ink Display 128x80 Ultra-Thin Electronic Paper Display

Features For Youritech E-Paper Display
Features For Youritech E-Paper Display
Color E-Paper Module Features_07

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

Applications For Youritech E-Paper Display

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
Youritech E-Paper Display R&D & Manufacturing Capabilities

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
