1.04 Inch Round AMOLED Display LTPS QSPI On-Cell Capacitive Touch OLED Display

1.04 Inch Round AMOLED Display LTPS QSPI On-Cell Capacitive Touch OLED Display

$21.29 USD
$21.29 USD
Sale Sold out
ET010AM01-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


1.04 Inch AMOLED Display Overview

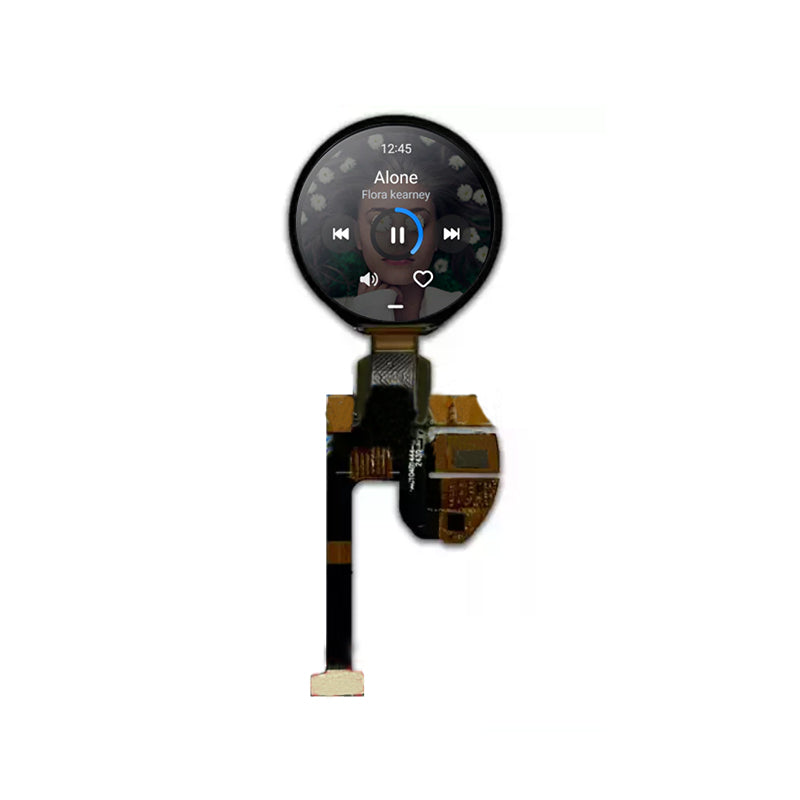

ET010AM01-KT is a compact 1.04-inch round AMOLED display featuring a 340×340 resolution and a QSPI interface for efficient data transmission. With 16.7 million colors and a 100% color gamut, this display delivers vivid colors and detailed visuals. Its 630 cd/m² brightness, 100,000:1 contrast ratio, and full viewing angles ensure clear images with deep blacks and consistent picture quality from different directions. The AMOLED panel has a slim profile, measuring 29.25 × 30.00 × 0.68 mm, with a display area of 26.35 × 26.35 mm. Driven by the CO5300 controller, it integrates on-cell capacitive touch functionality with a CST9217 touch controller, enabling responsive touch interaction in a compact design. The module features a 24-pin plug-in connection and operates at 3.3 V. It supports an operating temperature range of -10°C to +60°C and a storage temperature range of -20°C to +70°C. This 1.04-inch round AMOLED display is suitable for smartwatches, wearable electronics, compact control panels, and other applications requiring a circular screen with high image quality and integrated touch functionality.

Model ET010AM01-KT 1.04 Inch Round AMOLED Display LTPS QSPI On-Cell Capacitive Touch OLED Display
Size 1.0" Touch Yes
Touch Type Capacitive touch Display Mode AMOLED
Display Colors 16.7M Color Gamut 100%
Response Time -- Resolution 340x340
Dot Pitch 0.0775(H)*0.0775(V) Viewing Angle All viewing angle
Driver IC CO5300 Outline Dimension 29.25*30.00*0.68mm
Active Area -- Dot Area 26.35*26.35mm
Brightness 630cd/m² Contrast Ratio 100000:1
Interface QSPI Pin Count 24
Pin Pitch -- Touch Interface Oncell
Touch IC CST9217 Connection Type Plug-in type
Operating Voltage 3.3V Operating Life --
Operating Temperature -10°C~+60°C Storage Temperature -20°C~+70°C

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.

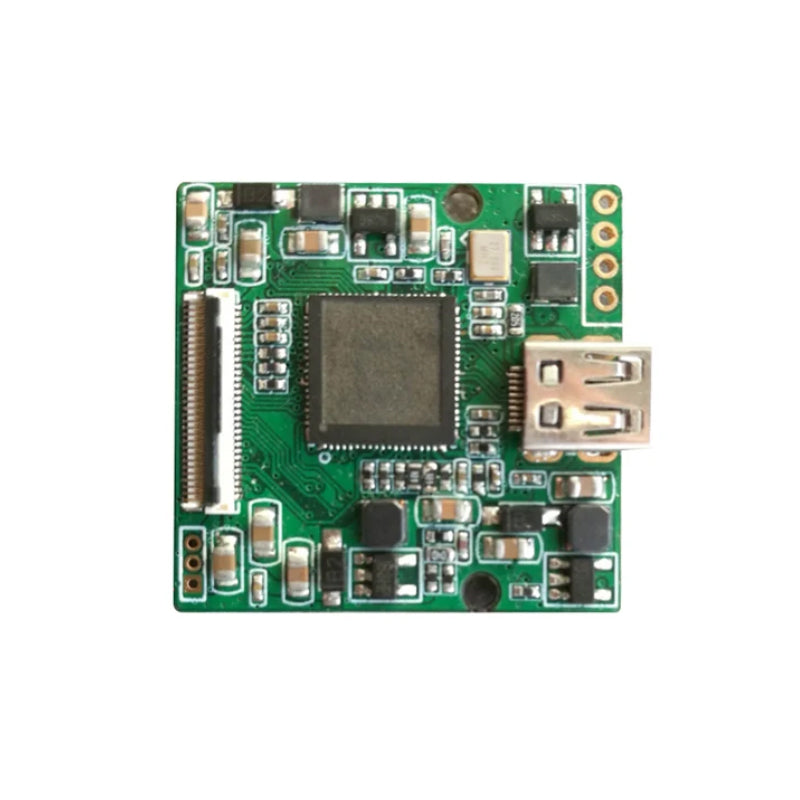

The demo board is a development tool for quickly lighting up and evaluating a display.
