1.32 Inch Circular AMOLED Display 466x466 QSPI With Touch OLED Display

1.32 Inch Circular AMOLED Display 466x466 QSPI With Touch OLED Display

$0.00 USD
$0.00 USD
Sale Sold out
ET013AM01-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


1.32 Inch AMOLED Display Overview

ET013AM01-KT is a 1.32-inch AMOLED display module featuring a resolution of 466 × 466 pixels with a square display format. In terms of mechanical specifications, it features an active area of 33.55(W) × 33.55(H) mm, a visible area of 33.75(W) × 33.75(H) mm, and an outline dimension of 40.30(W) × 40.30(H) × 0.80(D) mm. Its pixel pitch is 0.078(H) × 0.078(V) mm.ET013AM01-KT provides a typical brightness of 600 cd/m² and a contrast ratio of 100000:1, delivering vivid colors and deep blacks. It supports a full viewing angle for consistent image quality from different viewing directions and offers a 100% color gamut for rich color reproduction. The display supports 16.7M colors and uses self-emissive AMOLED technology, allowing each pixel to emit its own light for high contrast and vibrant images. It is driven by the CO5300 driver IC and uses a QSPl interface with a 24-pin connection. The module also integrates capacitive touch functionality with a CST820 on-cell touch controller. With a plug-in connection, a 3.3V operating voltage, and a typical service life of 30,000 hours, ET013AM01-K is suitable for smartwatches, wearable devices, compact smart hardware, and other applications requiring a small, high-resolution circular-style display with touch functionality. It operates at temperatures from -20°C to +60°C and can be stored at temperatures from -30°C to +70°C.
Product Specifications – ET013AM01-KT
Parameter Specification Parameter Specification
Model Number ET013AM01-KT Display Size 1.32 inch
Display Mode AMOLED Resolution 466 × 466
Display Colors 16.7M Color Gamut 100%
Pixel Pitch 0.078(H) × 0.078(V) mm Viewing Angle Full Viewing Angle
Brightness 600 cd/m² Contrast Ratio 100000:1
Driver IC CO5300 Display Interface QSPl
Pin Count 24 pins Touchscreen Yes
Touch Type Capacitive Touch Touch Controller IC CST820 (On-cell)
Connector Type Plug-in Operating Voltage 3.3 V
Outline Dimensions 40.30 × 40.30 × 0.80 mm Visible Area 33.75 × 33.75 mm
Active Area 33.55 × 33.55 mm Service Life 30,000 hours
Operating Temperature -20°C to +60°C Storage Temperature -30°C to +70°C



AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.

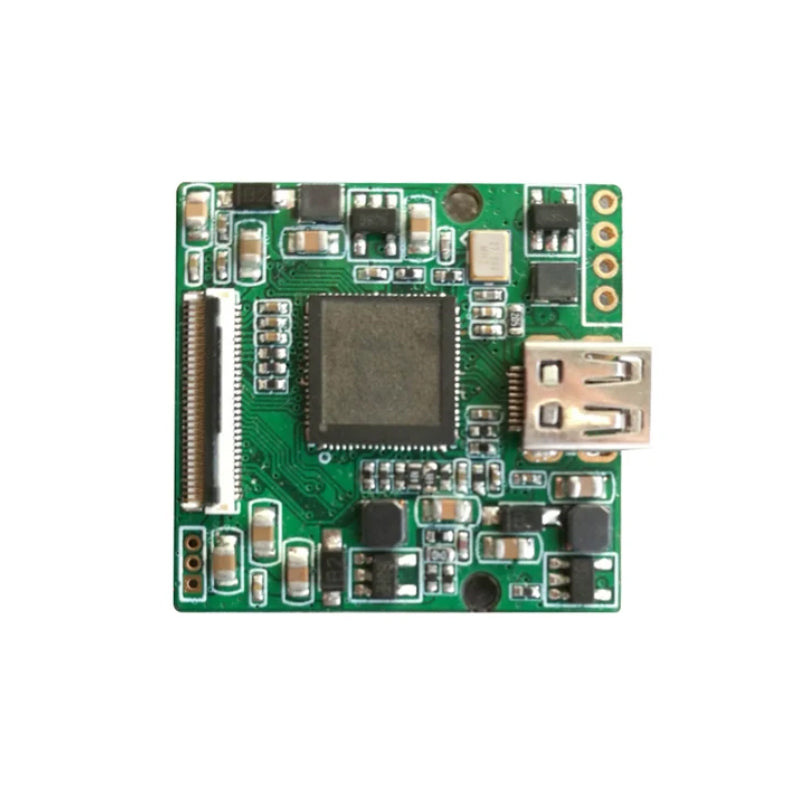

The demo board is a development tool for quickly lighting up and evaluating a display.
