1.4 Inch Round AMOLED Display MIPI LTPS IPS OLED Display with Capacitive Touch

1.4 Inch Round AMOLED Display MIPI LTPS IPS OLED Display with Capacitive Touch

$8.09 USD
$8.09 USD
Sale Sold out
ET021AM02-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


1.4 Inch AMOLED Display Overview

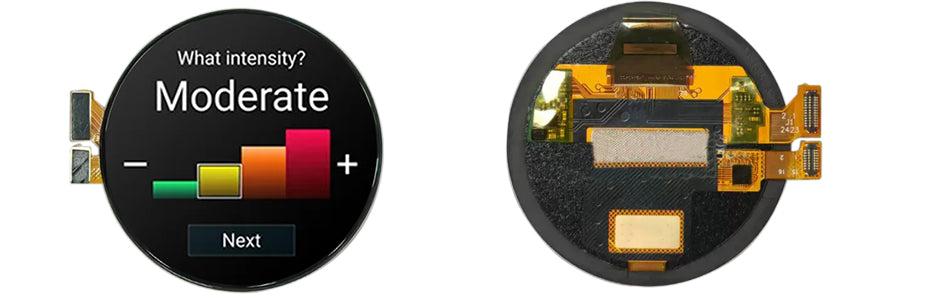

ET021AM02-KT is a 1.4-inch round AMOLED display featuring a 454×454 resolution and a MIPI interface. Designed for compact electronic devices, it delivers clear image details with a 600 cd/m² brightness and full viewing angles for consistent visual performance from different directions. The circular display has an active display area of 35.41 × 35.41 mm and an overall outline dimension of 44.30 × 44.30 × 2.46 mm. It integrates capacitive touch functionality with a CST916E touch controller, providing convenient and responsive touch interaction. Driven by the CH13613 controller, the module features a 24-pin plug-in connection and operates at 3.3 V. With a service life of 30,000 hours, an operating temperature range of -10°C to +60°C, and a storage temperature range of -20°C to +70°C, this 1.4-inch round AMOLED display is suitable for smartwatches, wearable devices, portable electronics, and other applications requiring a compact circular screen with integrated touch functionality.

Model ET021AM02-KT 1.4 Inch Round AMOLED Display MIPI LTPS IPS OLED Display with Capacitive Touch
Size 1.4" Touch Yes
Touch Type Capacitive touch Display Mode AMOLED
Display Colors   Color Gamut --
Response Time - Resolution 454x454
Dot Pitch 0.078(H)*0.078(V) Viewing Angle All viewing angle
Driver IC CH13613 Outline Dimension 44.30*44.30*2.46mm
Active Area 35.81*35.81mm Dot Area 35.41*35.41mm
Brightness 600cd/m² Contrast Ratio
Interface MIPI Pin Count 24
Pin Pitch -- Touch Interface -
Touch IC CST916E Connection Type Plug-in type
Operating Voltage 3.3V Operating Life 30000h
Operating Temperature -10°C~+60°C Storage Temperature -20°C~+70°C

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?

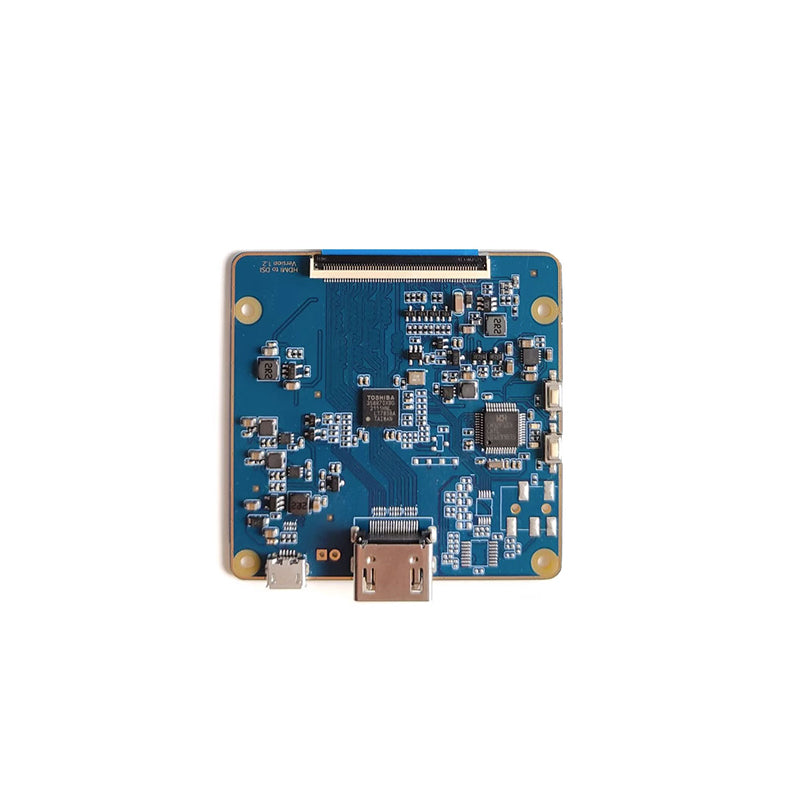

The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
