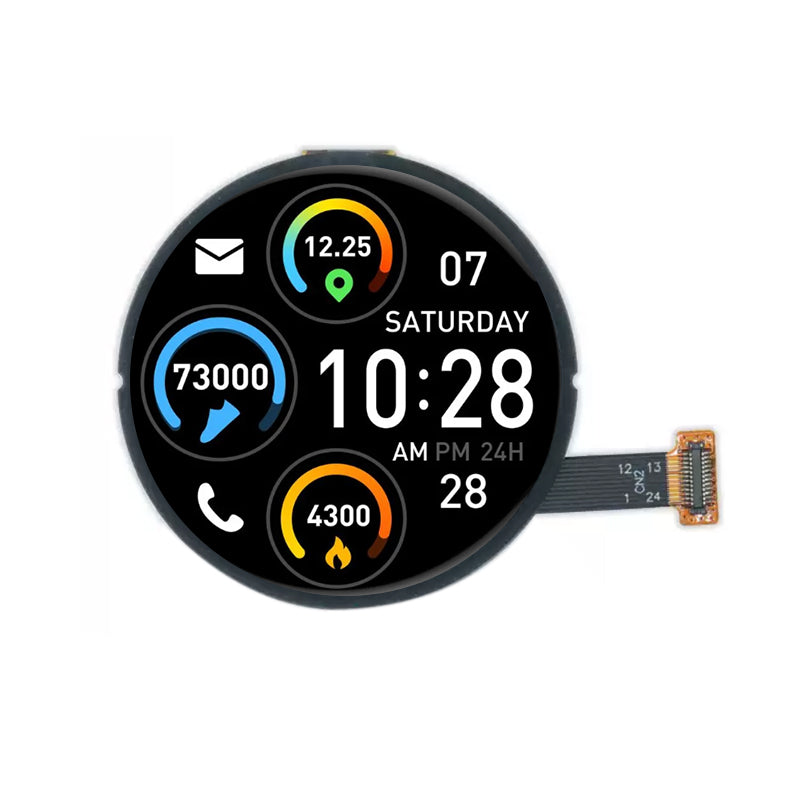

1.43 Inch Round AMOLED Display 466×466 LTPS High Brightness OLED Screen with On-cell Touch Cover

1.43 Inch Round AMOLED Display 466×466 LTPS High Brightness OLED Screen with On-cell Touch Cover

$18.08 USD
$18.08 USD
Sale Sold out
ET014AM02-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


1.43 Inch AMOLED Display Overview
ET014AM02-KT supports a display resolution of 466×466 with a round display area, delivering clear images and vivid colors. As for mechanical details, it features an active area of 36.35(W)×36.35(H) mm, a viewing area of 36.55(W)×36.55(H) mm, and an outline size of 40.86(W)×51.97(H)×2.76(D) mm. ET014AM02-KT provides 800 cd/m² display brightness, a 100000:1 contrast ratio, a full viewing angle, and a 100% color gamut. It supports a palette of 16.7 million colors, producing rich colors and deep blacks. This product is a self-emissive AMOLED display featuring LTPS technology, with high brightness for clear and vivid visual performance. ET014AM02-KT integrates an on-cell capacitive touch panel with a CST820 touch controller and utilizes QSPI as its signal input interface, driven by the CO5300 display driver IC. It operates at a typical voltage of 3.3V and features a solder-type connection with 24 pins. Designed for reliable operation, it offers a service life of up to 30000 hours, an operating temperature range of -20°C to +70°C, and a storage temperature range of -30°C to +80°C.

Model ET014AM02-KT  1.43 Inch Round AMOLED Display 466×466 LTPS High Brightness OLED Screen with On-cell Touch Cover
Size 1.43" Touch Yes
Touch Type On-cell touch Display Mode AMOLED
Display Colors 16.7M Color Gamut 100%
Response Time -- Resolution 466×466
Dot Pitch 0.078 (H)*0.078 (V) Viewing Angle All viewing angle
Driver IC CO5300 Outline Dimension 40.86*51.97*2.76 mm
Active Area 36.55*36.55 mm Dot Area 36.35*36.35 mm
Brightness 800 cd/m² Contrast Ratio 100000:1
Interface QSPI Pin Count 24
Pin Pitch -- Touch Interface Oncell
Touch IC CST820 Connection Type Solder type
Operating Voltage 3.3 V Operating Life 30000h
Operating Temperature -20°C ~ +70°C Storage Temperature -30°C ~ +80°C


AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

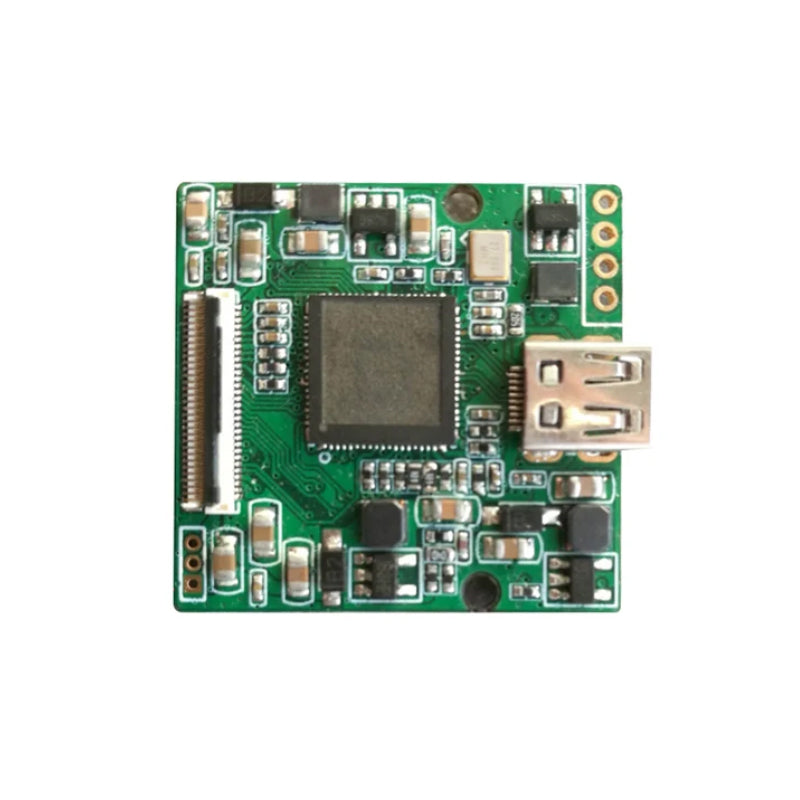

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
