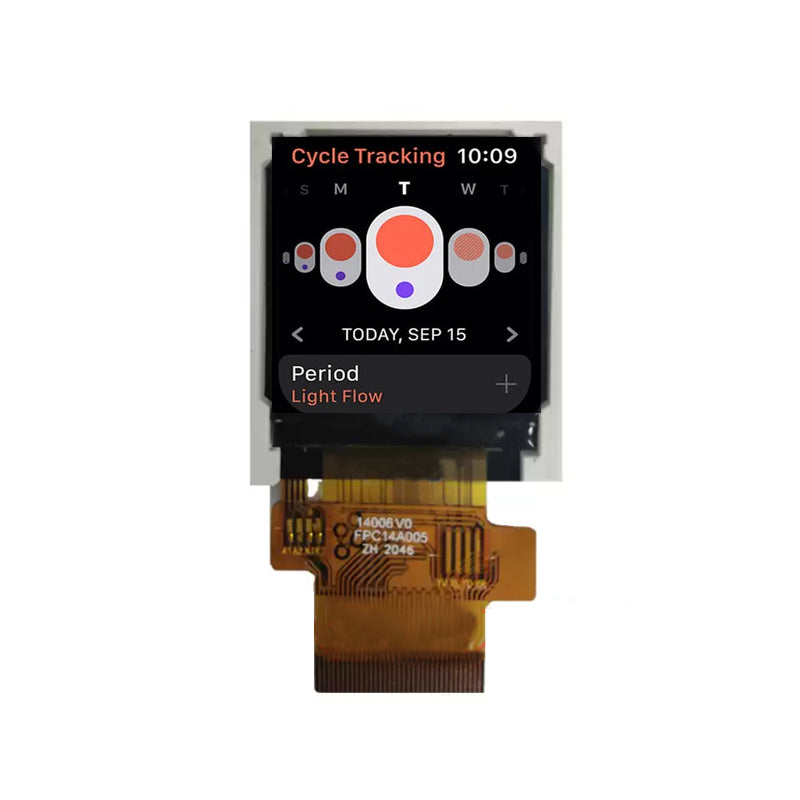

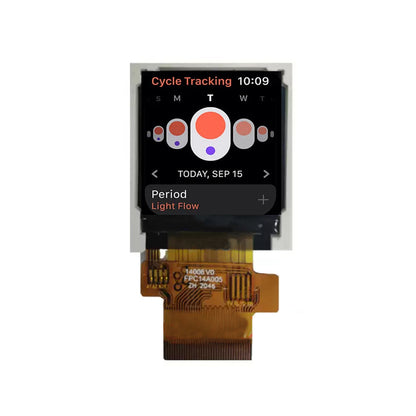

1.44 Inch TFT LCD Display 128×128 SPI High Brightness Sunlight Readable Color LCD Display

1.44 Inch TFT LCD Display 128×128 SPI High Brightness Sunlight Readable Color LCD Display

$4.84 USD
$4.84 USD
Sale Sold out
ET014QQ02-K
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


1.44 Inch Square Display Overview
ET014QQ02-K supports a display resolution of 128×128 with a square aspect ratio of 1:1 (W:H), delivering clear images and vivid colors. As for mechanical details, it features an active area of 25.5(W)×26.5(H) mm, a viewing area of 26.3(W)×27.3(H) mm, and an outline size of 32.36(W)×38.00(H)×3.00(D) mm. ET014QQ02-K provides 950 cd/m² display brightness, a 1000:1 contrast ratio, and a full viewing angle, ensuring excellent visibility even in bright outdoor environments. The display supports 262K colors with 6-bit color depth and adopts TFT technology with a normally black, transmissive display mode. It utilizes the ST7735S driver IC and supports 8/16-bit MCU and 3/4-line serial interfaces, with a typical power supply voltage of 3.3V. The module features 35 pins with a 0.5 mm pitch and a white LED backlight consisting of 2 LEDs, operating at 2.8–3.4V and 40mA, with a typical lifetime of 50,000 hours. It supports an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C.

Model ET014QQ02-K  1.44 Inch TFT LCD Display 128×128 SPI High Brightness Sunlight Readable Color LCD Display
Size 1.44 inch Touch No
Display Mode TFT Display Color 262K(6bit)
Resolution 128×128 Dot Pitch 0.1992(H)*0.207(V)
Viewing Angle All viewing angle Driver IC ST7735S
Display Type Transmissive, Normally Black Outline Dimension 32.36*38.00*3.00mm
Active Area 26.3*27.3mm Dot Area 25.5*26.5mm
Brightness 950cd/m² Contrast Ratio 1000
Interface 8/16-bit MCU
3/4-wire serial		 Pin Count 35
Pin Pitch 0.5mm Connection Type Plug-in type
Operating Voltage 3.3V Backlight White LED
Backlight Circuit 2 LEDs, Vled=2.8-3.4V, Iled=40mA Operating Life 50000h
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃


YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.

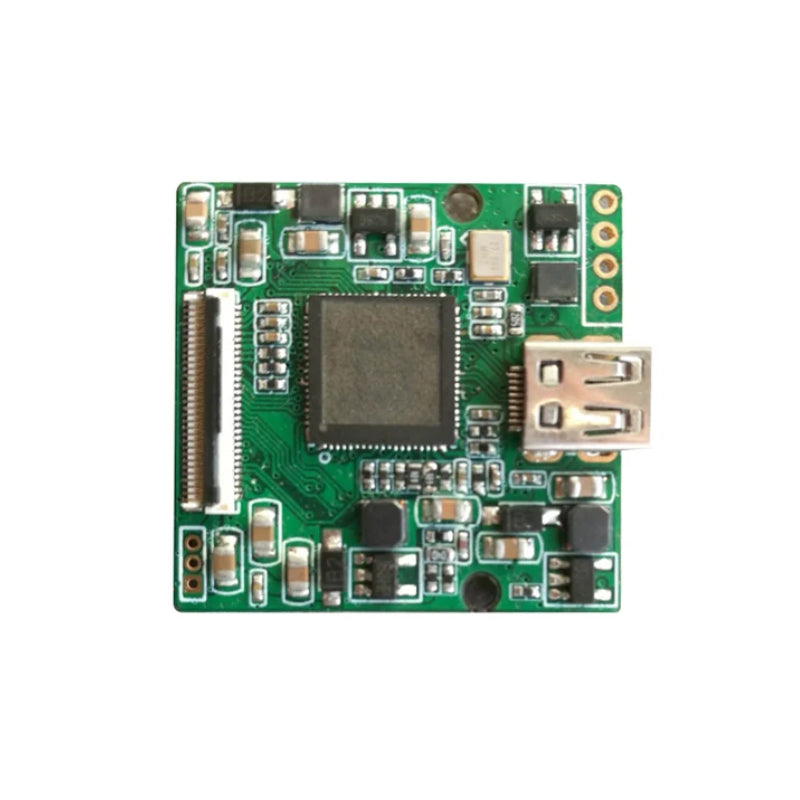

The demo board is a development tool for quickly lighting up and evaluating a display.
