1.44 Inch TFT LCD Display 128×128 ST7735S Driver IC Square LCD Display

1.44 Inch TFT LCD Display 128×128 ST7735S Driver IC Square LCD Display

$4.66 USD
$4.66 USD
Sale Sold out
ET014QQ03-K
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

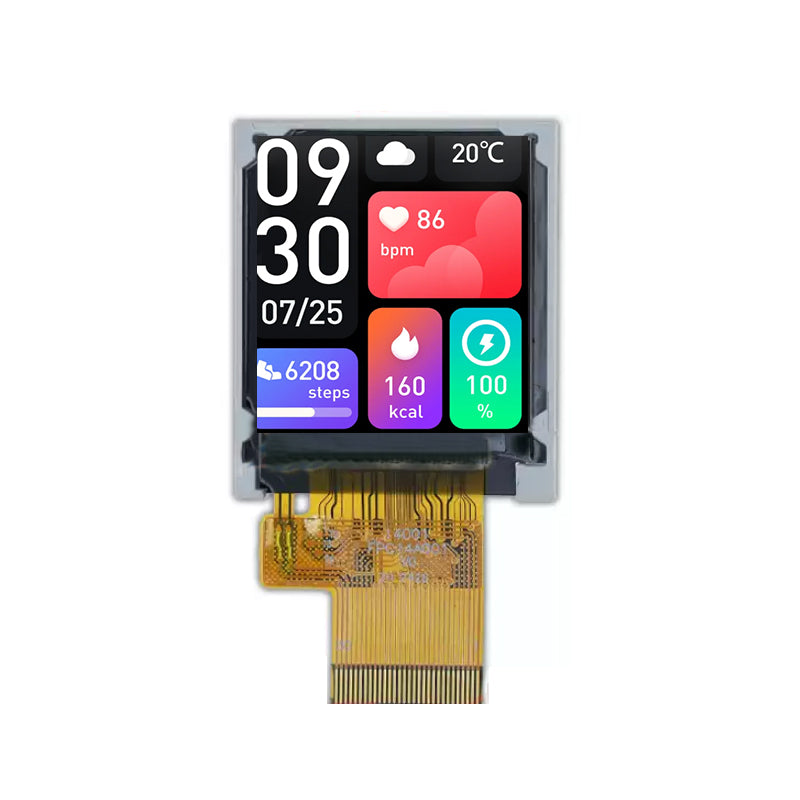

1.44 Inch Square Display Overview
ET014QQ03-K supports a display resolution of 128×128 with a square aspect ratio of 1:1 (W:H), delivering clear images and stable color reproduction. As for mechanical details, it features an active area of 25.50(W)×26.50(H) mm and an outline size of 32.36(W)×38.00(H)×2.60(D) mm. ET014QQ03-K provides 200 cd/m² display brightness, a 700:1 contrast ratio, and a 6 o'clock viewing direction. The display supports 65K colors and adopts TFT technology with a normally white, transmissive display mode. It utilizes the ST7735S driver IC and supports 8/16-bit MCU and 3/4-line SPI interfaces, with a typical power supply voltage of 3.3V. The module features 30 pins with a 0.5 mm pitch and a white LED backlight consisting of 1 LED, operating at 3.2V and 20mA, with a typical lifetime of 50,000 hours. It supports an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C.

Model ET014QQ03-K  1.44 Inch TFT LCD Display 128×128 ST7735S Driver IC Square LCD Display
Size 1.44 inch Touch No
Display Mode TFT Display Color 65K
Resolution 128×128 Dot Pitch 0.1992(H)*0.207(V)
Viewing Angle 6H Driver IC ST7735S
Display Type Transmissive, Normally White Outline Dimension 32.36*38.00*2.60mm
Dot Area 25.50*26.50mm Brightness 200cd/m²
Contrast Ratio 700:1 Interface 8/16-bit MCU
3/4 SPI
Pin Count 30 Pin Pitch 0.5mm
Connection Type Plug-in type Operating Voltage 3.3V
Backlight White LED Backlight Circuit 1 LED, Vled=3.2V, Iled=20mA
Operating Life 50000h Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃


YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.

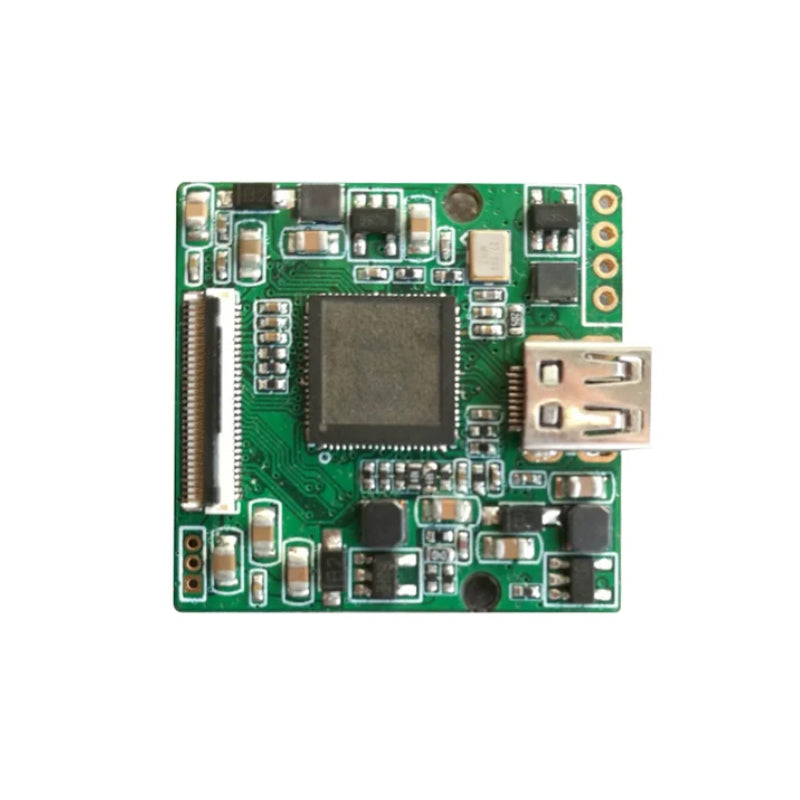

The demo board is a development tool for quickly lighting up and evaluating a display.
