1.54 Inch Flexible E Ink Display Module SPI 200×200 SSD1681 Partial Refresh Electronic Paper Display

Product Introduction

1.54 Inch Flexible E Ink Display Module 200×200 SPI SSD1681 Partial Refresh Electronic Paper Display Overview

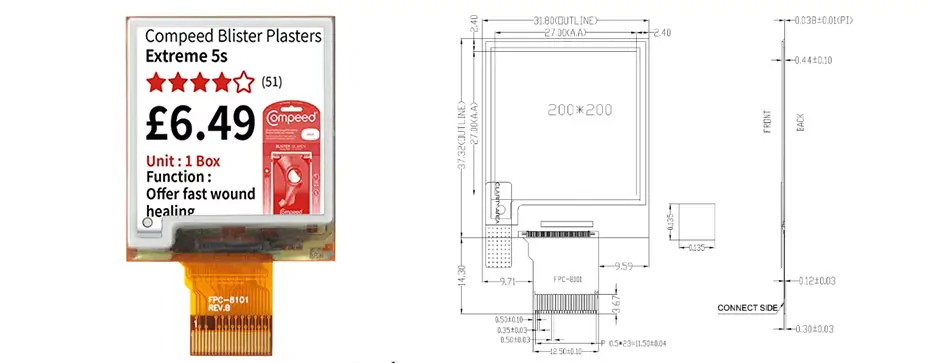

ET015EPFL01-J is a 1.54 inch diagonal flexible E-Ink E-Paper (EPD) display module featuring advanced electronic ink technology with a flexible ultra-thin structure for lightweight and space-constrained applications. ET015EPFL01-J supports a 200×200 resolution and is driven by the SSD1681 controller, providing clear text, icons, symbols, and graphics for applications such as smart wearables, electronic labels, portable devices, IoT products, and industrial instruments. The module adopts an SPI interface for easy system integration and supports partial refresh, enabling faster screen updates while maintaining ultra-low power consumption and the bistable characteristics of E-Paper technology. It features an active area of 27.00(W) × 27.00(H) mm, an outline dimension of 37.32(W) × 31.8(H) × 0.44(D) mm, and operates reliably within a 0°C to 50°C operating temperature range, with a storage temperature of -25°C to 70°C. Designed without a touch panel, the ET015EPFL01-J provides high contrast, wide viewing angle performance, and excellent readability under ambient light, making it an ideal flexible display solution for battery-powered applications requiring ultra-thin design, partial refresh capability, long service life, and minimal power consumption.

1.54 Inch E Ink Display  Specification

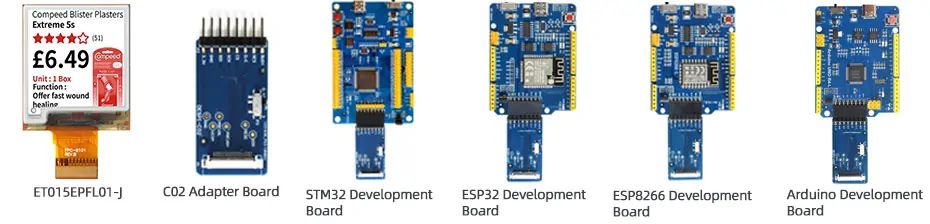

1.54 Inch E Ink Display Solution For Reference

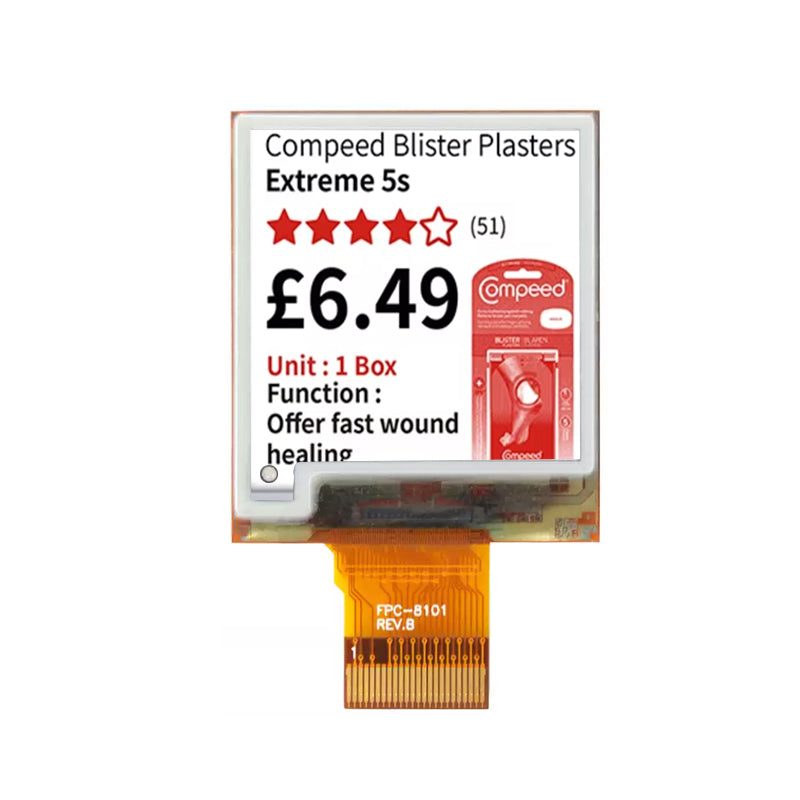

ET015EPFL01-J

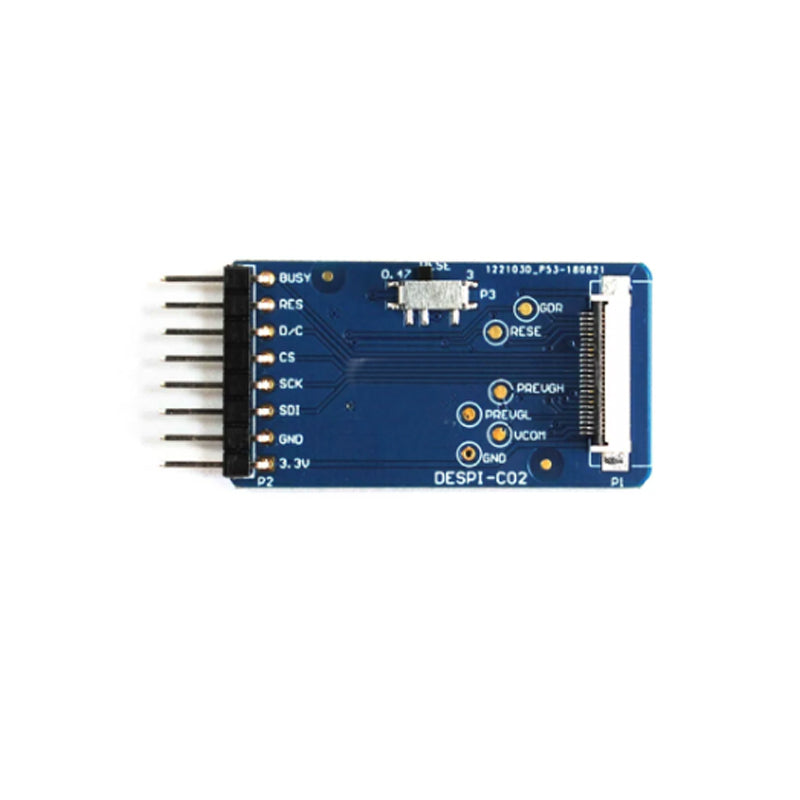

C02 Adapter Board

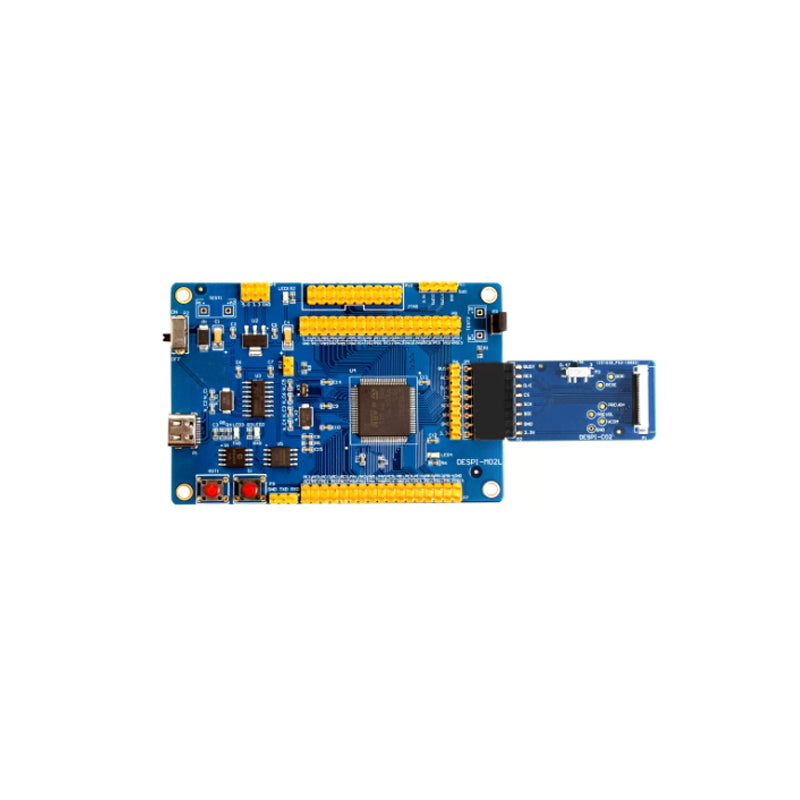

STM32 Development Board

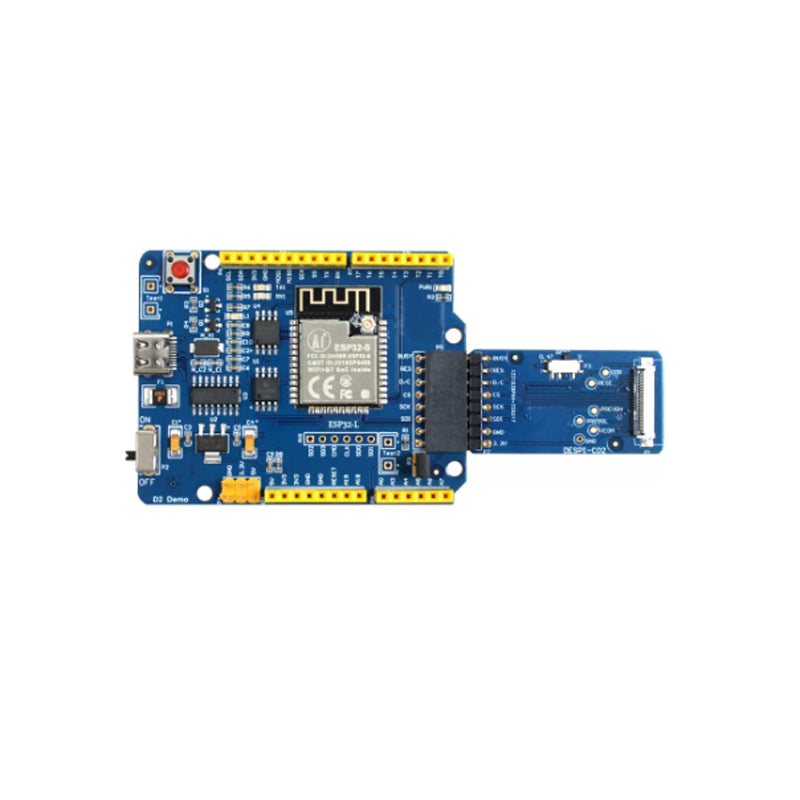

ESP32 Development Board

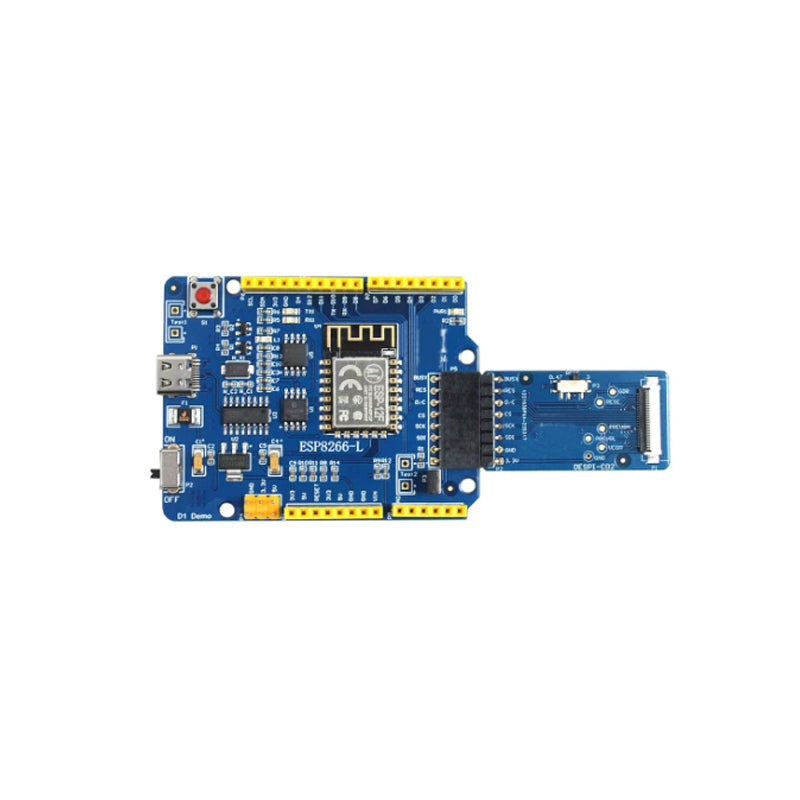

ESP8266 Development Board

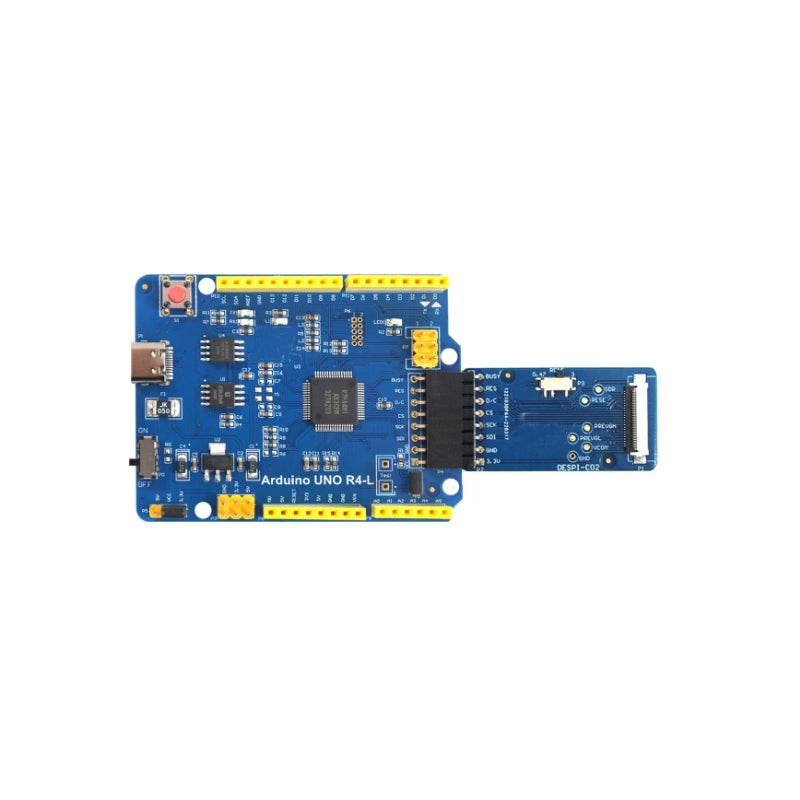

Arduino Development Board

Features For Youritech E-Paper Display

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
