1.54 Inch Monochrome E-Paper Display Module SPI 200×200 E Ink Electronic Paper Display

1.54 Inch Monochrome E-Paper Display Module SPI 200×200 E Ink Electronic Paper Display

$13.21 USD
$13.21 USD
Sale Sold out
1.54 Inch E Ink Display Solution
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

Electronic Paper Display

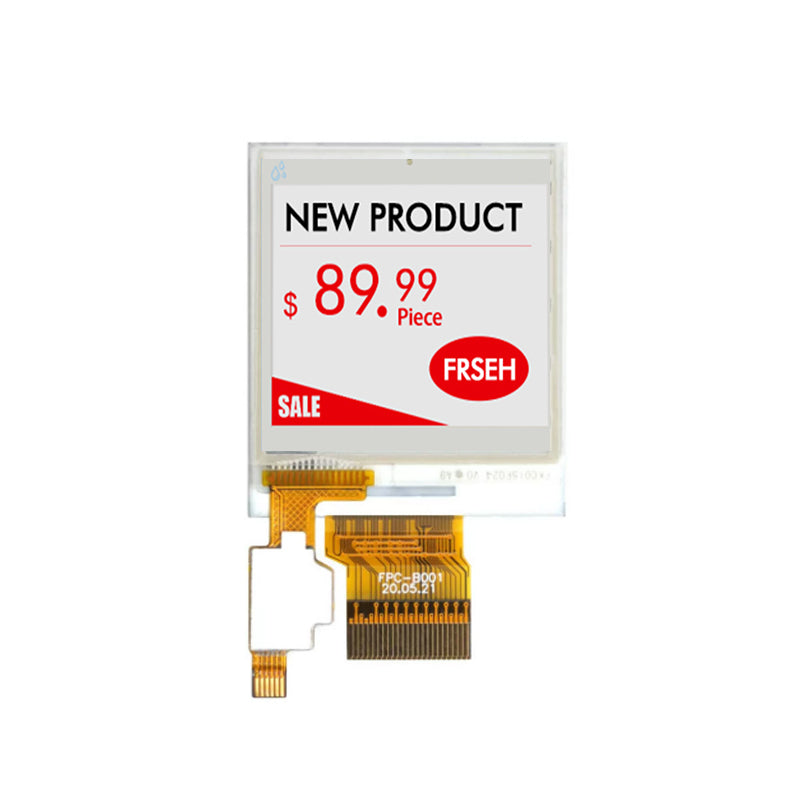

1.54 Inch Monochrome E-Paper Display Module 200×200 SPI E Ink Electronic Paper Display Overview

ET015EPT01 is a 1.54 inch diagonal monochrome E-Paper (EPD) display module utilizing advanced E Ink electronic paper technology to provide ultra-low power consumption and a paper-like viewing experience. ET015EPT01 supports a 200×200 resolution with a compact design, delivering clear text, icons, symbols, and graphics for applications such as smart wearables, electronic shelf labels, portable devices, industrial instruments, and IoT products. The module adopts an SPI interface for easy system integration and features an integrated touch panel for intuitive user interaction and enhanced application flexibility. It features an active area of 27.00(W) × 27.00(H) mm, an outline dimension of 37.32(W) × 31.8(H) × 1.55(D) mm, and operates reliably within a 0°C to 50°C operating temperature range, with a storage temperature of -25°C to 70°C. With touch functionality, the ET015EPT01 provides high contrast, wide viewing angle performance, and bistable display characteristics, making it an ideal display solution for interactive battery-powered applications requiring long service life, low power consumption, and excellent readability.
1.54 Inch Monochrome E-Paper Display Module 200×200 SPI E Ink Electronic Paper Display

1.54 Inch E Ink Display  Specification

Part No. ET015EPT01 Size 1.54 inch
Resolution 200 × 200 Display Mode EPD
Panel Interface SPI Touch Panel Yes

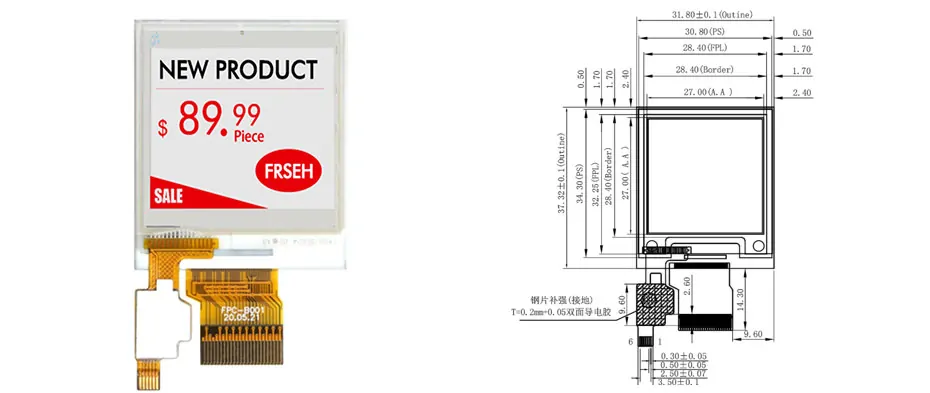

Outline Dimension 37.32 × 31.8 × 1.55 mm Active Area 27.00 × 27.00 mm
Viewing Angle (L/R/U/D) N/A Brightness N/A
Operation Temp. 0 ~ 50°C Storage Temp. -25 ~ 70°C

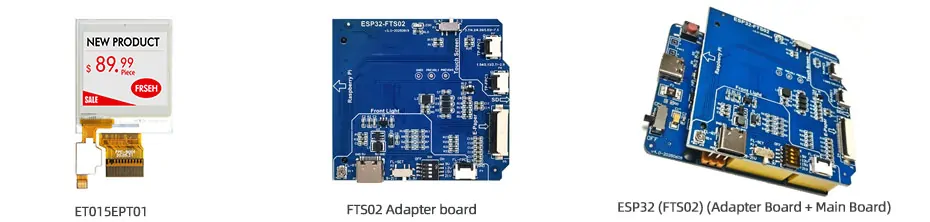

1.54 Inch E Ink Display Solution For Reference
ET015EPT01

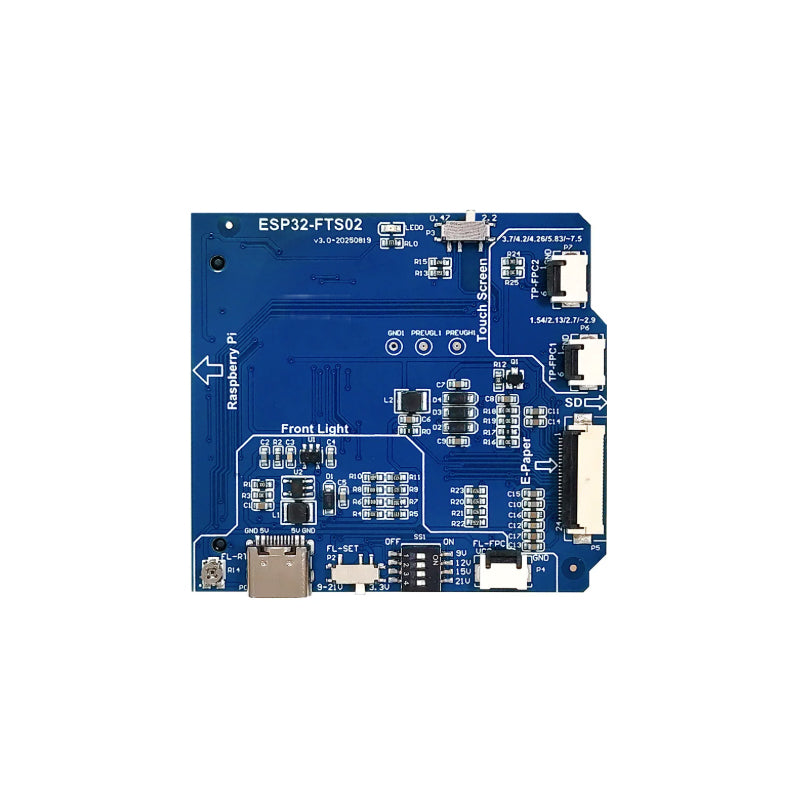

FTS02 Adapter board

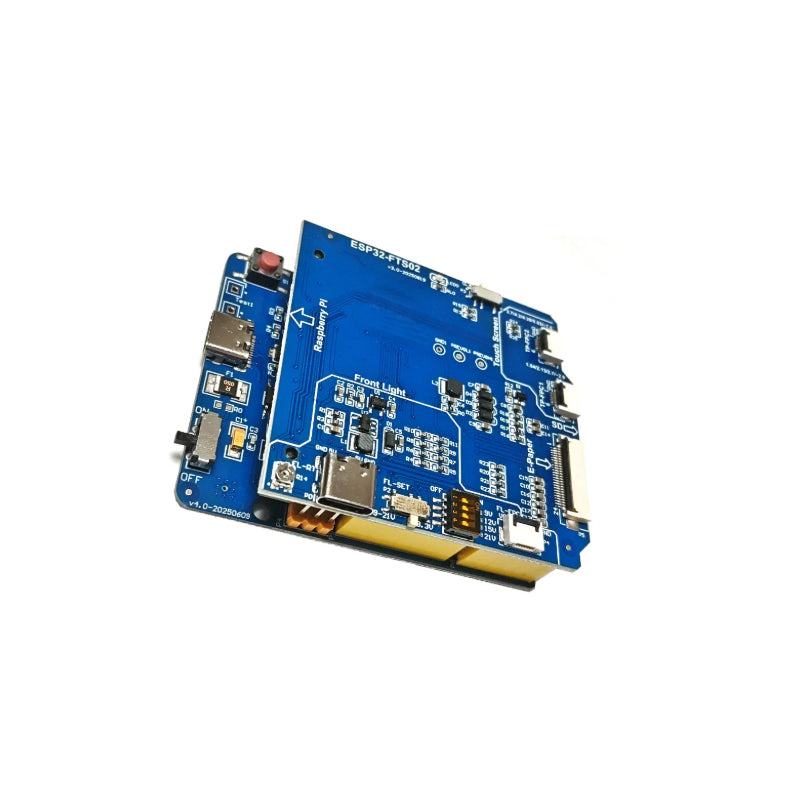

ESP32 (FTS02) (Adapter Board + Main Board)
1.54 Inch Monochrome E-Paper Display Module 200×200 SPI E Ink Electronic Paper Display

Features For Youritech E-Paper Display
Features For Youritech E-Paper Display
Color E-Paper Module Features_07

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

Applications For Youritech E-Paper Display

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
