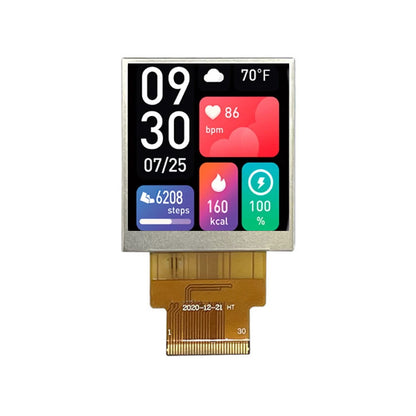

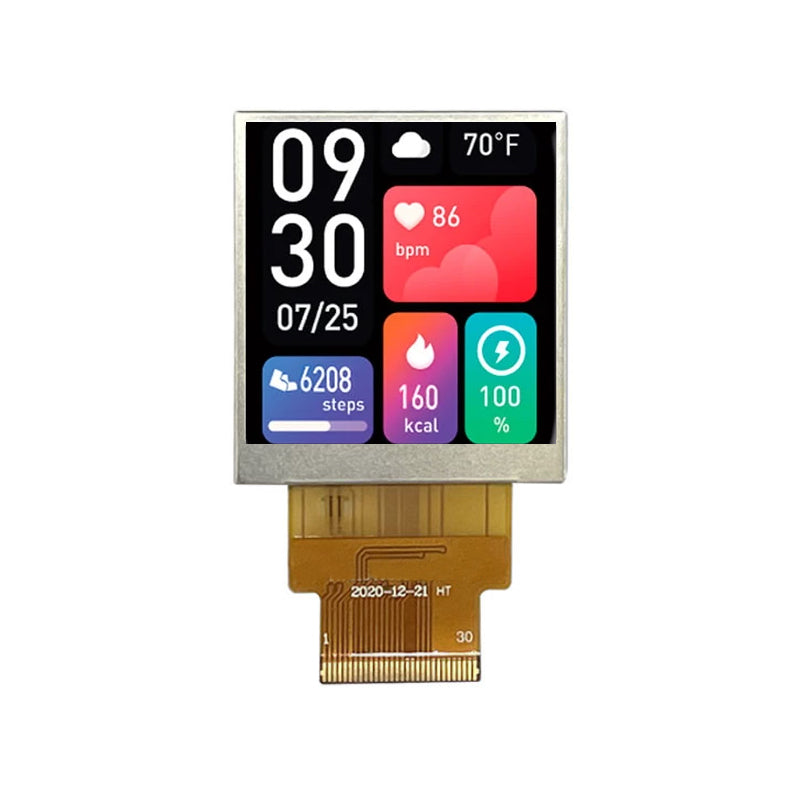

1.54 Inch TFT LCD Display 240x240 MCU Square LCD Screen For Bicycle Instrument Display Screens

1.54 Inch TFT LCD Display 240x240 MCU Square LCD Screen For Bicycle Instrument Display Screens

$122.70 USD
$122.70 USD
Sale Sold out
ET015QV02-T
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


1.54 Inch Square Display Overview

ET015QV02-T is a 1.54-inch TFT LCD display module featuring a resolution of 240 × 240 pixels, with pixels arranged in a square display format. In terms of mechanical specifications, it features a compact outline dimension of 31.92(W) × 35.11(H) × 2.13(D) mm and a 30-pin connection.ET015QV02-T provides a high brightness of 1000 nits and a contrast ratio of 1000:1, delivering clear and vivid images. It supports an 80° viewing angle for visual content display from different directions. The module is driven by the ST7789V driver IC and uses an MCU interface for display signal input. With its compact form factor and square resolution, ET015QV02-T is suitable for wearable devices, smart home products, handheld instruments, and other compact electronic applications requiring a high-brightness TFT display. It operates at temperatures from -20°C to +70°C. The minimum order quantity (MOQ) is 30 pieces.
Product Specifications – ET015QV02-T
Parameter Specification Parameter Specification
Part No. ET015QV02-T Display Type TFT LCD
Size 1.54 inch Resolution 240 × 240
Panel Interface MCU Driver IC ST7789V
Outline Dimension 31.92 × 35.11 × 2.13 mm Brightness 1000 nits
Contrast Ratio 1000:1 Viewing Angle 80°
Operating Temperature -20°C to +70°C Pin Count 30 pins
MOQ 30 pcs
