1.6 Inch AMOLED Display 320×360 RM69092 Driver SPI MIPI OLED Screen

1.6 Inch AMOLED Display 320×360 RM69092 Driver SPI MIPI OLED Screen

$24.97 USD
$24.97 USD
Sale Sold out
ET016AM01-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


1.6 Inch AMOLED Display Overview

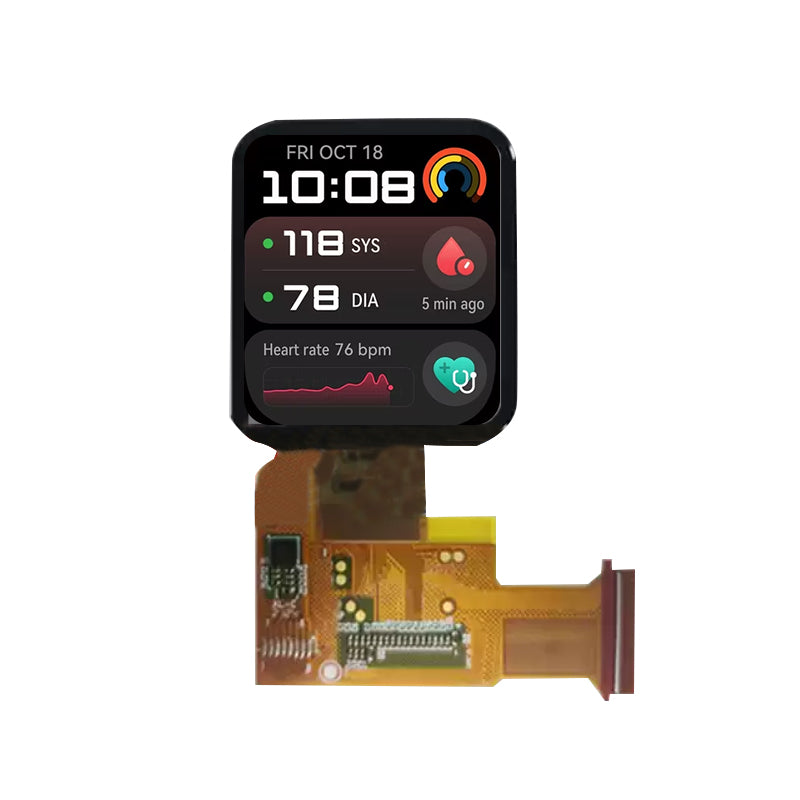

ET016AM01-KT is a 1.6-inch AMOLED display module with a resolution of 320×360 and a full-color display supporting 16.7M colors. It features a pixel pitch of 0.08445(H) × 0.08445(V) mm, an active area of 27.42(W) × 30.80(H) mm, a pixel array area of 27.02(W) × 30.40(H) mm, and an outline dimension of 31.32(W) × 36.05(H) × 2.05(D) mm. ET016AM01-KT delivers a typical brightness of 320 cd/m² and a contrast ratio of 100000:1, providing vivid colors and clear image quality. This self-emissive AMOLED display supports full viewing angles and integrates the RM69092 display driver IC and TMA520 capacitive touch controller for responsive touch operation. It supports MIPI, 3-wire SPI, 4-wire SPI, and Quad-SPI interfaces, offering flexible integration options for different embedded display applications. The module operates at a typical supply voltage of 2.8V, with a service life of up to 20000 hours. It is designed to operate in temperatures ranging from -20°C to +70°C and can be stored in temperatures from -30°C to +80°C, making it suitable for compact smart devices, portable electronics, wearable devices, and other applications requiring a high-resolution AMOLED display with integrated capacitive touch.



ET016AM01-KT 1.6 Inch AMOLED Display Specifications

Parameter Specification Parameter Specification
Model Number ET016AM01-KT Display Size 1.6 Inch
Display Type AMOLED Resolution 320 × 360
Display Colors 16.7M Viewing Angle Full Viewing Angle
Brightness 320 cd/m² Contrast Ratio 100000:1
Display Driver IC RM69092 Touch Controller IC TMA520
Touch Type Capacitive Touch Touch Function Touchscreen Supported
Interface MIPI / 3-Wire SPI / 4-Wire SPI / Quad-SPI Pin Count 45 Pins
Active Area 27.42 × 30.80 mm Pixel Array Area 27.02 × 30.40 mm
Pixel Pitch 0.08445 × 0.08445 mm Outline Dimensions 31.32 × 36.05 × 2.05 mm
Operating Voltage 2.8 V Service Life 20,000 Hours
Operating Temperature -20°C to +70°C Storage Temperature -30°C to +80°C

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?

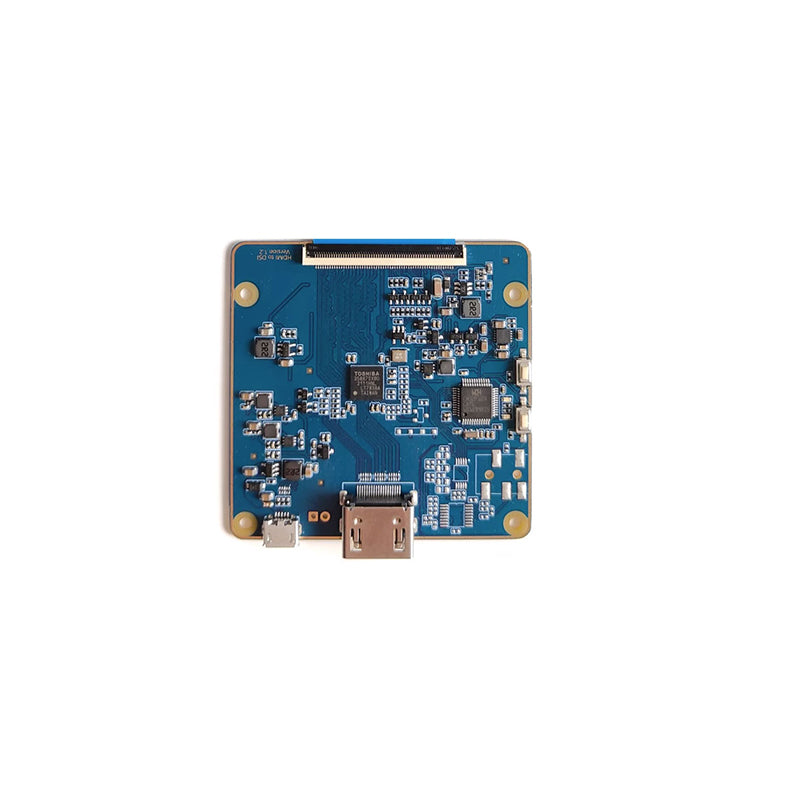

The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
