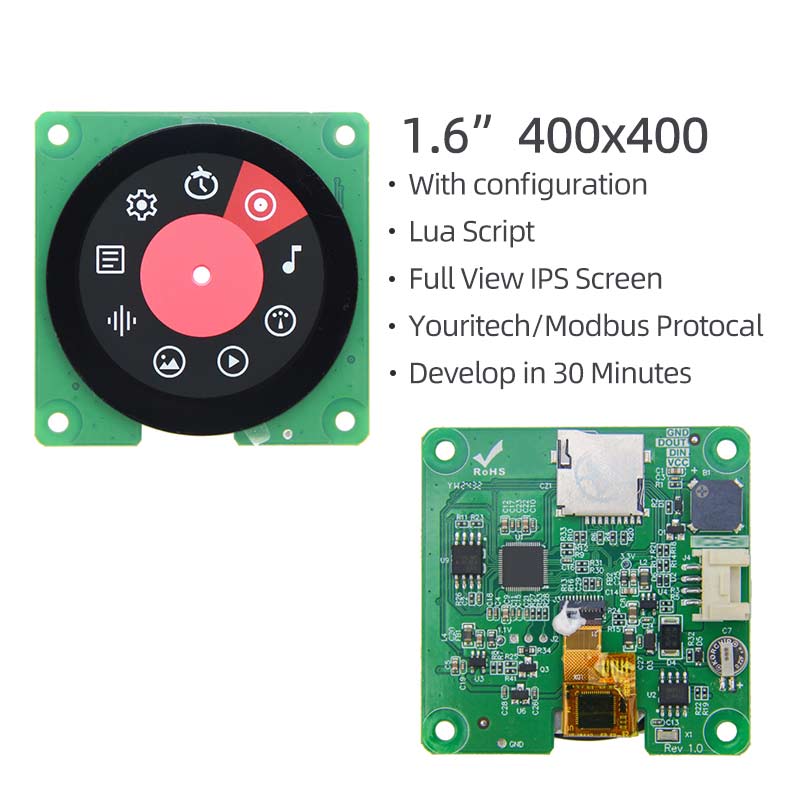

1.6 Inch Circular UI Serial Screen configuration LUA Script 400x400 Serial TFT Display With Capacitive Touch

1.6 Inch Serial Port Screen Overview

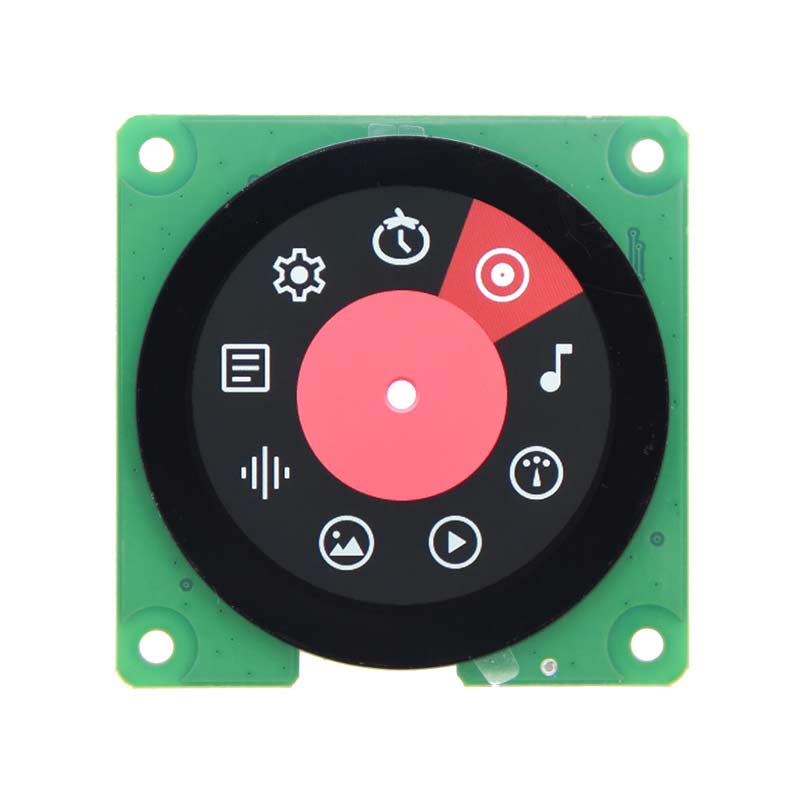

1.6 Inch Circular UI Serial Screen 400x400 configuration LUA Script Serial TFT Display With Capacitive Touch.

1.6 Inch Serial Port Screen Product Parameters

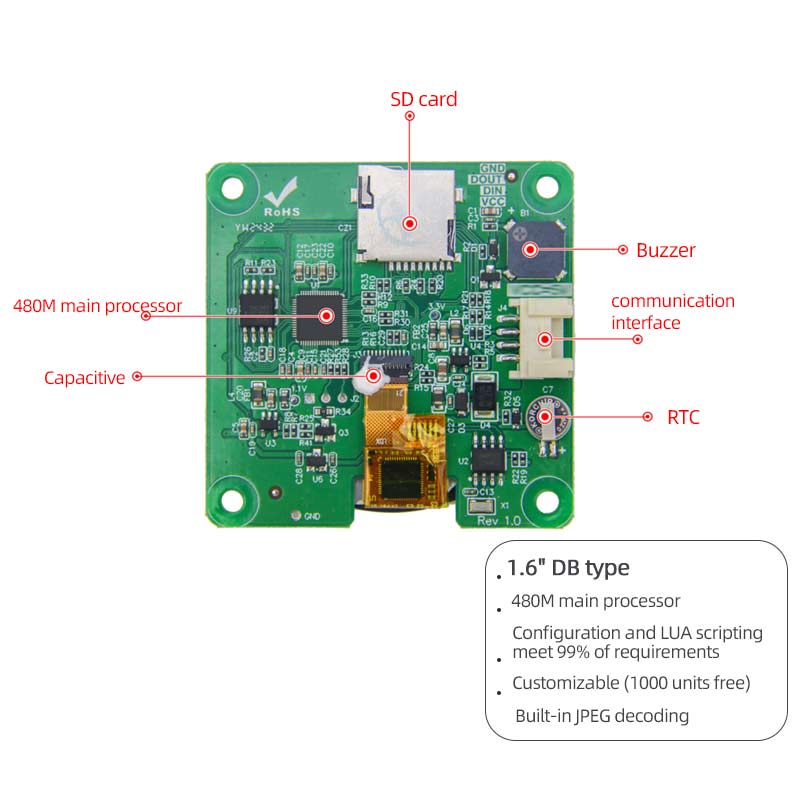

Core processor: 480M SOC processor
Operating system: No operating system, it can run after power on, startup time: about 1 second
Protocol type: Default Dacai configuration instruction set, the host computer can be configured to run MODBUS RTU, XGUS protocols.
Scripting language: Version 5.3 LUA script, the screen can run user-written logic, protocols and algorithm functions.
Size: 1.6 inches
Resolution:400x400
Installation direction: supports 0, 90, 180 and 270 degree rotation installation display
Storage space: 128Mbit
Font library: Built-in vector fonts, edge anti-aliasing processing, supports any size ASCII, GBK, GB2312, UNICODE (global language) font library, and can also customize any computer font display.
Image storage: Supports JPEG, PNG (semi-transparent/fully transparent) compression, and supports image storage of any size. It can store about 160 full-screen pictures in total (based on the size of 65KB/picture, BMP format is not recommended). Depending on the image compression ratio, this value will fluctuate up and down.
Color: 65K colors, 16-bit RGB
Voltage:5V
Power consumption
Darkest backlight: 0.5W;
Brightest backlight: 1.0W
Communication method: TTL
Communication baud rate: 1200~921600bps, typical baud rate: 115200bps
Communication connector specifications: HY2.0-4P
Picture local download: SD card, serial port
Firmware local/remote upgrade: Insert the SD card for local upgrade/support user motherboard remote serial port upgrade screen firmware.
Remote image upgrade: Support users to remotely use their own motherboard serial port to upgrade screen-related image projects, fonts, configuration files, etc.
Real-time clock: supports clock, timer, countdown and other functions
Screen effective display area: φ39.8mm
Product size:56X56x9.9mm
Supporting host computer software: VisualTFT®

Reliability parameters
Operating Temperature: 20~+70°C
Storage Temperature: 30~+80°C
ESD test: Test standard: IEC 61000-4-2 Contact: ±5KV; Air: ±14KV
EFT test: Test standard: IEC 61000-4-4 National Standard 4 (voltage: ±4KV; frequency: 100/5KHZ; time: 120S), no restart, no display abnormality, no touch abnormality and other phenomena, the test function is normal.
Radiation test: Test standard: EN55022 ClassB margin -6dB Test environment: three-meter dark wave room.

Core competitiveness of products
Learning cycle: 30 minutes to familiarize yourself with the development environment, 3 days to complete human-computer interaction design.

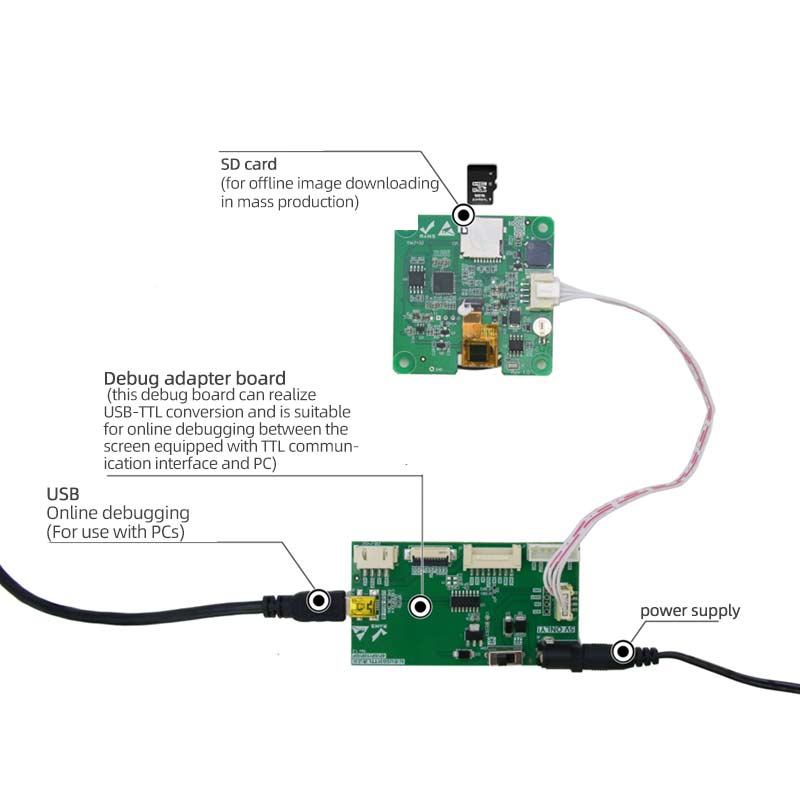

Program debugging: The host computer integrates a "virtual serial port screen," eliminating the need for hardware connection and allowing direct Keil debugging. IDE-bound debugging
Startup Time: Runs instantly upon power-up, eliminating system loading time
Configuration Controls: Features a variety of configuration controls, including multi-language controls, buttons, text, drop-down menus, progress bars, sliders, meters, animations, QR codes, curves, data loggers, circular progress bars, and sub-screen slide controls.
System Keyboard: Built-in virtual numeric and character keyboards, supporting Chinese and English input methods, and customizable keyboards.
Data Logging: Supports exporting data logger content to an SD card.
Layer Technology: Multiple display layers are built into the system for faster switching.
Multilingual Capability: Factory-preset up to 15 global languages, enabling one-click switching without the need for multiple UIs.
Logical Operation Processing: The host computer has an embedded LUA script parser, allowing users to customize complex logic relationships and protocols within the screen, meeting 99.9% of customer product requirements.
Remote Upgrade: Supports remote serial port upgrades of display firmware, project files, specified images, configuration files, and fonts.
Lifecycle: Utilizes a traditional, leading-edge processor, ensuring long-term supply.

1.6 Inch Serial Port Screen
Display Type: IPS LCD
Backlight: LED
Brightness (cd/m²): 230
Backlight Lifespan (hours): >20,000
Contrast Ratio: 800:1
Viewing Angles (L/R/T): 80/80/80/80

Touch panel (resistance and capacitance optional)
Touch Type: Capacitive Touchscreen (IC: GT911)
Capacitive Touch Modes: Single-touch and Slide Touch
Capacitive Touch Transmittance: Over 90%
Capacitive Touch Lifespan: Theoretically, unlimited touches are possible; touch lifespan is dependent on operating environment (dust and humidity).
Capacitive Cover Customization: Customizable "glass cover + capacitive touch" lamination service based on user drawing dimensions.

Customized services
Customization Fees: For orders of 1,000 units, some customization fees may be waived.
Hardware Circuits: Customizable PCB size, circuit thickness, custom circuitry, military-grade temperature display, and more.
Software Customization: Customizable instructions or controls based on user needs, reducing development effort.
Design Services: Graphic design and product structure design services available.
Other: Customizable on demand to meet all user needs.
