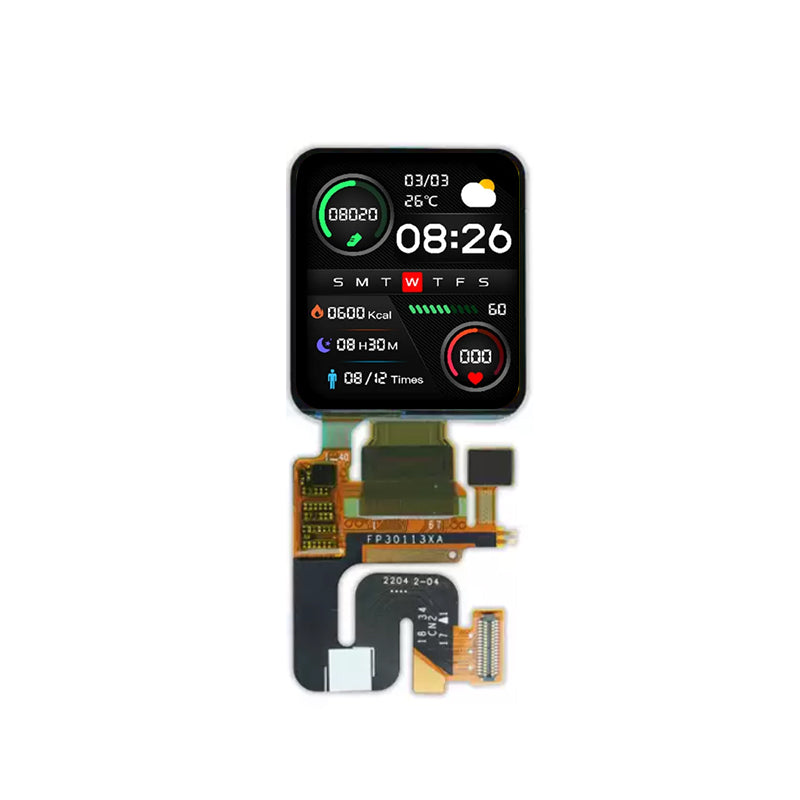

1.6 Inch LTPS AMOLED Display 320×360 Rounded Corner OLED Screen with Touch

1.6 Inch LTPS AMOLED Display 320×360 Rounded Corner OLED Screen with Touch

$18.86 USD
$18.86 USD
Sale Sold out
ET016AM02-K
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


1.6 Inch AMOLED Display Overview
ET016AM02-K supports a display resolution of 320×360 with rounded corners, delivering clear images and smooth visual performance. As for mechanical details, it features a pixel pitch of 0.08445(H)×0.08445(V) mm, a pixel area of 27.02(W)×30.40(H) mm, and an outline size of 28.92(W)×33.35(H)×0.76(D) mm. ET016AM02-K provides 450 cd/m² display brightness, a 10000:1 contrast ratio, full viewing angle, and a response time of 2 ms. It supports 16.7M colors for vivid and detailed image reproduction. This product uses self-emissive AMOLED technology. ET016AM02-K utilizes a QSPI interface as its signal input system, with a typical operating voltage of 3.3V. It features an RM69092 driver IC and a 34-pin plug-in connection. The display supports an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C, with a service life of up to 30,000 hours.

Model ET016AM02-K  1.6 Inch LTPS AMOLED Display 320×360 Rounded Corner OLED Screen with Touch
Size 1.6" Touch No
Touch Type / Display Mode AMOLED
Display Colors 16.7M Color Gamut --
Response Time 2ms Resolution 320×360
Dot Pitch 0.08445 (H)*0.08445 (V) Viewing Angle All viewing angle
Driver IC RM69092 Outline Dimension 28.92*33.35*0.76 mm
Active Area -- Dot Area 27.02*30.40 mm
Brightness 450 cd/m² Contrast Ratio 10000:1
Interface QSPI Pin Count 34
Pin Pitch -- Touch Interface --
Touch IC -- Connection Type Plug-in type
Operating Voltage 3.3 V Operating Life 30000h
Operating Temperature -20°C ~ +70°C Storage Temperature -30°C ~ +80°C
