1.69 Inch Round Color E Ink Display SPI 400×400 Ultra-Thin Electronic Paper Display Module

Product Introduction

1.69 Inch Round Color E Ink Display 400×400 SPI Ultra-Thin Electronic Paper Display Module Overview

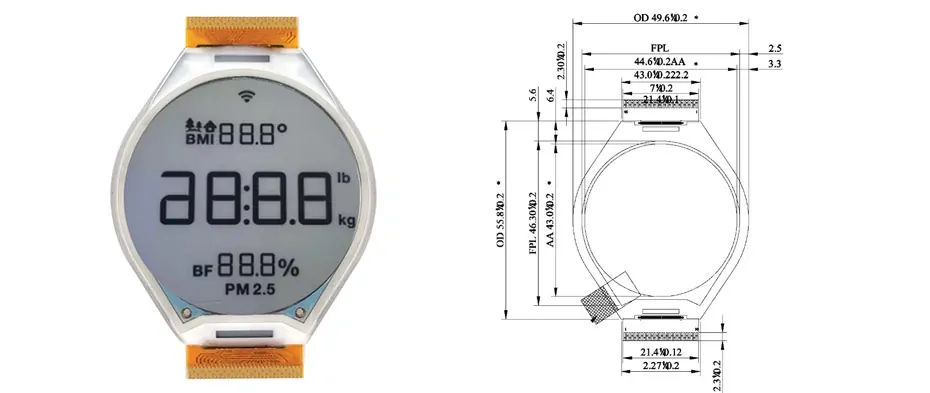

ET017EPCR01-J is a 1.69 inch diagonal round color E-Ink E-Paper (EPD) display module featuring advanced electronic ink technology with an ultra-thin design for low-power and visually appealing display applications. ET017EPCR01-J supports a 400×400 resolution with a circular display format, delivering clear text, graphics, icons, and colorful content for applications such as smart wearables, smart home devices, electronic labels, IoT products, and portable instruments. The module adopts an SPI interface for easy system integration and efficient data communication. It features an active area of 43(W) × 43(H) mm, an outline dimension of 55.8(W) × 49.6(H) × 0.95(D) mm, and operates reliably within a 0°C to 50°C operating temperature range, with a storage temperature of -20°C to 60°C. Designed with an ultra-thin profile and without a touch panel, the ET017EPCR01-J provides a paper-like viewing experience with high contrast, wide viewing angle performance, and bistable display characteristics, making it an ideal display solution for battery-powered applications requiring a stylish round design, long service life, and ultra-low power consumption.

1.69 Inch E Ink Display  Specification

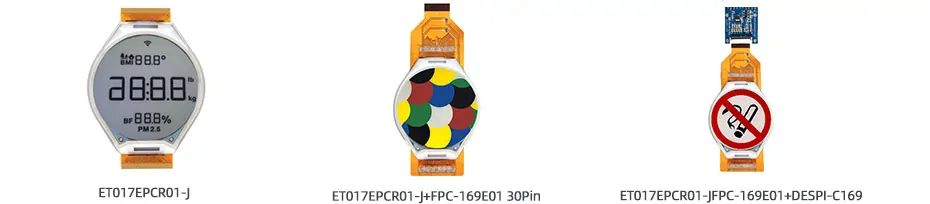

1.69 Inch E Ink Display Solution For Reference

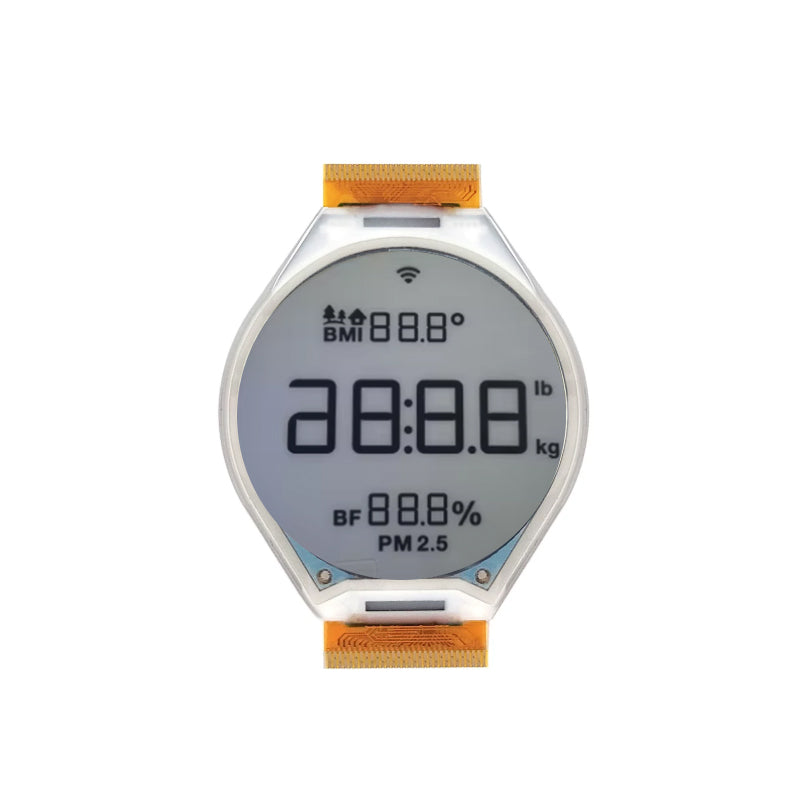

ET017EPCR01-J

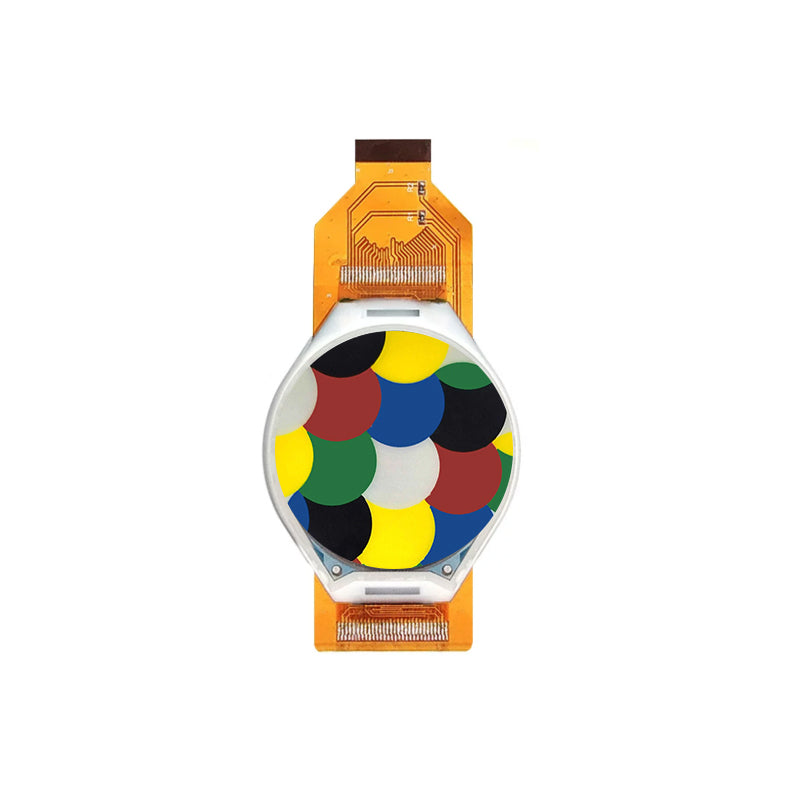

ET017EPCR01-J+FPC-169E01 30Pin

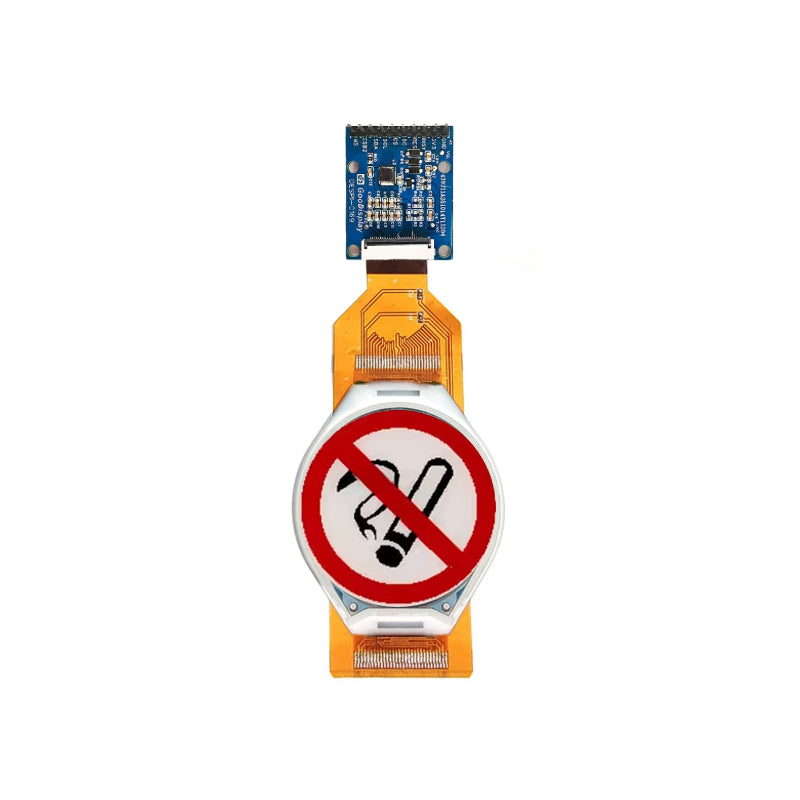

ET017EPCR01-JFPC-169E01+DESPI-C169

Features For Youritech E-Paper Display

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
