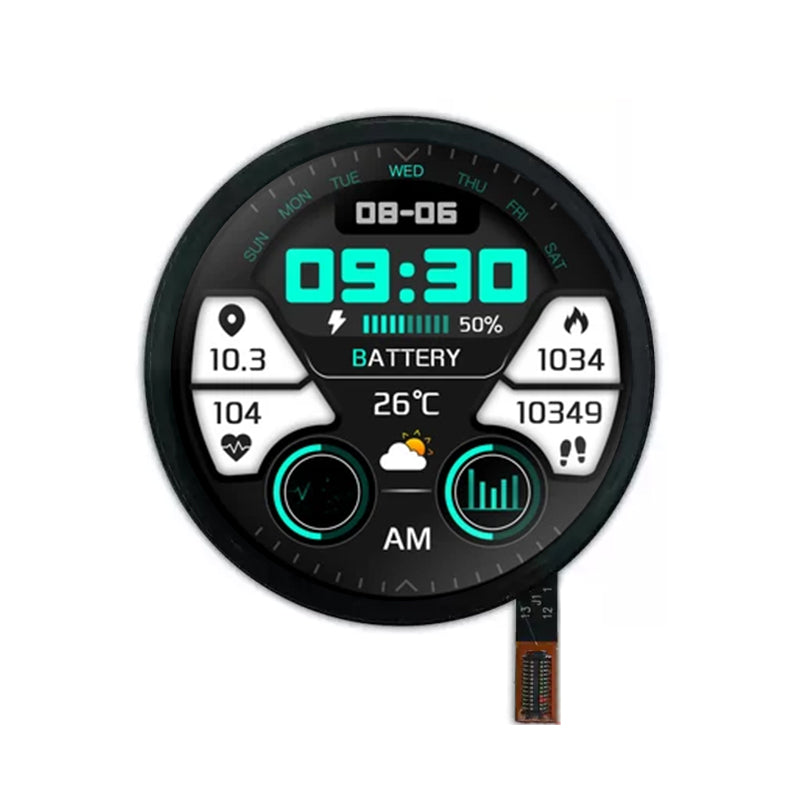

1.7 Inch Round AMOLED Display 466×466 QSPI Interface Touch screen Display For Industrial Medical Display

1.7 Inch Round AMOLED Display 466×466 QSPI Interface Touch screen Display For Industrial Medical Display

$17.15 USD
$17.15 USD
Sale Sold out
ET017AM02-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


1.7 Inch AMOLED Display Overview

ET017AM02-KT is a 1.7-inch round AMOLED display module featuring a resolution of 466×466 pixels and full viewing angles. It adopts AMOLED display technology with an Oncell touch panel, providing a compact and integrated display solution for wearable devices and other embedded applications. The module features an active area of 43.76(W) × 43.76(H) mm and an outline dimension of 48.40(W) × 48.40(H) × 2.21(D) mm.ET017AM02-KT delivers a typical brightness of 700 cd/m² and a contrast ratio of 10000:1, ensuring clear and vivid image performance. It supports 16.7M colors with a 99% color gamut, producing rich and detailed visual output. As a self-emissive display, AMOLED technology provides high contrast and vibrant colors. The module utilizes a QSPI interface for display signal input and features a 24-pin connector. It operates at a typical supply voltage of 3.3V and is equipped with a CO5300 display driver IC. The integrated Oncell touch panel uses an I2C interface with a CST820 touch controller. ET017AM02-KT has a typical service life of 30,000 hours, an operating temperature range of -10°C to +60°C, and a storage temperature range of -20°C to +70°C.



Product Specifications – ET017AM02-KT
Parameter Specification Parameter Specification
Model Number ET017AM02-KT Display Size 1.7 inch
Display Technology AMOLED Resolution 466 × 466 pixels
Display Colors 16.7M Color Gamut 99%
Viewing Angle Full Viewing Angle Brightness 700 cd/m²
Contrast Ratio 10000:1 Active Area 43.76 × 43.76 mm
Outline Dimensions 48.40 × 48.40 × 2.21 mm Display Driver IC CO5300
Display Interface QSPI Pin Count 24 pins
Touch Function Yes Touch Technology Oncell
Touch Interface I2C Touch Controller IC CST820
Connector Type Plug-in Operating Voltage 3.3 V
Service Life 30,000 hours Operating Temperature -10°C to +60°C
Storage Temperature -20°C to +70°C



AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
