1.8 Inch Ultra-thin Serial TFT Display 128x160 Low Power Consumption Script Configuration Serial Port Display For Medical

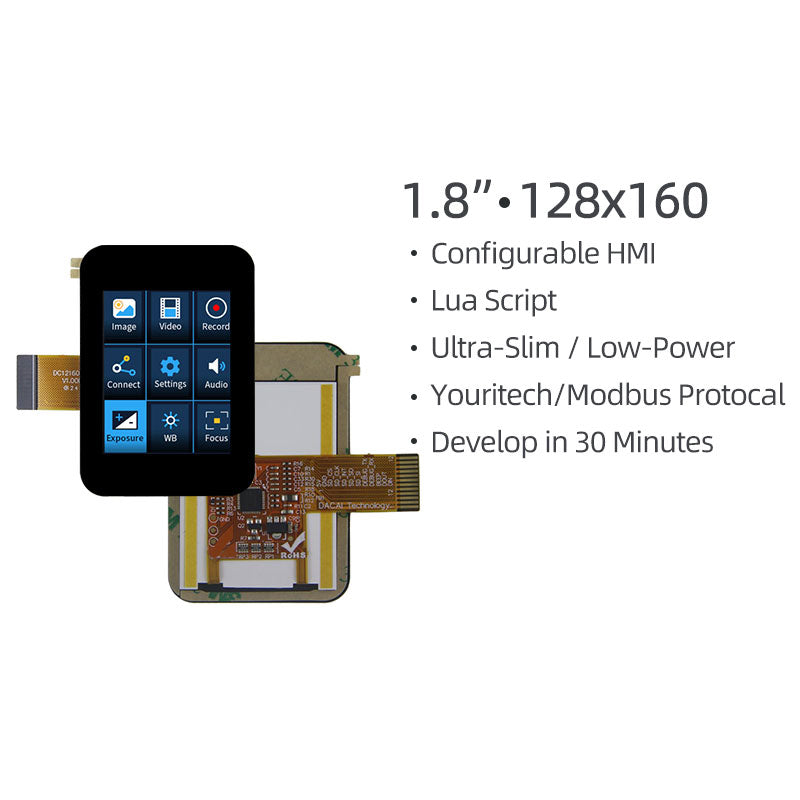

1.8 Inch Ultra-thin Serial Port Screen Overview
1.8 Inch Ultra-thin Serial TFT Display 128x160 Low Power Consumption Script Configuration Serial Port Display For Medical.

1.8 Inch Serial Port Screen Product Parameters
Model: ET018COF1216-DC
Product Series: Smart Medical Grade
Core Processor: Cortex-M3 Core
Operating System: No operating system required, runs instantly upon power-up.
Protocol: Default large color configuration instruction set; host computer can configure MODBUS RTU and XGUS protocols
Scripting Language: Version 5.3 LUA script; user-programmed logic, protocols, and algorithms can be executed within the display.
Size: 1.8-inch
Resolution: 128x160
Mounting Orientation: Supports 0, 90, 180, and 270-degree rotation
Storage: 64Mbit (on-chip)
Font Library: Built-in vector fonts with anti-aliasing, supporting ASCII, GBK, GB2312, and Unicode (global language) fonts of any size, and supports custom computer fonts.
Image Storage: Supports JPEG and PNG (transparent/transparent) compression, supporting image storage of any size. The display can store approximately 150 full-screen images (based on 60KB per image; BMP format is not recommended). This value will fluctuate depending on the image compression ratio.
Color: 65K colors, 16-bit RGB
Power supply: 5V (minimum 4.5V startup)
Power consumption: Backlight dimmed: 0.2W; Backlight brightened: 0.4W.
Communication method: TTL
Baud rate: 1200-921600bps, typical baud rate: 115200bps.
Communication connector: FPC1.0-12P.
Local image download: SD card, serial port.
Local/remote firmware upgrade: Local upgrade via SD card or remote upgrade via the user's motherboard serial port
Remote image upgrade: Supports remote upgrade of display-related image projects, fonts, and configuration files via the user's motherboard serial port.
Effective display area: 28.0mm x 35.0mm
Dimensions: 40.7mm x 58.9mm x 5.8mm
Compatible host software: VisualTFT®

Reliability parameters
Operating Temperature: 20~+70°C
Storage Temperature: 30~+80°C
ESD Test: No abnormalities; Display: Contact: ±2kV, Air: ±4kV
EFT Test:IEC61000-4-4 Standard 4 (Voltage: +4kV; Frequency: 5kHz; Duration: 120s); No restart, display abnormalities, touch abnormalities, etc.; Test functions are normal.
Radiated Radiation Test: EN55022 Class B, Range -6dB

Core competitiveness of products
Learning cycle: 30 minutes to familiarize yourself with the development environment, 3 days to complete human-computer interaction design.
Program debugging: The host computer integrates a "virtual serial port screen," eliminating the need for hardware connection and allowing direct Keil debugging. IDE-bound debugging
Startup Time: Runs instantly upon power-up, eliminating system loading time
Configuration Controls: Features a variety of configuration controls, including multi-language controls, buttons, text, drop-down menus, progress bars, sliders, meters, animations, QR codes, curves, data loggers, circular progress bars, and sub-screen slide controls.
System Keyboard: Built-in virtual numeric and character keyboards, supporting Chinese and English input methods, and customizable keyboards.
Data Logging: Supports exporting data logger content to an SD card.
Layer Technology: Multiple display layers are built into the system for faster switching.
Multilingual Capability: Factory-preset up to 15 global languages, enabling one-click switching without the need for multiple UIs.
Logical Operation Processing: The host computer has an embedded LUA script parser, allowing users to customize complex logic relationships and protocols within the screen, meeting 99.9% of customer product requirements.
Remote Upgrade: Supports remote serial port upgrades of display firmware, project files, specified images, configuration files, and fonts.
Lifecycle: Utilizes a traditional, leading-edge processor, ensuring long-term supply.

1.8 Inch Serial Port Screen
Display Type: TFT LCD
Backlight: LED
Brightness (cd/m²): 400
Backlight Lifespan (hours): >20,000
Contrast Ratio: 200:1
Viewing Angles (L/R/T): 45/45/45/30

Customized services
Customization Fees: For orders of 1,000 units, some customization fees may be waived.
Hardware Circuits: Customizable PCB size, circuit thickness, custom circuitry, military-grade temperature display, and more.
Software Customization: Customizable instructions or controls based on user needs, reducing development effort.
Design Services: Graphic design and product structure design services available.
Other: Customizable on demand to meet all user needs.

Installation diagram

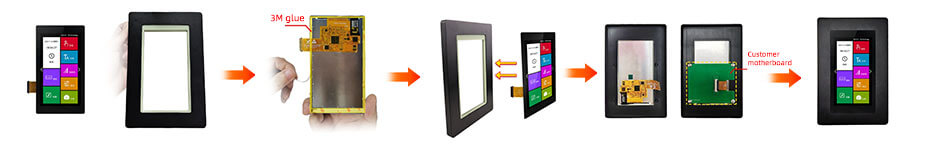

(COF series installation method 1 schematic diagram)

Step 1: The customer opens the hole according to the product size
Step 2: Tear off the 3M adhesive protective film around the back of the touch cover to expose the 3M adhesive
Step 3: Press the screen tightly to ensure that the 3M adhesive on the screen cover is in perfect contact with the cabinet surface
Step 4: Install the customer's main board on the housing and tighten the screws to fix it, and insert the cable
Step 5: Installation Complete

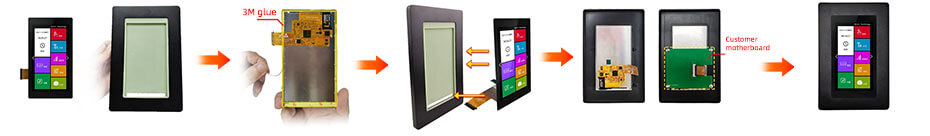

(COF series installation method 2 schematic diagram)

Step 1: Customer drills holes based on product dimensions
Step 2: Tear off the 3M adhesive protective film around the back of the touch cover to expose the 3M adhesive
Step 3: Press the screen tightly to ensure that the 3M adhesive on the screen cover is in perfect contact with the cabinet surface
Step 4: Install the customer main board on the housing and tighten the screws to fix it, and then insert the cable
Step 5: Installation Complete
