10.1 Inch High Brightness Display 1000nits IPS 1920x1200 LVDS TFT LCD Display With Capacitive Touch

10.1 Inch High Brightness Display 1000nits IPS 1920x1200 LVDS TFT LCD Display With Capacitive Touch

$89.85 USD
$89.85 USD
Sale Sold out
ET101WU15-TT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction



10.1 Inch High Brightness LCD Display Overview

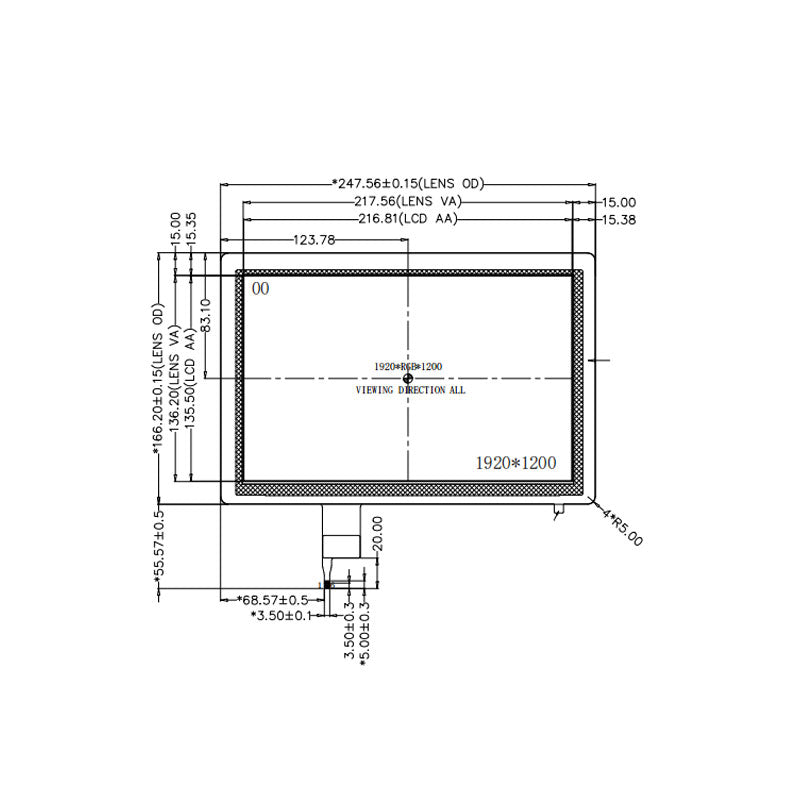

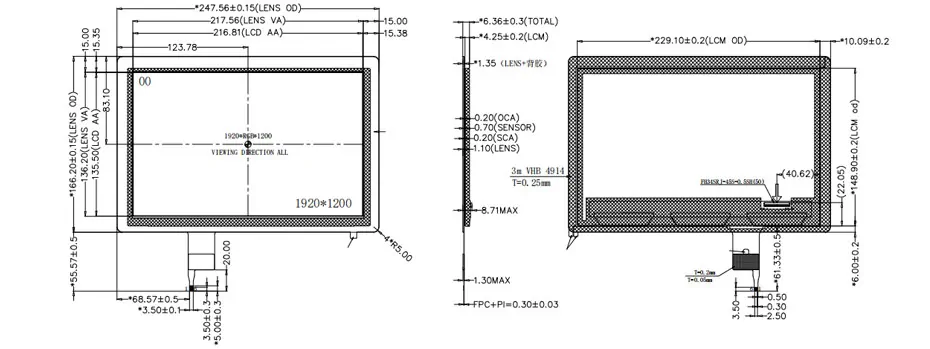

ET101WU15-TT is a 10.1-inch high-brightness IPS TFT LCD display with a 1920 × 1200 resolution in transmissive mode. It supports an LVDS interface and features capacitive touch functionality. The panel provides a typical brightness of 1000 cd/m² with 80° wide viewing angles in all directions. It has an active area of 216.81 × 135.5 mm and an outline dimension of 229.1 × 148.9 mm, operating reliably from −20 to 70 °C (storage −30 to 80 °C).

Part Number ET101WU15-TT Display Size 10.1 Inch
Resolution 1920 × 1200 Display Mode Transmissive IPS TFT LCD
Interface LVDS Touch Panel Capacitive Touch (PCAP)
Brightness 1000 cd/m² (Typ.) Viewing Angle 80° / 80° / 80° / 80° (L/R/U/D)
Active Area 216.81 × 135.50 mm Outline Dimension 229.10 × 148.90 mm
Operating Temperature -20°C ~ 70°C Storage Temperature -30°C ~ 80°C

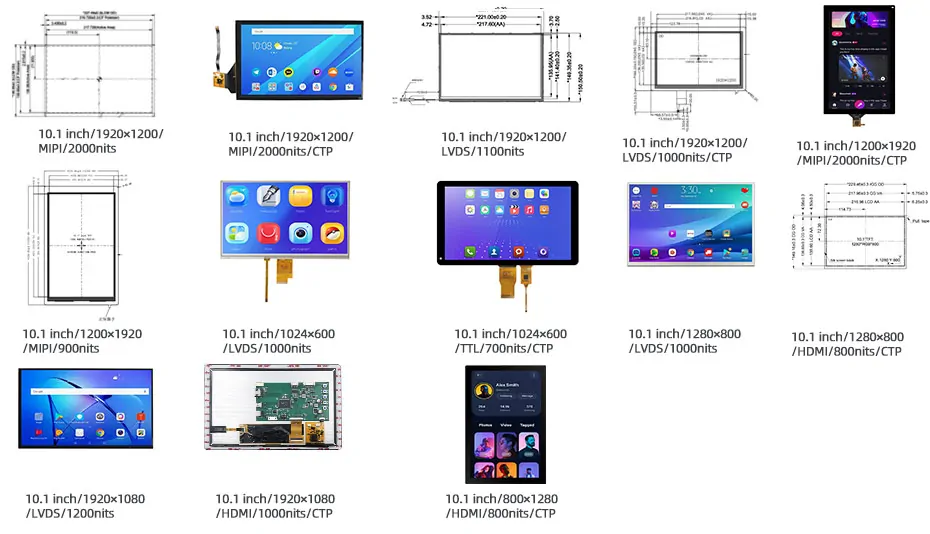

More 10.1 Inch High Brightness Display For Reference
ET101WU01-R (1920x1200, MIPI, 2000nits, -20~80°C, 229.46x149.1mm)
ET101WU01-YT (1920x1200, MIPI, 750nits, -40~70°C, 238.1x159.19mm, CTP)
ET101WU14-O (1920x1200, LVDS, 1100nits, -20~70°C, 229.4x150.5mm)
ET101WU15-TT (1920x1200, LVDS, 1000nits, -20~70°C, 229.1x148.9mm, CTP)
ET101WU16-TT (1200x1920, MIPI, 2000nits, -10~60°C, 159.96x241.18mm, CTP)
ET101WU13-TT (1200x1920, MIPI, 900nits, -10~60°C, 143x2288mm)
ET101WS01-ZK (1024x600, LVDS, 1100nits, -20~70°C, 235x143mm)
ET101WS06-TT (1024x600, TTL, 700nits, -20~70°C, 252x150mm, CTP)
ET101WX08-T (1280x800, LVDS, 1000nits, -20~70°C, 229.1x148.9mm)
ET101WX01-KDT-HDMI (1280x800, HDMI, 800nits, -20~70°C, 229.46x149.16mm, CTP)
ET101FH01-R (1920x1080, LVDS, 1200nits, -30~85°C, 236x142.1mm)
ET101HD01-KDT-HDMI (1920x1080, HDMI, 1000nits, -20~70°C, 260x160mm, CTP)
ET101WX05-TT-HDMI (800x1280, HDMI, 800nits, -20~70°C, 159x244.6mm, CTP)
