10.1 Inch High Brightness Display 2000nits IPS 1200x1920 MIPI TFT LCD Display With Capacitive Touch

10.1 Inch High Brightness Display 2000nits IPS 1200x1920 MIPI TFT LCD Display With Capacitive Touch

$79.87 USD
$79.87 USD
Sale Sold out
ET101WU16-TT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

10.1 Inch High Brightness LCD Display Overview

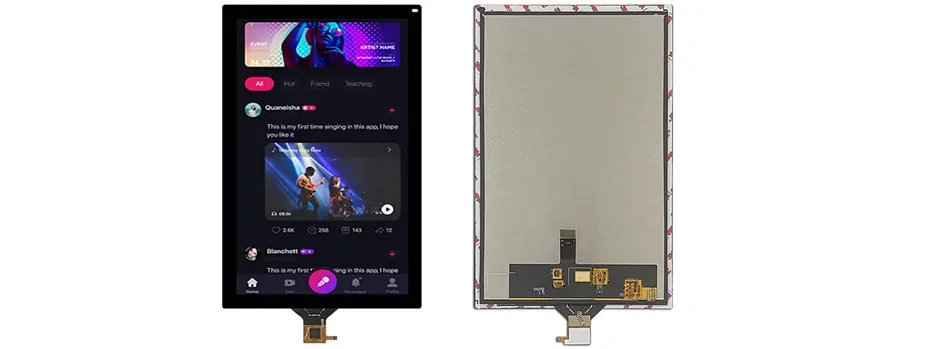

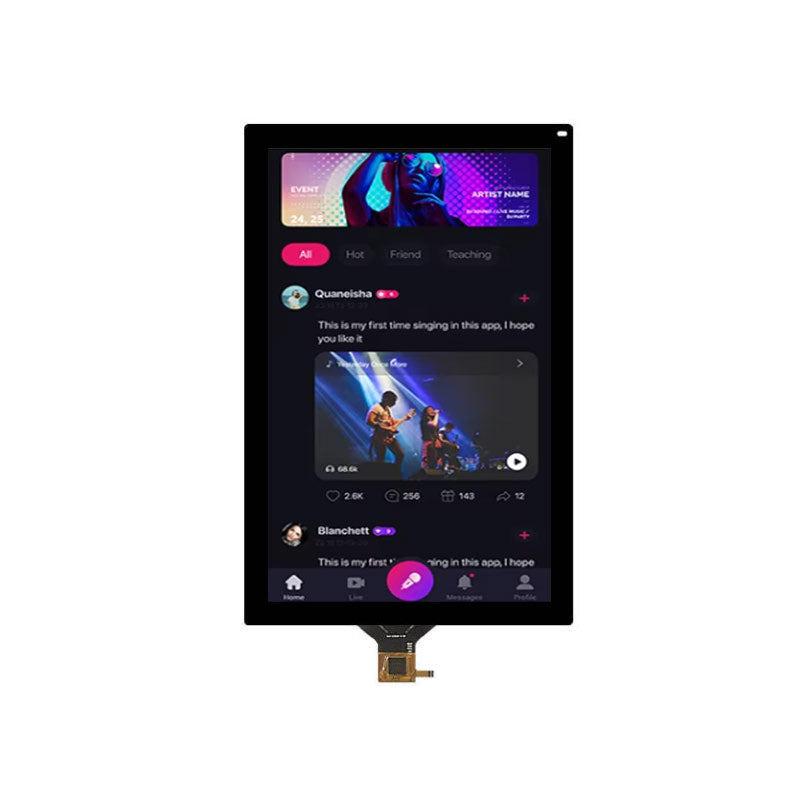

ET101WU16-TT is a 10.1-inch high-brightness IPS TFT LCD display with a 1200 × 1920 resolution in transmissive mode. It supports a MIPI interface and features capacitive touch functionality. The display delivers a typical brightness of 2000 cd/m² with wide 85° viewing angles in all directions. It has an active area of 135.36 × 216.58 mm and an outline dimension of 159.96 × 241.18 mm, operating reliably from −10 to 60 °C (storage −20 to 70 °C).

Part Number ET101WU16-TT Display Size 10.1 Inch
Resolution 1200 × 1920 Display Mode Transmissive IPS TFT LCD
Interface MIPI Touch Panel Capacitive Touch (PCAP)
Brightness 2000 cd/m² (Typ.) Viewing Angle 85°/85°/85°/85° (L/R/U/D)
Active Area 135.36 × 216.58 mm Outline Dimension 159.96 × 241.18 mm
Operating Temperature -10°C ~ 60°C Storage Temperature -20°C ~ 70°C

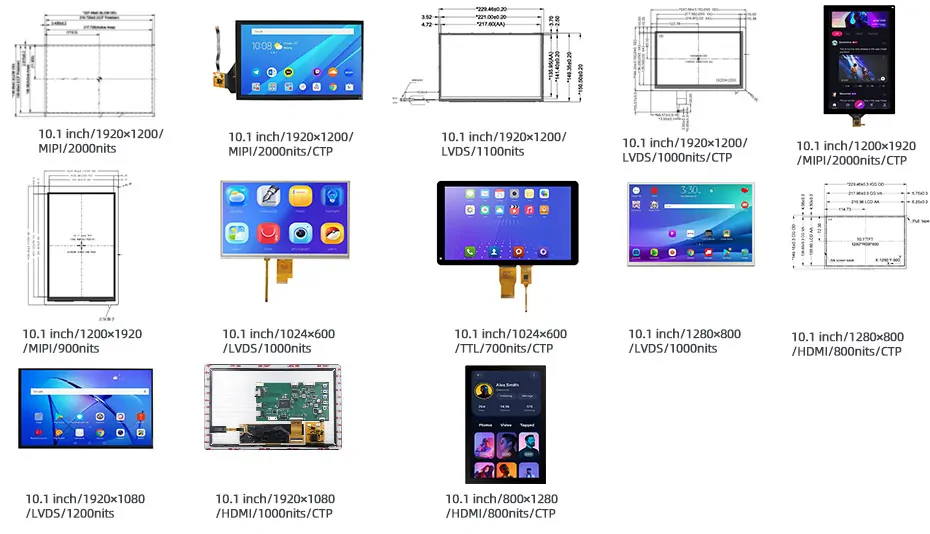

More 10.1 Inch High Brightness Display For Reference
ET101WU01-R (1920x1200, MIPI, 2000nits, -20~80°C, 229.46x149.1mm)
ET101WU01-YT (1920x1200, MIPI, 750nits, -40~70°C, 238.1x159.19mm, CTP)
ET101WU14-O (1920x1200, LVDS, 1100nits, -20~70°C, 229.4x150.5mm)
ET101WU15-TT (1920x1200, LVDS, 1000nits, -20~70°C, 229.1x148.9mm, CTP)
ET101WU16-TT (1200x1920, MIPI, 2000nits, -10~60°C, 159.96x241.18mm, CTP)
ET101WU13-TT (1200x1920, MIPI, 900nits, -10~60°C, 143x2288mm)
ET101WS01-ZK (1024x600, LVDS, 1100nits, -20~70°C, 235x143mm)
ET101WS06-TT (1024x600, TTL, 700nits, -20~70°C, 252x150mm, CTP)
ET101WX08-T (1280x800, LVDS, 1000nits, -20~70°C, 229.1x148.9mm)
ET101WX01-KDT-HDMI (1280x800, HDMI, 800nits, -20~70°C, 229.46x149.16mm, CTP)
ET101FH01-R (1920x1080, LVDS, 1200nits, -30~85°C, 236x142.1mm)
ET101HD01-KDT-HDMI (1920x1080, HDMI, 1000nits, -20~70°C, 260x160mm, CTP)
ET101WX05-TT-HDMI (800x1280, HDMI, 800nits, -20~70°C, 159x244.6mm, CTP)
