10.3 Inch Serial Screen 1920x720 Ethernet RS232 Automotive Grade Serial TFT Display With Capacitive Touch

10.3 Inch Serial Port Screen Overview

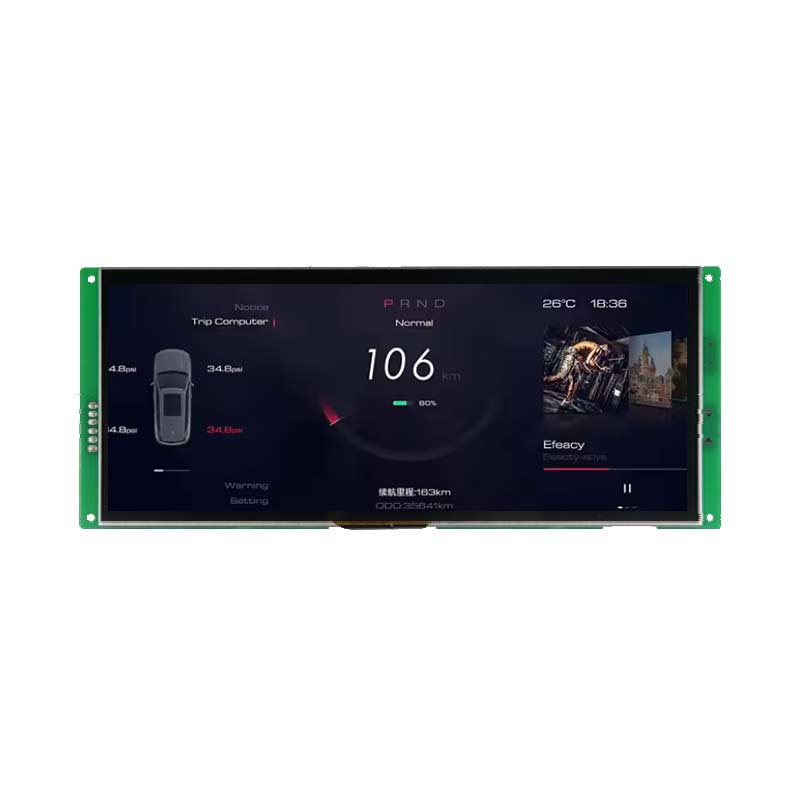

The ET103BA1972-DC/C is a 10.3-inch diagonal serial TFT display with a resolution of 1920×720. It features a serial interface, TFT display mode, and an active area of 243.6×91.4 mm within an outline of 283×116×31.1 mm. The display delivers high brightness of 1000 cd/m², 85° viewing angles in all directions, supports capacitive touch, and operates over an automotive-grade temperature range of –40 °C to 80 °C.
Product Model
ET103BA1972-DCC(Capacitive touch)
ET103BA1972-DCN(No touch)
10.3 Inch Serial Port Screen Product Parameters
Product Series: Automotive Grade IoT Type
Core processor: 800MHz 32-bit dual-core processor
Operating system: embedded real-time operating system
Protocol type: Default Dacai configuration instruction set, the host computer can be configured to run MODBUS RTU and XGUS protocols.
Size: 10.3 inches
Resolution:1920x720
Installation direction: Supports 0, 90, 180 and 270 degree rotation installation display.
Storage space: 1Gbit
Font library: Built-in vector fonts, edge anti-aliasing processing, including any size dot matrix ASCII, GBK, GB2312, UNICODE font library, any computer font display can be customized.
Image storage: Supports JPEG, PNG (semi-transparent/fully transparent) compression, supports image storage of any size, and supports image rotation, enlargement, reduction and other functions. A total of approximately 272 full-screen pictures can be stored (calculated based on size 480KB/picture, BMP format is not recommended). Depending on the image compression ratio, this value will fluctuate up and down.
Color: 65K colors, 16-bit RGB
Voltage: 12-40V (error ±0.2V)
Power consumption
Darkest without speaker: 3.0W
The darkest speaker: 6.8W
Brightest without speakers: 12.3W
The brightest speaker: 16.9W
Communication method: RS232/TTL (factory default 232 level).
Communication baud rate: RS232: 1200~921600bps, typical baud rate: 115200 bps
Communication connector specifications:HY2.0-8P
Image download: U disk/SD card/UART (the U disk must be in FAT32 format and has never been used as a computer system boot disk).
Real-time clock (RTC): supports countdown, timer, year, month, day and other time display.
Effective display area of the screen: 243.6mm×91.4mm
Product size: 283.0mm×116.0mm×31.1mm
Supporting host computer software: VisualTFT®
AV input: not supported
Sound playback: MP3 audio format (speaker 4Ω 2W, mono), shares storage space with pictures. If the sampling rate is 128kbps, it will occupy 0.95MB/minute of storage.
Audio connector specifications: PH2.0-2P
Video playback: MP4 video format, sharing storage space with pictures. If a video file has a resolution of 800*480, a video bitrate of 2400Kbps, an audio bitrate of 166Kbps, and a frame rate of 25Hz, it will occupy 17.8MB/minute of storage.
Ethernet interface: supports Ethernet protocol
CAN interface: not supported
WIFI: not supported

Reliability parameters
Working temperature: -40～+85℃
Storage temperature: -40～+85℃
Vibration test: 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
Certification: ROHS, CE certification (EMI level: EN55022 ClassB standard)

Core competitiveness of products
Learning cycle: 30 minutes to familiarize yourself with the development environment, 3 days to complete human-computer interaction design.
Program debugging: The host computer integrates a "virtual serial port screen," eliminating the need for hardware connection and allowing direct Keil debugging. IDE-bound debugging
Startup Time: Runs instantly upon power-up, eliminating system loading time
Configuration Controls: Features a variety of configuration controls, including multi-language controls, buttons, text, drop-down menus, progress bars, sliders, meters, animations, QR codes, curves, data loggers, circular progress bars, and sub-screen slide controls.
System Keyboard: Built-in virtual numeric and character keyboards, supporting Chinese and English input methods, and customizable keyboards.
Data Logging: Supports exporting data logger content to an SD card.
Layer Technology: Multiple display layers are built into the system for faster switching.
Multilingual Capability: Factory-preset up to 15 global languages, enabling one-click switching without the need for multiple UIs.
Logical Operation Processing: The host computer has an embedded LUA script parser, allowing users to customize complex logic relationships and protocols within the screen, meeting 99.9% of customer product requirements.
Remote Upgrade: Supports remote serial port upgrades of display firmware, project files, specified images, configuration files, and fonts.
Lifecycle: Utilizes a traditional, leading-edge processor, ensuring long-term supply.

10.3 Inch Serial Port Screen
Backlight: LED
Brightness (cd/m²): 1000
Backlight Lifespan (hours): >20,000
Contrast Ratio: 1400:1
Viewing Angles (L/R/T): 85/85/85/85

Touch panel
Touch Type: Capacitive Touchscreen
Capacitive Touch Modes: Single-touch and Slide Touch
Capacitive Touch Transmittance: Over 90%
Capacitive Touch Lifespan: Theoretically, unlimited touches are possible; touch lifespan is dependent on operating environment (dust and humidity).

Customized services
Customization Fees: For orders of 1,000 units, some customization fees may be waived.
Hardware Circuits: Customizable PCB size, circuit thickness, custom circuitry, military-grade temperature display, and more.
Software Customization: Customizable instructions or controls based on user needs, reducing development effort.
Design Services: Graphic design and product structure design services available.
Other: Customizable on demand to meet all user needs.
