10 Inch Square Display IPS 1200×1200 High Brightness 1200nits MIPI TFT LCD Display

10 Inch Square Display IPS 1200×1200 High Brightness 1200nits MIPI TFT LCD Display

$111.95 USD
$111.95 USD
Sale Sold out
More 10 Inch Square Display Soulution
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


10 Inch Square Display Overview
ET100SQ01-GX is a 10-inch diagonal square TFT LCD display featuring a 1200×1200 resolution and a MIPI interface. ET100SQ01-GX adopts a transmissive display mode with an active area of 179.82(W)×179.82(H) mm and an outline dimension of 185.82(W)×192.32(H) mm. It provides 1000 cd/m² typical display brightness and a wide viewing angle of 85°/85°/85°/85° (L/R/U/D). The display operates reliably across a temperature range of -20°C to 70°C and supports a storage temperature range of -30°C to 80°C. The module does not include a touch panel.

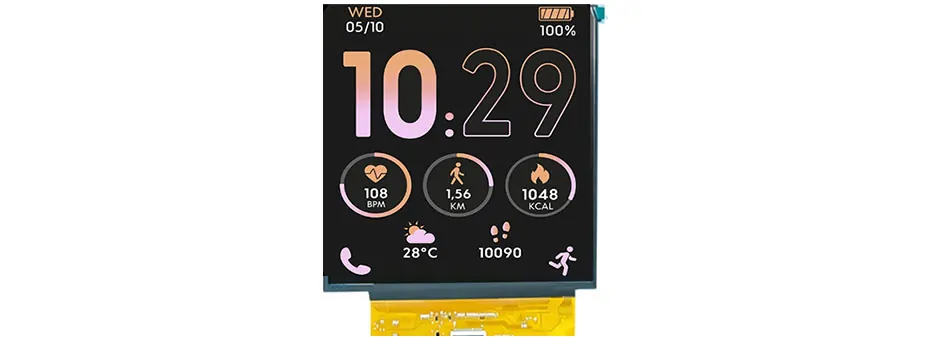

10 Inch Square Display 1200×1200 IPS High Brightness 1200nits MIPI TFT LCD Display

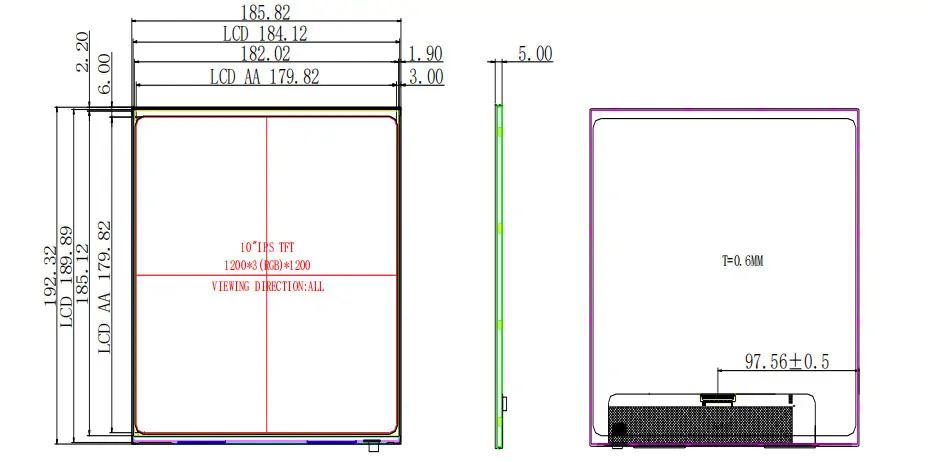

10 Inch Square Display Drawing  10 Inch Square Display 1200×1200 IPS High Brightness 1200nits MIPI TFT LCD Display

More 10 Inch Square Display  Specification

Part No. ET100SQ01-GX Size 10 inch
Resolution 1200 × 1200 Display Mode Transmissive
Panel Interface MIPI Touch Panel No
Outline Dimension 185.82 × 192.32 mm Active Area 179.82 × 179.82 mm
Viewing Angle (L/R/U/D) 85 / 85 / 85 / 85 Brightness 1000 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C

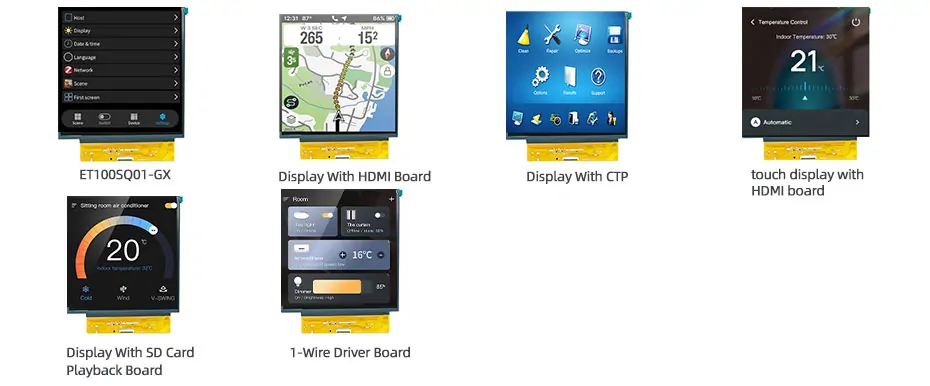

More 10 Inch Square Display Soulution For Reference

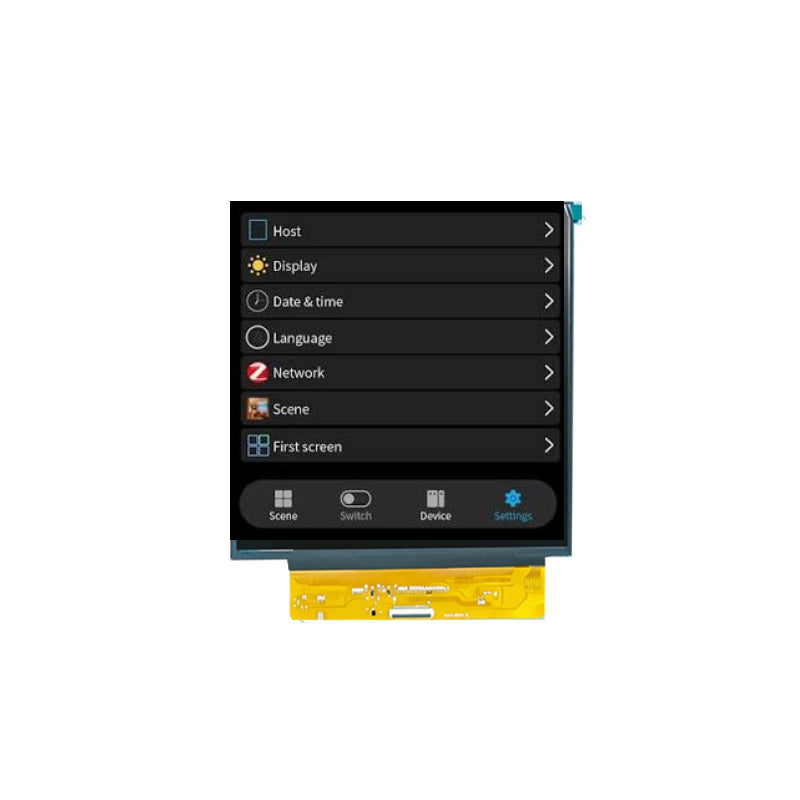

ET100SQ01-GX

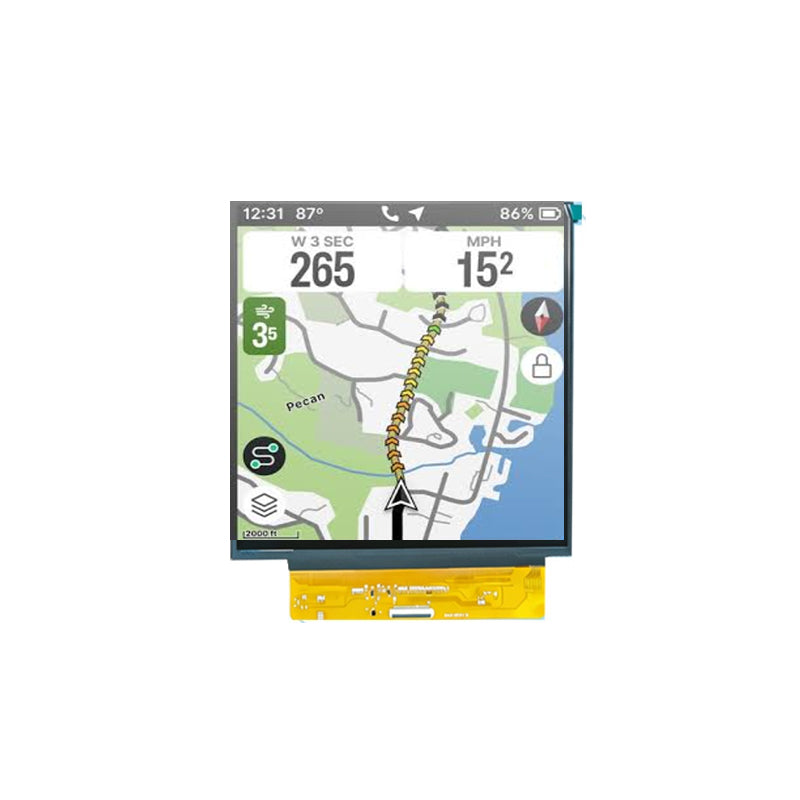

ET100SQ01-GX display with HDMI board

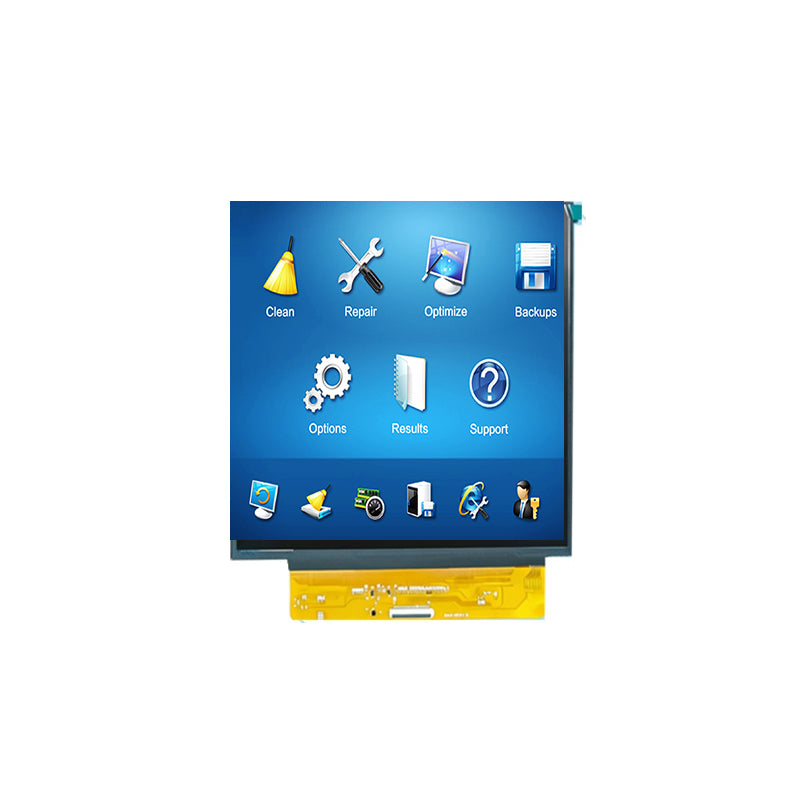

ET100SQ01-GX display with CTP

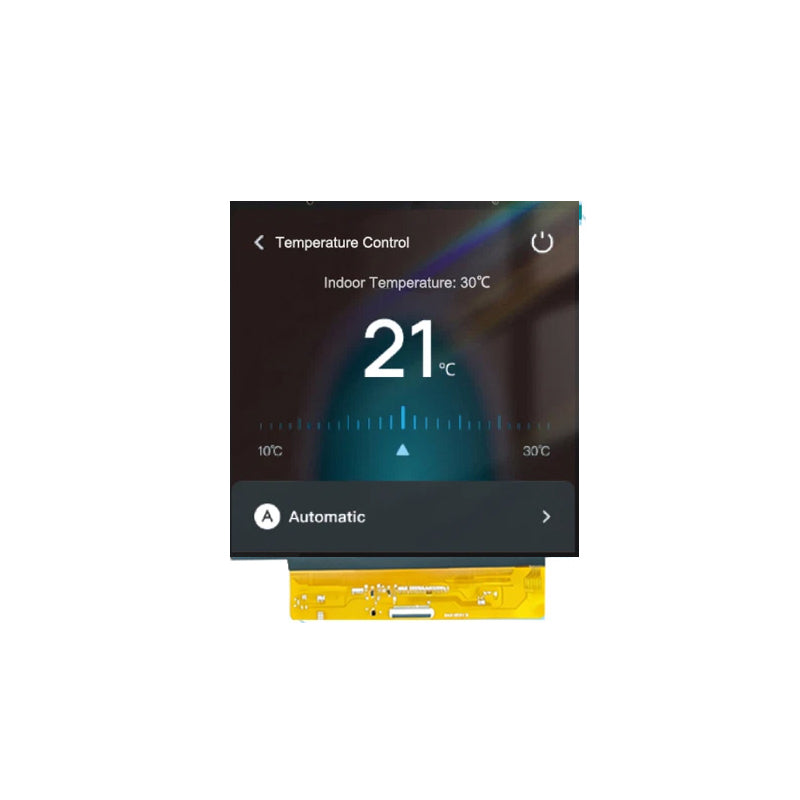

ET100SQ01-GX touch display with HDMI board

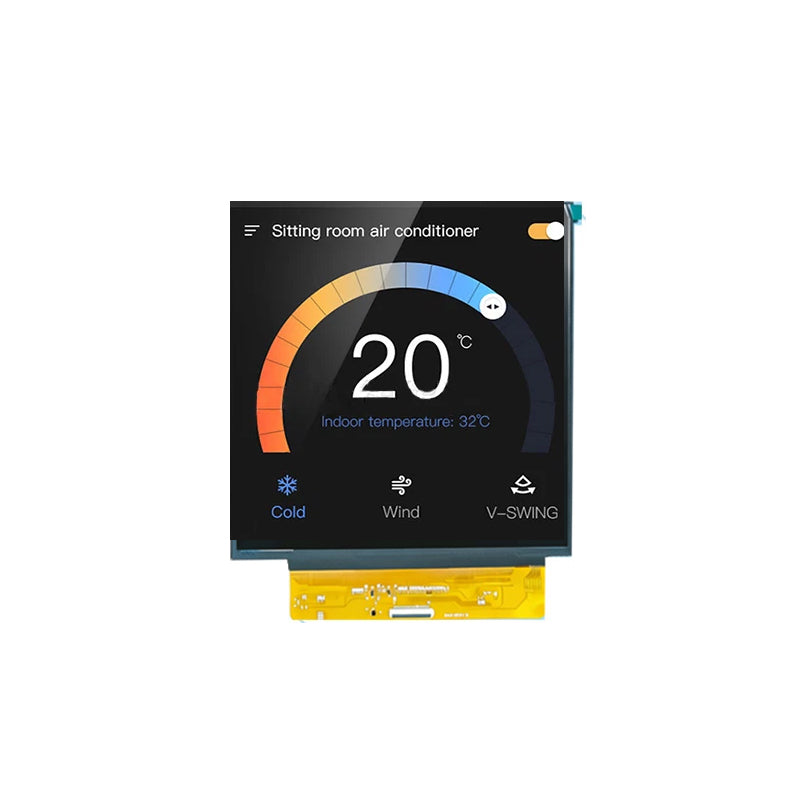

ET100SQ01-GX display with SD card playback board

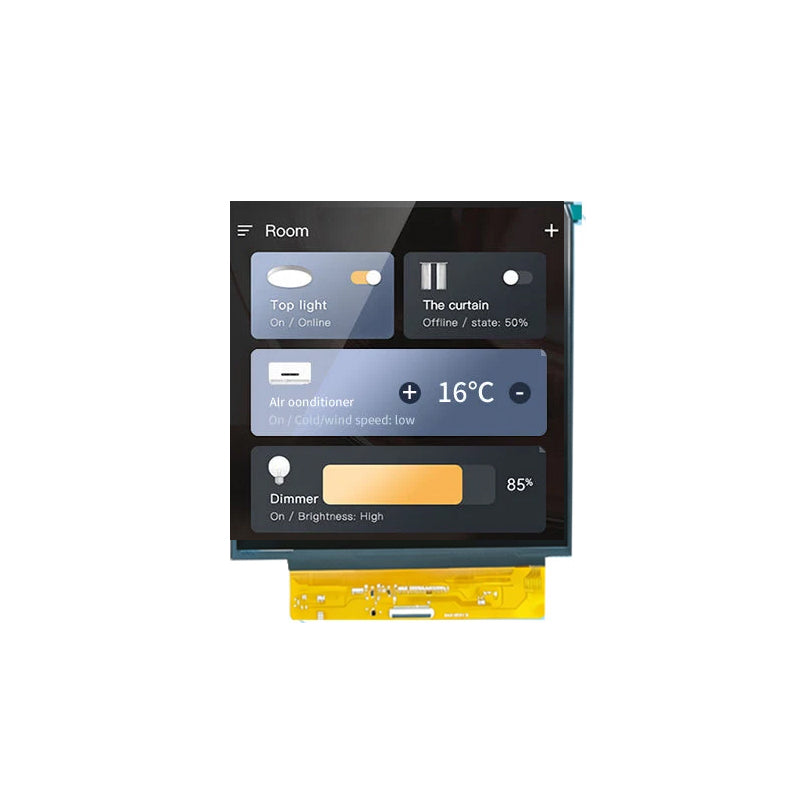

1-Wire driver board

10 Inch Square Display 1200×1200 IPS High Brightness 1200nits MIPI TFT LCD Display
