11.3 Inch 440×1920 Stretched LCD Display 40-Pin MIPI Bar Display with Touch & HDMI Driver Board

11.3 Inch 440×1920 Stretched LCD Display 40-Pin MIPI Bar Display with Touch & HDMI Driver Board

$85.70 USD
$85.70 USD
Sale Sold out
11.3 Inch Bar Displays Solution
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


11.3 Inch Stretched Bar Display Overview
QV101F6M-N10-MO01 is an 11.3-inch diagonal stretched LCD display designed for bar-type and secondary display applications. It supports a resolution of 440×1920, with a 40-Pin MIPI interface and Normally Black display mode. It features an outline dimension of 64.98(W)×266.44(H)×4.6(D) mm and supports a wide viewing angle of ALL directions (L/R/U/D). QV101F6M-N10-MO01 provides a display brightness of 500 cd/m² and supports an operating temperature range of -20°C to 70°C. The display can be equipped with a touch panel and an HDMI driver board, making it suitable for applications requiring touch interaction, MIPI connectivity, and stretched bar displays.
11.3 Inch 440×1920 Stretched LCD Display 40-Pin MIPI Bar Display with Touch & HDMI Driver Board11.3 Inch Stretched Bar Display  Specification

Part No. QV101F6M-N10-MO01 Size 11.3 inch
Resolution 440 × 1920 Display Mode Normally Black
Panel Interface 40-Pin MIPI Touch Panel Yes
Outline Dimension 64.98 × 266.44 × 4.6 mm Active Area N/A
Viewing Angle (L/R/U/D) ALL Brightness 500 cd/m²
Operation Temp. -20 ~ 70°C Storage Temp. N/A



11.3 Inch Stretched Bar Display Drawing

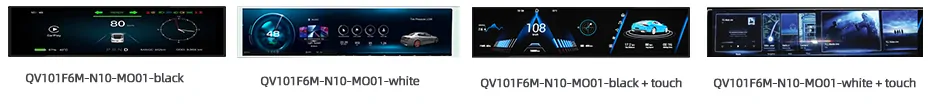

11.3 Inch Bar Displays Solution For Reference

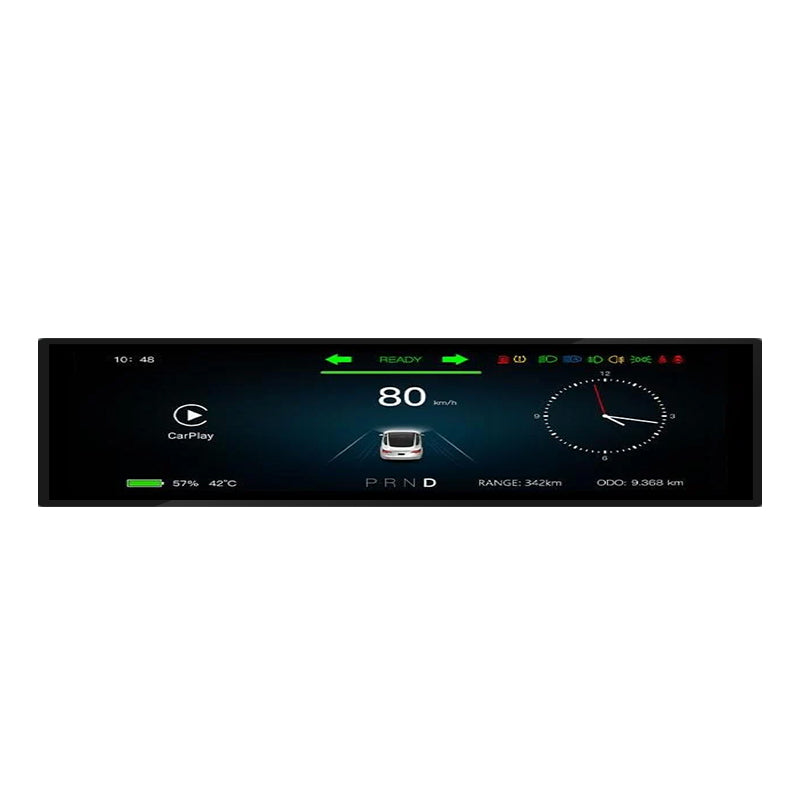

QV101F6M-N10-MO01-black

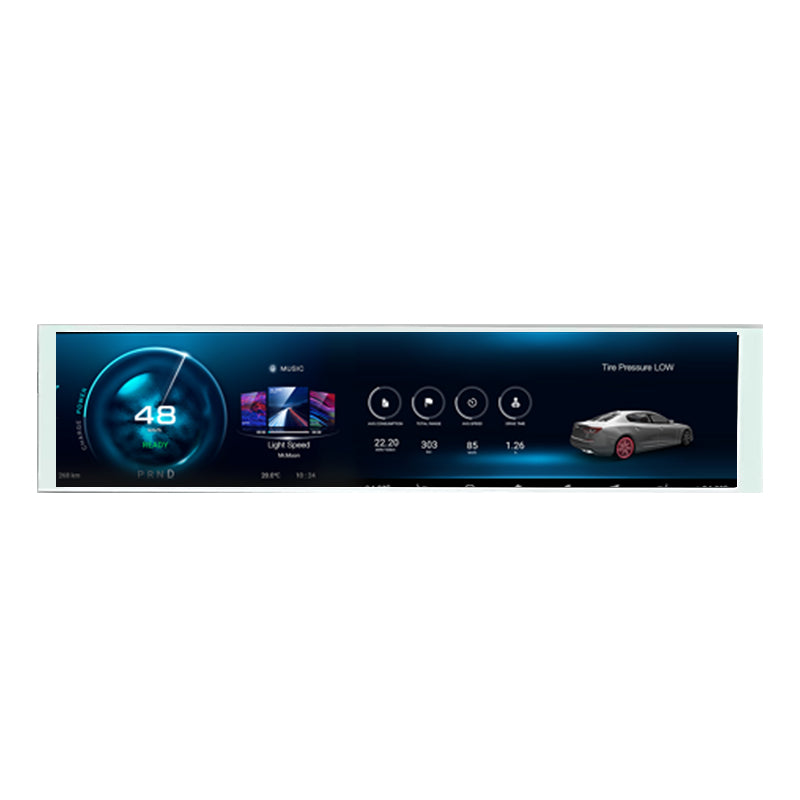

QV101F6M-N10-MO01-white

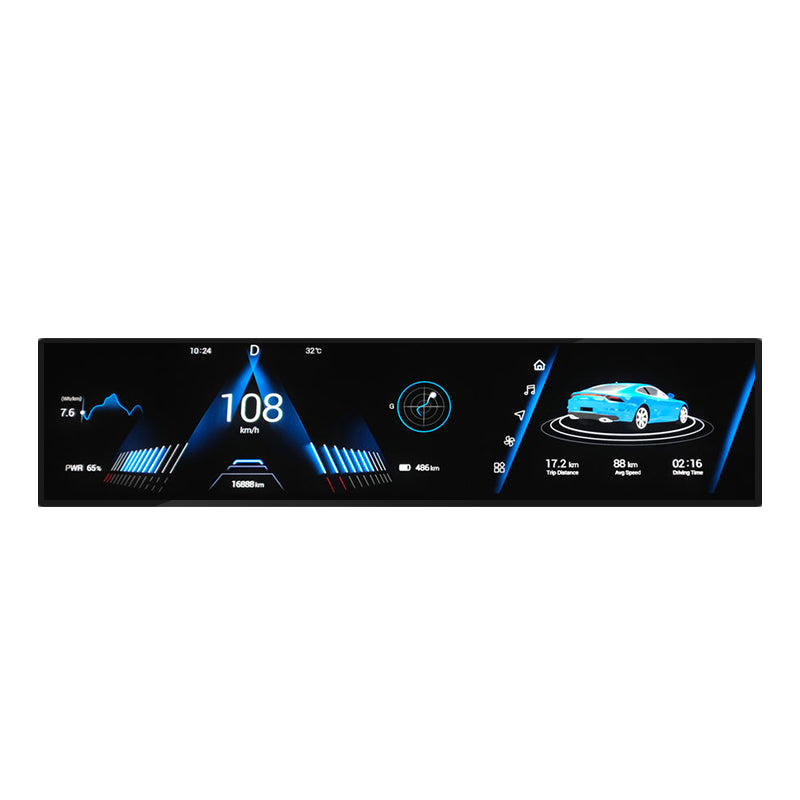

QV101F6M-N10-MO01-black + touch

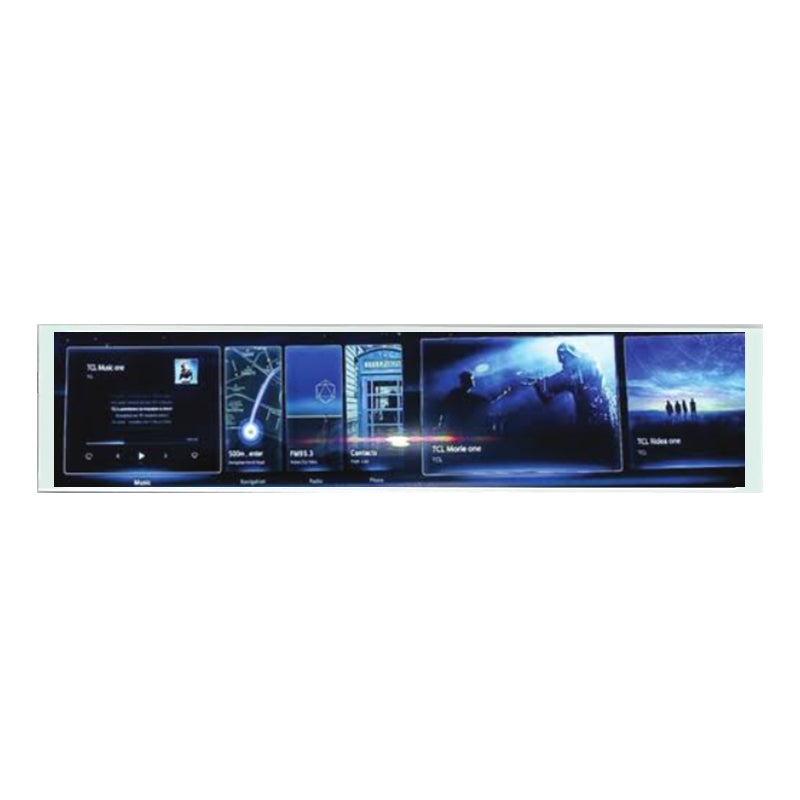

QV101F6M-N10-MO01-white + touch
11.3 Inch 440×1920 Stretched LCD Display 40-Pin MIPI Bar Display with Touch & HDMI Driver Board

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.


Production and Manufacturing

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
