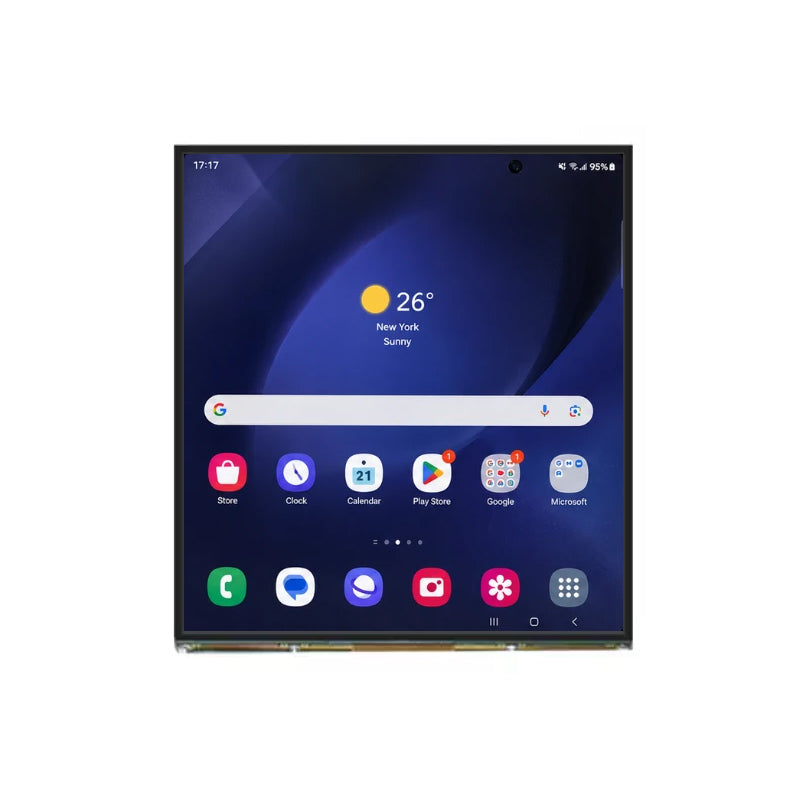

12.8 Inch AMOLED Display 1728×1888 LVDS OLED Screen

12.8 Inch AMOLED Display 1728×1888 LVDS OLED Screen

$770.67 USD
$770.67 USD
Sale Sold out
ET128AM01-K
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


12.8 Inch AMOLED Display Overview
ET128AM01-K is a 12.8-inch AMOLED display module featuring a resolution of 1728×1888 and an RGB 8-bit color depth for vivid and accurate image reproduction. It offers a 105% color gamut, a typical brightness of 600 cd/m², a contrast ratio of 100000:1, a response time of 3 ms, and full viewing angles, delivering high-quality visuals with rich colors and sharp details. The display features a pixel pitch of 0.1266(H) × 0.1266(V) mm, a viewing area of 219.76(W) × 240.02(H) mm, a pixel array area of 218.76(W) × 239.02(H) mm, and an outline dimension of 224.76(W) × 248.02(H) × 5.80(D) mm. This self-emissive AMOLED panel integrates the HX8160-G01 driver IC and uses an LVDS interface with a 50-pin connector and 0.5 mm pin pitch for system integration. Operating at a typical voltage of 3.3 V, ET128AM01-K offers a service life of up to 10000 hours. Designed for demanding environments, it supports operating temperatures from -40°C to +85°C and storage temperatures from -40°C to +90°C, making it suitable for industrial control systems, rugged equipment, professional displays, and other applications requiring a high-brightness AMOLED display with a wide operating temperature range.

ET128AM01-K 12.8 Inch AMOLED Display Specifications

Parameter Specification Parameter Specification
Model Number ET128AM01-K Display Size 12.8 Inch
Display Type AMOLED Resolution 1728 × 1888
Display Colors RGB 8-bit Color Gamut 105%
Brightness 600 cd/m² Contrast Ratio 100000:1
Viewing Angle Full Viewing Angle Response Time 3 ms
Display Driver IC HX8160-G01 Interface LVDS
Pin Count 50 Pins Pin Pitch 0.5 mm
Viewing Area 219.76 × 240.02 mm Pixel Array Area 218.76 × 239.02 mm
Pixel Pitch 0.1266 × 0.1266 mm Outline Dimensions 224.76 × 248.02 × 5.80 mm
Touch Function Non-Touch Display Connector Type Plug-in Connector
Operating Voltage 3.3 V Service Life 10,000 Hours
Operating Temperature -40°C to +85°C Storage Temperature -40°C to +90°C

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.

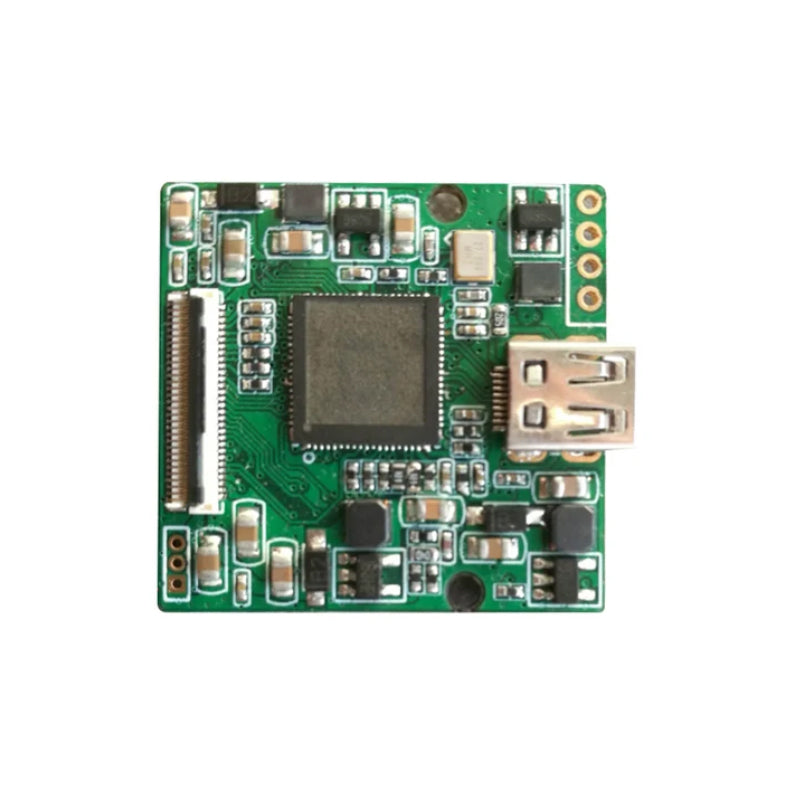

The demo board is a development tool for quickly lighting up and evaluating a display.
