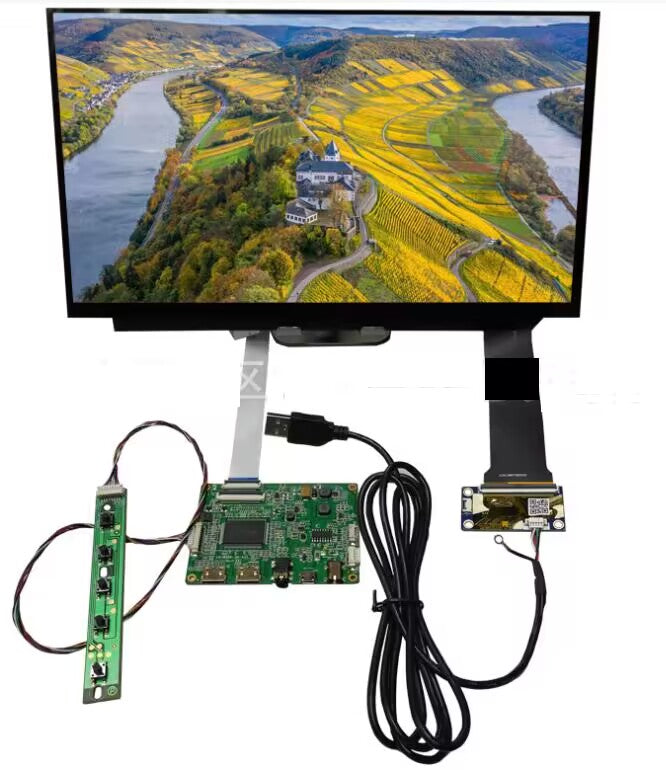

13.3" Capacitive Touch Screen 1920x1080 LCD With HDMI Connection

13.3" Capacitive Touch Screen 1920x1080 LCD With HDMI Connection

$117.80 USD
$117.80 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

1.Overview
- Size 13.3 inch type a-Si TFT-LCD, liquid crystal module
- Resolution 1920 (RGB) × 1080
- Display area 293.76 (horizontal) × 165.24 (vertical) mm
- Appearance size: 299.96 (horizontal) × 186.92 (vertical) × 2.2 (thickness) mm
- Opening area-surface treatment mirror (Haze 0%), Hard coating (3H)
- Display brightness 300 cd/m² (Typ.) Contrast ratio 800:1 (Typ.) (Transmission)
- Viewing angle 85/85/85/85 (Typ.)(CR≥10) left/right/up/down
- Display mode AAS, normally black display, transmissive
- Interface type 30 pins eDP (2 Lanes), terminal
- Voltage supply 3.3V (Typ.)
- Application environment
working temperature: 0 ~ 50 °C;
Storage temperature: -20 ~ 60 °C

2.Common parameters of touch panel: (10-point touch USB interface type)
- Right angle; uneven black edges around the edges (embedded type)
- Structure size: 302.77mmX177.45mm
- Touch area size: 294.4mmX165.6mm
- Touch cable length: 88.04mm
- Support linux window7 8 10 and Android system plug and play (Android kernel 3.1 system 5.1 or higher; linux kernel 3.5 or higher)


3. Common parameters of display driver motherboard (main chip RTD2550):
- Physical resolution 1920X1080 point-to-point display
- Length*width*thickness: 82*60*1.2m
- Input HDMI (2) HDMI (T.M.D.S) digital signal
- Output PANEL interface 0.5mm pitch 30PIN front flip FFC connector
- Output headphone output supports horizontal socket
- Power input power: 5V USB input, 12V DC input, dual power input (single power input is also available)
- Screen drive voltage 3.3V
- Motherboard standby power consumption <0.3W
-OSD menu (brightness, contrast, automatic correction, phase, clock, line and field position, function settings, reset, etc.)
-OSD language Chinese, English, etc.
- Press the POWER/ ENTER /MENU/ UP/ DOWN 5 keys
