13.3 Inch Color E-Paper Display 1600×1200 QSPI E Ink E6 Display Module
13.3 Inch Color E-Paper Display 1600×1200 QSPI E Ink E6 Display Module
Couldn't load pickup availability
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
Product Introduction
13.3 Inch Color E-Paper Display 1600×1200 QSPI E Ink E6 Display Module Overview
ET133EP04 is a 13.3-inch Color E-Paper Display (EPD) module featuring a resolution of 1600×1200 pixels and a QSPI interface for efficient data transmission. It utilizes E Ink E6 technology to deliver high-quality color electronic paper images with low power consumption. The module has an outline dimension of 208.8(W) × 284.7(H) × 0.85(D) mm and an active display area measuring 202.8(W) × 270.4(H) mm. It supports an operating temperature range of 0°C to 50°C and a storage temperature range of -25°C to 50°C. The module does not include touch functionality, making it suitable for e-readers, electronic notebooks, digital signage, smart retail displays, information boards, and other large-format color E Ink applications.
13.3 Inch E Ink Display Specification
| Part No. | ET133EP04 | Size | 13.3 inch |
| Resolution | 1600 × 1200 | Display Mode | EPD |
| Panel Interface | QSPI | Touch Panel | No |

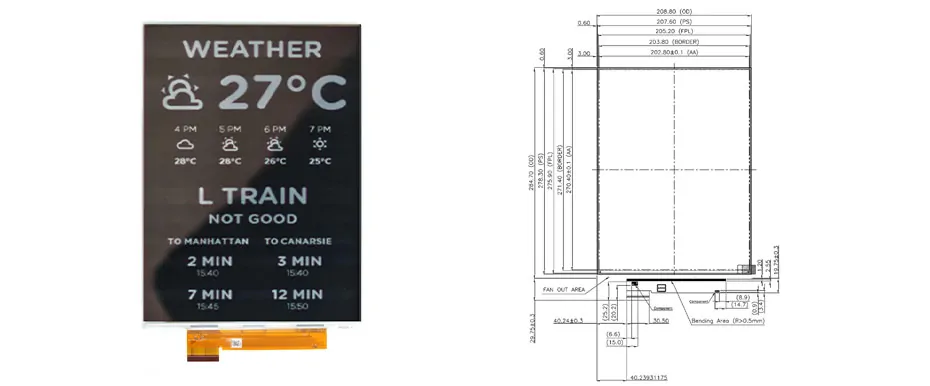

| Outline Dimension | 208.8 × 284.7 × 0.85 mm | Active Area | 202.8 × 270.4 mm |
| Viewing Angle (L/R/U/D) | N/A | Brightness | N/A |
| Operation Temp. | 0 ~ 50°C | Storage Temp. | -25 ~ 50°C |

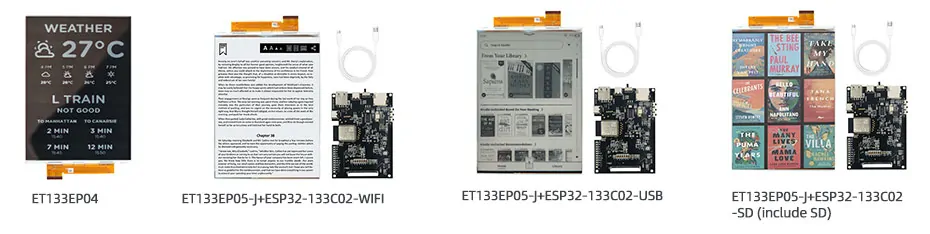

13.3 Inch E Ink Display Solution For Reference

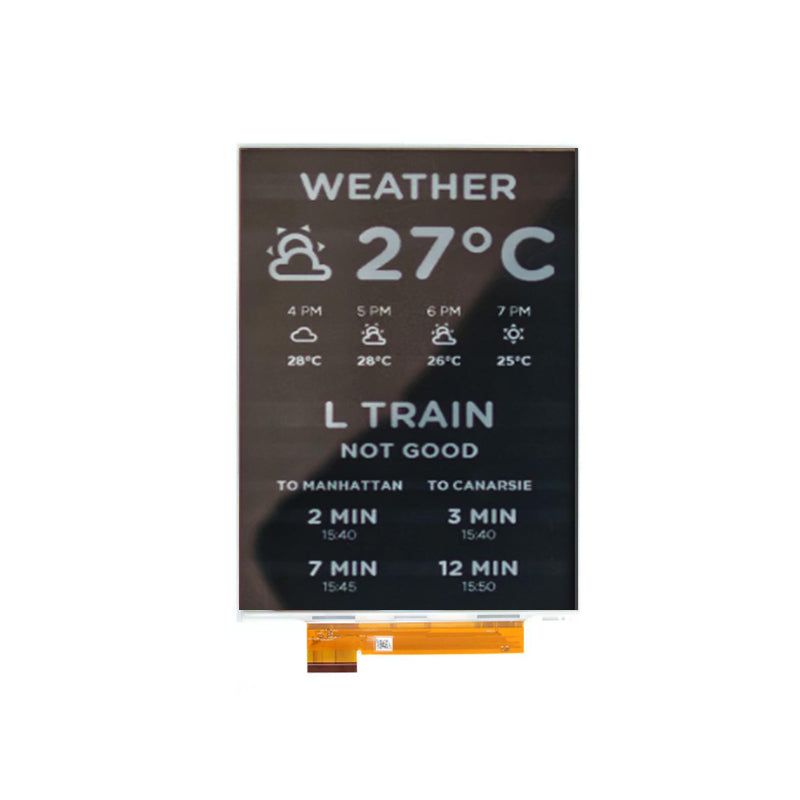

ET133EP04

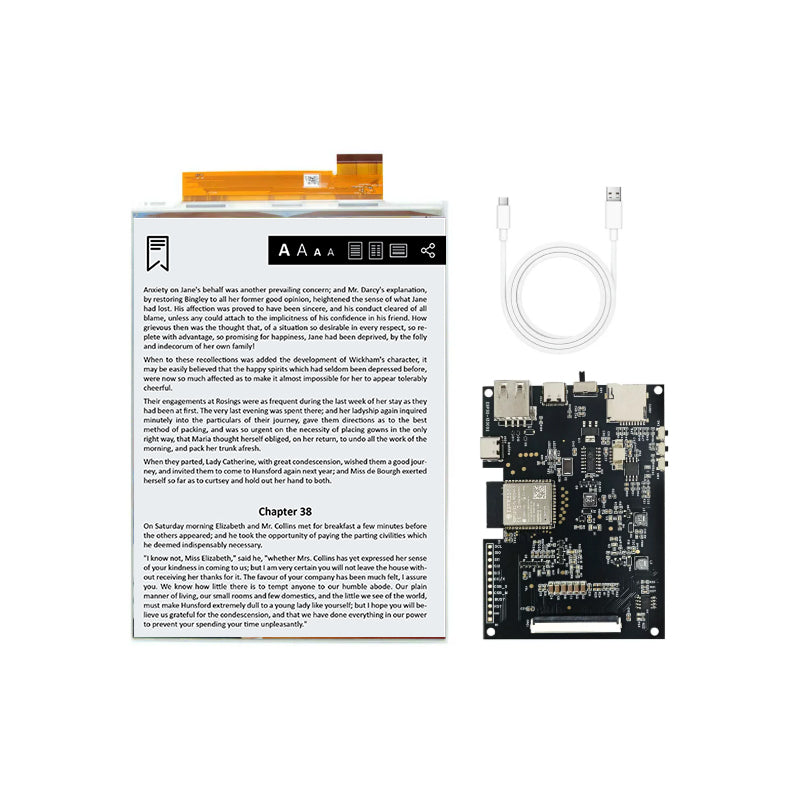

ET133EP05-J+ESP32-133C02-WIFI

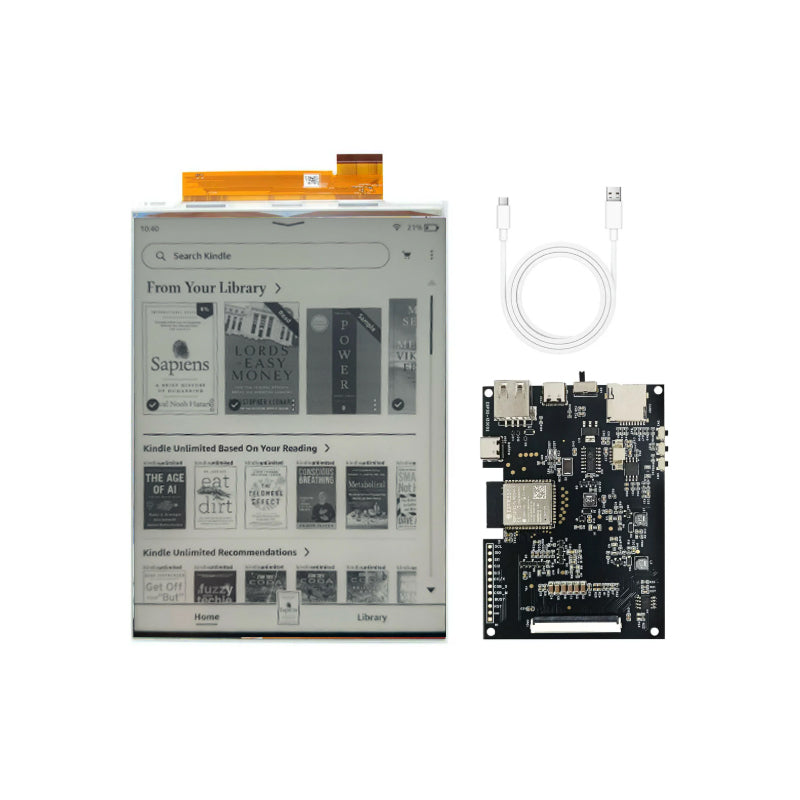

ET133EP05-J+ESP32-133C02-USB

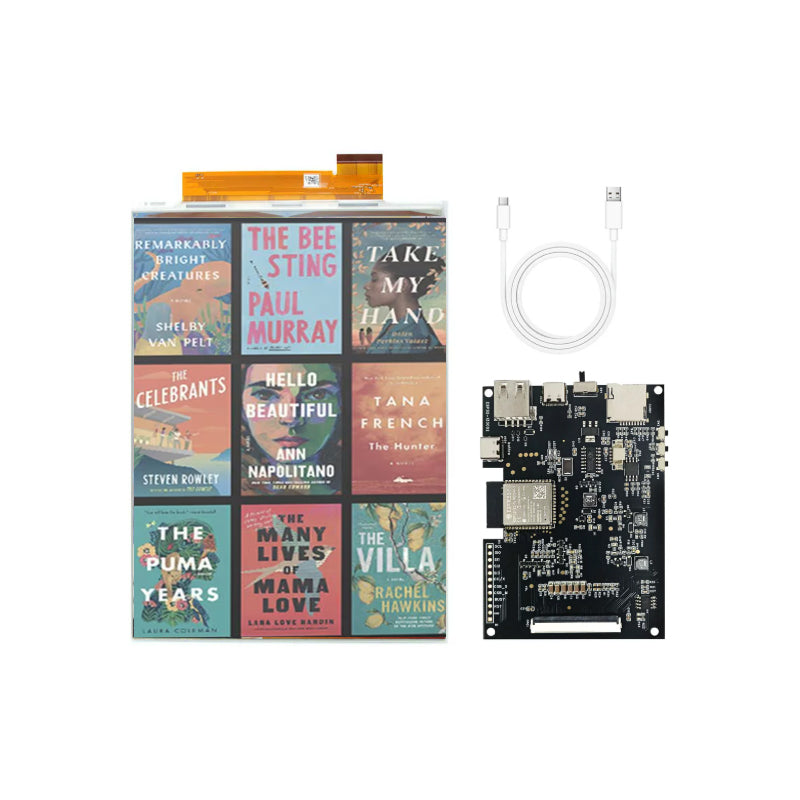

ET133EP05-J+ESP32-133C02-SD (include SD)
ESP32-133C02
Features For Youritech E-Paper Display
Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.
-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
Customization & Manufacturing
Quality is constant
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
