13.3 Inch Flexible AMOLED Display 1536×2048 eDP OLED Display

13.3 Inch Flexible AMOLED Display 1536×2048 eDP OLED Display

$685.90 USD
$685.90 USD
Sale Sold out
ET133QXFL01-K
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


13.3 Inch AMOLED Display Overview

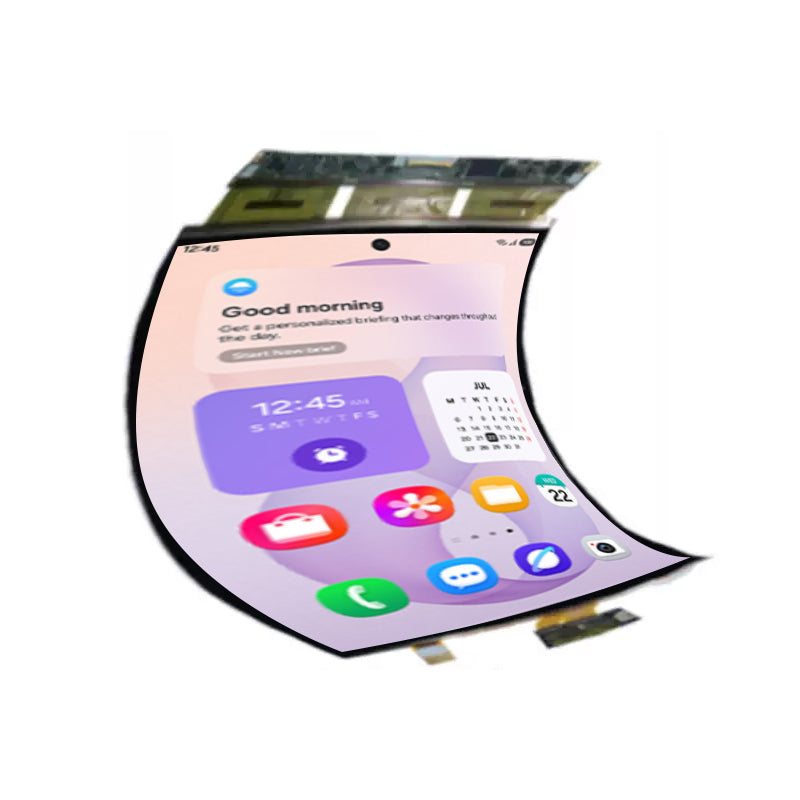

ET133QXFL01-K is a 13.3-inch flexible AMOLED display featuring a resolution of 1536×2048 and an eDP interface. It supports 16.7 million colors and a 111% color gamut, delivering vivid colors and detailed images. With a brightness of 300 cd/m², a 5000:1 contrast ratio, a fast 2 ms response time, and full viewing angles, this display provides clear visual performance for a range of applications. Its flexible AMOLED technology and slim 0.53 mm profile allow for integration into space-constrained device designs. The module measures 213.80 × 284.80 × 0.53 mm, with an active display area of 202.75 × 270.34 mm and a pixel pitch of 0.132 × 0.132 mm. It features a 40-pin connector with a 0.5 mm pitch and operates at 3.3 V. Designed for specific operating environments, the display supports temperatures from 0°C to +50°C during operation and -20°C to +60°C during storage, with a rated service life of 15,000 hours. This 13.3-inch non-touch flexible AMOLED panel is suitable for portable electronic devices, specialized display systems, and other applications requiring a slim profile and high-resolution image quality.

Model ET133QXFL01-K 13.3 Inch Flexible AMOLED Display 1536×2048 eDP OLED Display
Size 13.3" Touch No
Touch Type None Display Mode Flexible AMOLED
Display Colors 16.7M Color Gamut 111%
Response Time 2ms Resolution 1536x2048
Dot Pitch 0.132(H)*0.132(V) Viewing Angle All viewing angle
Driver IC TBD Outline Dimension 213.80*284.80*0.53mm
Active Area -- Dot Area 202.75*270.34mm
Brightness 300cd/m² Contrast Ratio 5000:1
Interface EDP Pin Count 40
Pin Pitch 0.5mm Touch Interface --
Touch IC -- Connection Type Plug-in type
Operating Voltage 3.3V Operating Life 15000h
Operating Temperature 0°C~+50°C Storage Temperature -20°C~+60°C



AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.

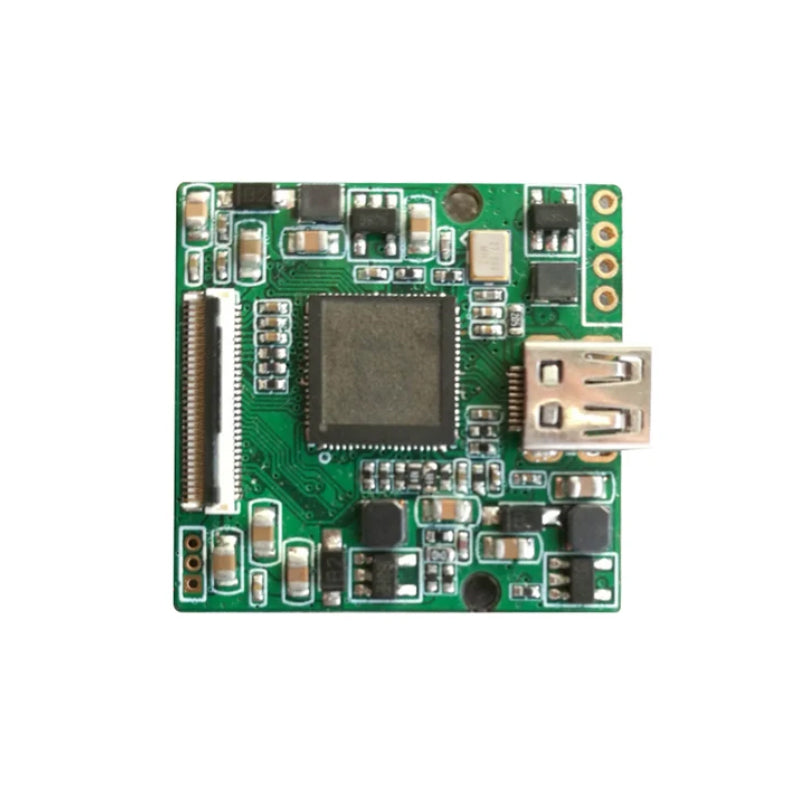

The demo board is a development tool for quickly lighting up and evaluating a display.
