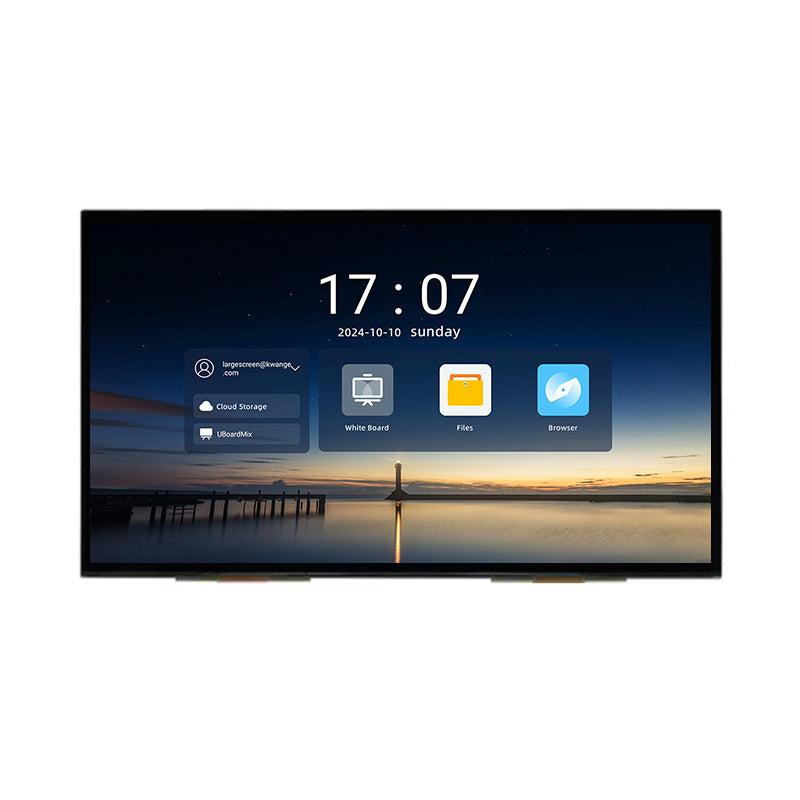

13 Inch AMOLED Display LTPS 2560×1440 eDP Wide Temperature OLED Display with On-Cell Touch

13 Inch AMOLED Display LTPS 2560×1440 eDP Wide Temperature OLED Display with On-Cell Touch

$768.42 USD
$768.42 USD
Sale Sold out
ET130AM01-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


13 Inch AMOLED Display Overview
ET130AM01-KT is a 13-inch LTPS AMOLED display featuring a resolution of 2560×1440, delivering sharp images and fine details. As for mechanical details, it features a dot matrix area of 286.69(W)×161.27(H) mm and an outline size of 292.69(W)×168.27(H)×2.10(D) mm. ET130AM01-KT provides 800 cd/m² display brightness, full viewing angles, and a 65.97% color gamut. It supports RGB 8-bit color depth and 10-bit input for detailed image reproduction. This product utilizes LTPS AMOLED technology with an On-Cell touch structure, combining high-resolution visuals with integrated touch functionality. ET130AM01-KT uses an eDP 1.2 interface for signal transmission and features an RM98120 driver IC. It operates at 3.3V and supports a wide operating temperature range from -40°C to +85°C, making it suitable for demanding industrial and outdoor environments. With a rated lifetime of 30,000 hours and a storage temperature range of -40°C to +90°C, this display is designed for applications requiring high brightness, reliable performance, and wide-temperature operation.

Model ET130AM01-KT  13 Inch LTPS AMOLED Display 2560×1440 eDP Wide Temperature OLED Display with On-Cell Touch
Display Mode AMOLED Display Color RGB 8 bit, support 10 bit input
Color Gamut 65.97% Resolution 2560x1440
Dot Pitch 0.11199(H)*0.11199(V) Viewing Angle All viewing angle
Driver IC RM98120 Outline Dimension 292.69*168.27*2.10mm
Dot Area 286.69*161.27mm Brightness 800cd/m²
Interface eDP 1.2 Connection Type Plug-in type
Operating Voltage 3.3V Operating Life 30000h
Operating Temperature -40℃～+85℃ Storage Temperature -40℃～+90℃


AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
