14.2 Inch Flexible AMOLED Display 2650×1392 eDP LTPS Wide Temperature OLED Display

14.2 Inch Flexible AMOLED Display 2650×1392 eDP LTPS Wide Temperature OLED Display

$2,289.55 USD
$2,289.55 USD
Sale Sold out
ET142FL01-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


14.2 Inch AMOLED Display Overview

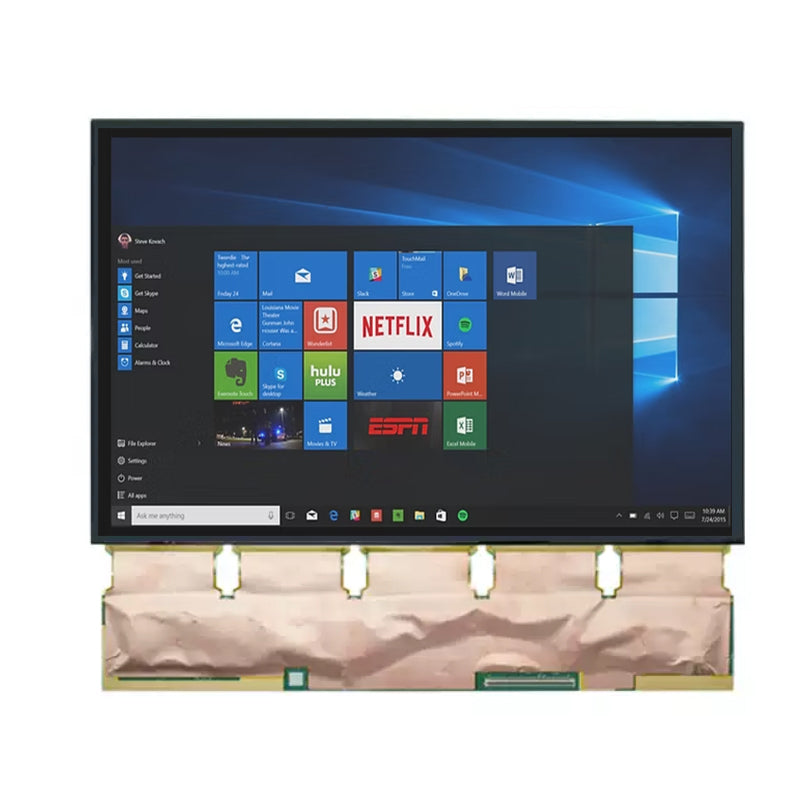

ET142FL01-KT is a 14.2-inch flexible AMOLED display featuring a 2650×1392 resolution and an eDP 1.4b interface. Built with LTPS technology, this display supports 8-bit and 10-bit color depth and a 100% color gamut, delivering vivid colors and detailed image quality. With a brightness of 650 cd/m², a contrast ratio of 10,000:1, and full viewing angles, it provides clear visuals across different viewing positions. The flexible panel features a slim profile with an outline dimension of 325.33 × 176.74 × 0.53 mm and a display area of 319.33 × 167.74 mm. It integrates capacitive touch functionality and uses an 80-pin plug-in connection, with a 3.3 V operating voltage. Designed for demanding environments, the display supports an exceptionally wide operating temperature range of -40°C to +85°C and a storage temperature range of -40°C to +90°C. This 14.2-inch flexible AMOLED display is suitable for applications requiring a slim form factor, high-resolution visuals, responsive touch interaction, and reliable performance under extreme temperature conditions.

Model ET142FL01-KT 14.2 Inch Flexible AMOLED Display 2650×1392 eDP LTPS Wide Temperature OLED Display
Size 14.2" Touch Yes
Touch Type Capacitive touch Display Mode AMOLED
Display Colors 8bit/10bit Color Gamut 100%
Response Time - Resolution 2650x1392
Dot Pitch 0.1205 (RealRGB) Viewing Angle All viewing angle
Driver IC -- Outline Dimension 325.33*176.74*0.53mm
Active Area   Dot Area 319.33*167.74mm
Brightness 650cd/m² Contrast Ratio 10000:1
Interface EDP1.4b Pin Count 80
Pin Pitch -- Touch Interface
Touch IC -- Connection Type Plug-in type
Operating Voltage 3.3V Operating Life
Operating Temperature -40°C~+85°C Storage Temperature -40°C~+90°C

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.

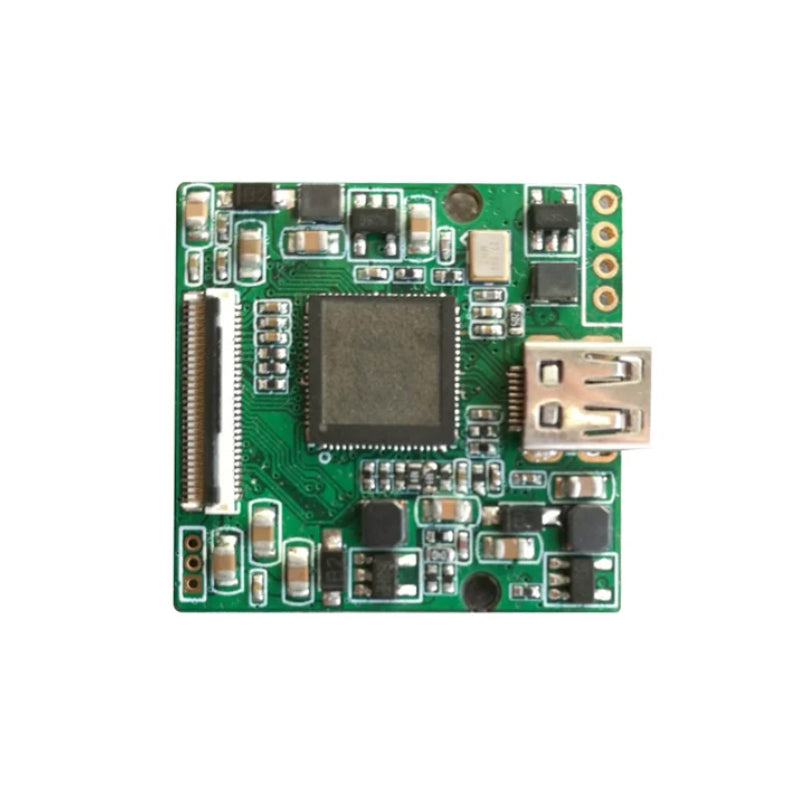

The demo board is a development tool for quickly lighting up and evaluating a display.
