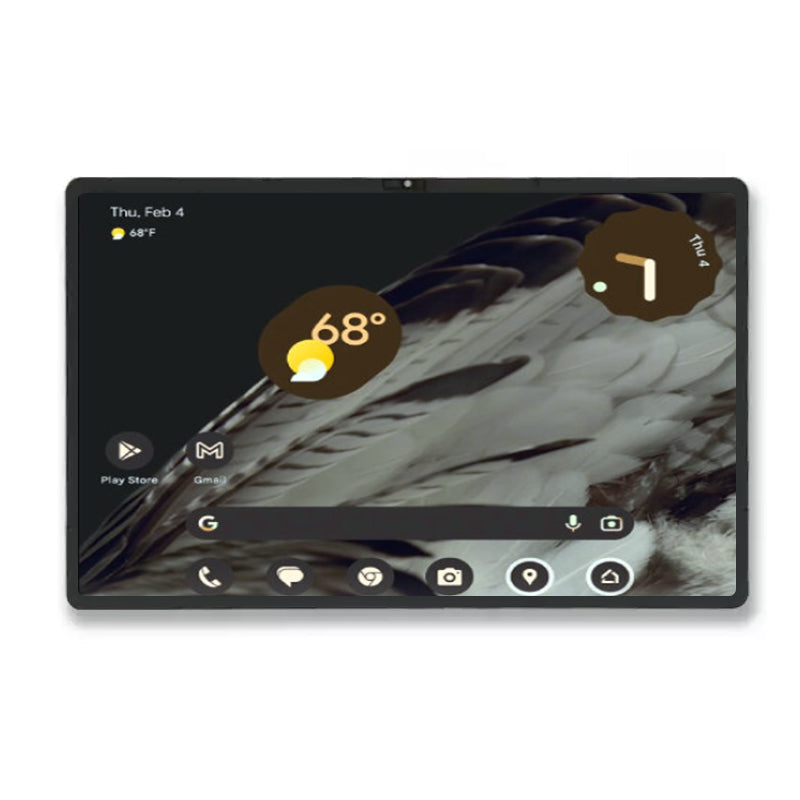

14.5 Inch AMOLED Display 3000×1876 MIPI On-Cell Touchscreen OLED Display Panel

14.5 Inch AMOLED Display 3000×1876 MIPI On-Cell Touchscreen OLED Display Panel

$427.39 USD
$427.39 USD
Sale Sold out
ET145AM01-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


14.5 Inch AMOLED Display Overview
ET145AM01-KT is a 14.5-inch AMOLED display featuring a high resolution of 3000×1876 and an integrated On-cell touch panel. It supports 1.07 billion colors and a 110% color gamut, delivering vivid colors, detailed images, and smooth visual performance. With a 400 cd/m² brightness, a 60000:1 contrast ratio, a 2 ms response time, and full viewing angles, this display is suitable for applications requiring high-quality visuals and responsive touch operation. It uses the HX5318 display driver IC and GT7987P touch controller, with a MIPI interface, a 51-pin connector, and a 0.5 mm pin pitch. The module measures 316.56 × 201.06 × 1.62 mm, with a display area of 312.30 × 192.29 mm, and operates at 3.3 V. Designed for reliable performance across a range of environments, it supports operating temperatures from -20°C to +70°C and storage temperatures from -40°C to +80°C, with a rated service life of 10,000 hours. This 14.5-inch touchscreen AMOLED panel is suitable for smart terminals, portable computing devices, industrial equipment, and other advanced display application

Model ET145AM01-KT 14.5 Inch AMOLED Display 3000×1876 MIPI Touchscreen OLED Display Panel
Size 14.5" Touch Yes
Touch Type On-cell Display Mode AMOLED
Display Colors 1.07B Color Gamut 110%
Response Time 2ms Resolution 3000x1876
Dot Pitch 0.1041(H)*0.1041(V) Viewing Angle All viewing angle
Driver IC HX5318 Outline Dimension 316.56*201.06*1.62mm
Active Area  / Dot Area 312.30*192.29mm
Brightness 400cd/m² Contrast Ratio 60000:1
Interface MIPI Pin Count 51
Pin Pitch 0.5mm Touch Interface  /
Touch IC GT7987P Connection Type Plug-in type
Operating Voltage 3.3V Operating Life 10000h
Operating Temperature -20°C~+70°C Storage Temperature -40°C~+80°C

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?

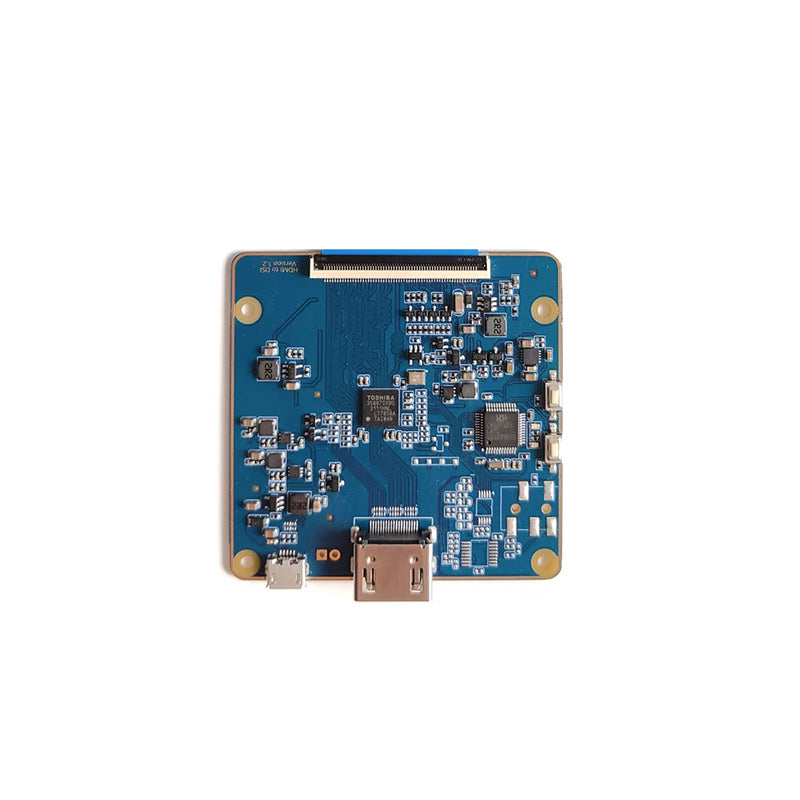

The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
