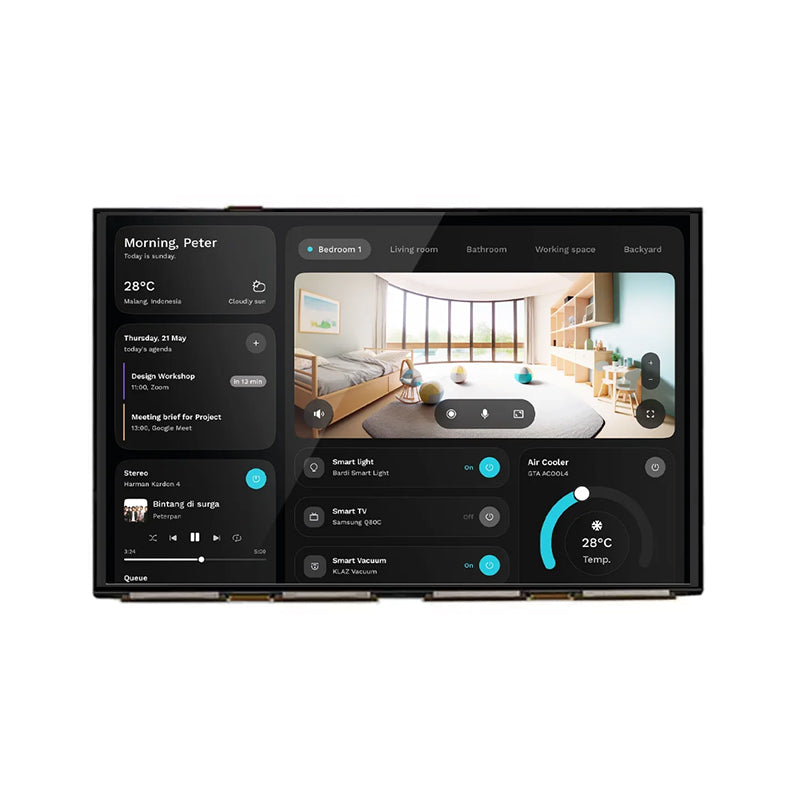

15.1 Inch AMOLED Display 2560x1600 HDMI Wide Temperature AMOLED Display

15.1 Inch AMOLED Display 2560x1600 HDMI Wide Temperature AMOLED Display

$991.20 USD
$991.20 USD
Sale Sold out
ET151AM01-K-HDMI
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


15.1 Inch AMOLED Display Overview

ET156AM01-KT is a 15.1-inch AMOLED display module featuring a resolution of 2560 × 1600 pixels, delivering sharp images and detailed visual performance. Its pixels support RGB 8-bit color depth, providing a rich color palette with a 100% color gamut. In terms of mechanical specifications, it features an active area of 324.10(W) × 202.56(H) mm and an outline dimension of 328.90(W) × 210.46(H) × 5.80(D) mm, with a pixel pitch of 0.1266(H) × 0.1266(V) mm.ET156AM01-KT provides a typical brightness of 550 cd/m² and a contrast ratio of 5000:1, delivering clear images and vivid colors. It features a full viewing angle for consistent visual performance from different viewing directions and a typical response time of 3 ms. As a self-emissive display, AMOLED technology offers rich colors and deep blacks. The module utilizes an HDMI interface for video signal input and features a plug-in connection. It operates on a DC 24V power supply and has a typical service life of 30,000 hours. With an operating temperature range of -40°C to +85°C and a storage temperature range of -40°C to +90°C, ET156AM01-KT is suitable for industrial display systems, professional monitors, and other applications requiring high-resolution AMOLED performance across a wide temperature range.


Product Specifications – ET156AM01-KT
Parameter Specification Parameter Specification
Model Number ET156AM01-KT Display Size 15.1 inch
Display Technology AMOLED Resolution 2560 × 1600
Touchscreen No Touch Type None
Display Colors RGB 8-bit Color Gamut 100%
Response Time 3 ms Pixel Pitch 0.1266(H) × 0.1266(V) mm
Viewing Angle Full Viewing Angle Brightness 550 cd/m²
Contrast Ratio 5000:1 Panel Interface HDMI
Connector Type Plug-in Operating Voltage DC 24 V
Outline Dimensions 328.90 × 210.46 × 5.80 mm Active Area 324.10 × 202.56 mm
Service Life 30,000 hours Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +90°C Display Mode AMOLED



AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?

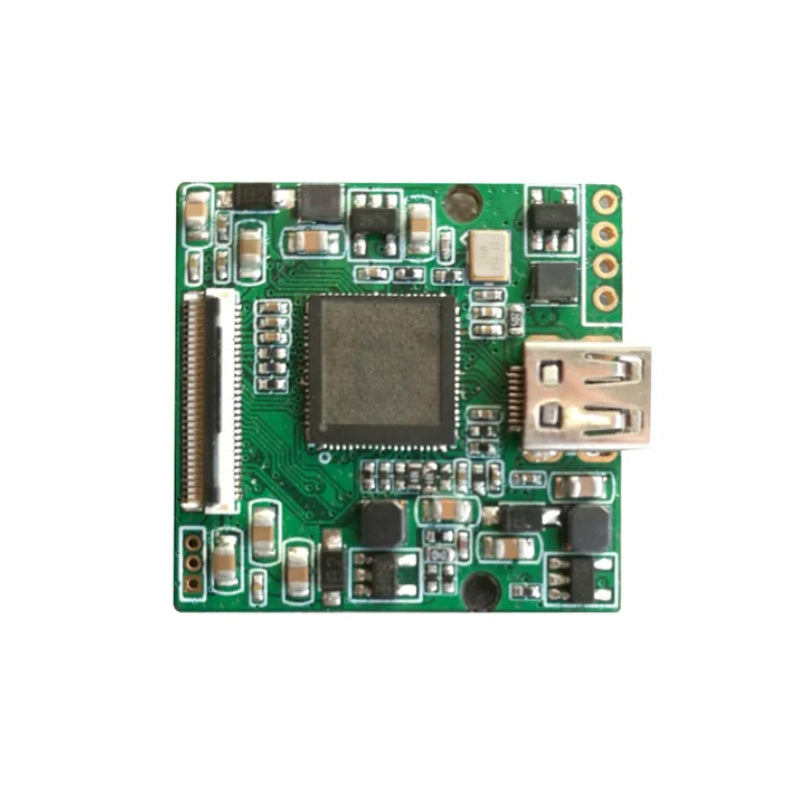

The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
