15.1 Inch OLED Display 2560×1600 EDP Low Temperature Polycrystalline Silicon OLED Screen

15.1 Inch OLED Display 2560×1600 EDP Low Temperature Polycrystalline Silicon OLED Screen

$999.05 USD
$999.05 USD
Sale Sold out
ET151AM01-K
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


15.1 Inch AMOLED Display Overview

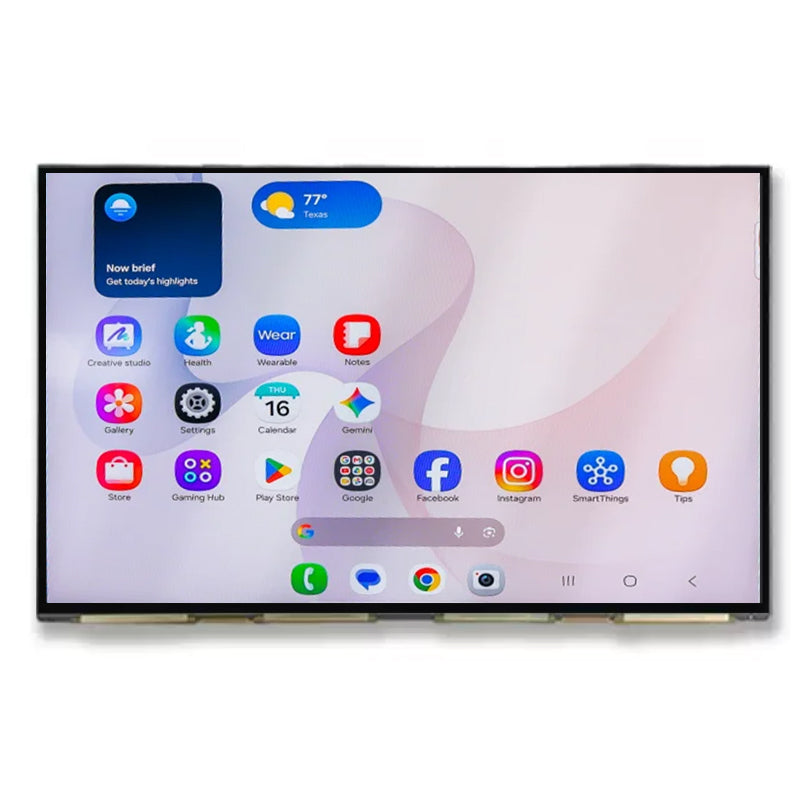

ET151AM01-K is a 15.1-inch diagonal AMOLED display featuring a resolution of 2560×1600, with an aspect ratio of 16:10 (W:H). Its pixels are arranged in RGB 8-bit format, supporting a color gamut of 105% NTSC. For mechanical details, it features a pixel pitch of 0.1266(H)×0.1266(V) mm and an outline dimension of 328.90(W)×210.46(H)×1.30(D) mm. ET151AM01-K provides a display brightness of 800 cd/m² and a contrast ratio of 5000:1, with a full viewing angle and a typical response time of 3 ms. As a self-emissive display, this AMOLED panel delivers vivid colors and high contrast without requiring a separate backlight. It utilizes an EDP 1.2 interface and an RM98121 driver IC, with a typical operating voltage of 3.3V. The display has a rated service life of 30,000 hours and supports an operating temperature range of -40°C to +85°C and a storage temperature range of -40°C to +90°C, making it suitable for applications requiring high resolution, wide temperature operation, and reliable display performance. integrated capacitive touch.

Display Specifications Electrical & Environmental
Model Number ET151AM01-K Driver IC RM98121
Display Size 15.1 Inch Interface EDP 1.2
Display Type AMOLED Operating Voltage 3.3V
Resolution 2560 × 1600 Response Time 3 ms
Pixel Arrangement RGB 8-bit Color Gamut 105% NTSC
Brightness 800 cd/m² Contrast Ratio 5000:1
Viewing Angle Full Viewing Angle Service Life 30,000 Hours
Pixel Pitch 0.1266 × 0.1266 mm Touch Function No Touch
Active Area 324.10 × 202.56 mm Connector Type Plug-in Type
Outline Dimensions 328.90 × 210.46 × 1.30 mm Operating Temperature -40°C to +85°C
Display Color 16.7M Colors (RGB 8-bit) Storage Temperature -40°C to +90°C
Panel Technology LTPS AMOLED Model Reference ET151AM01-K

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.

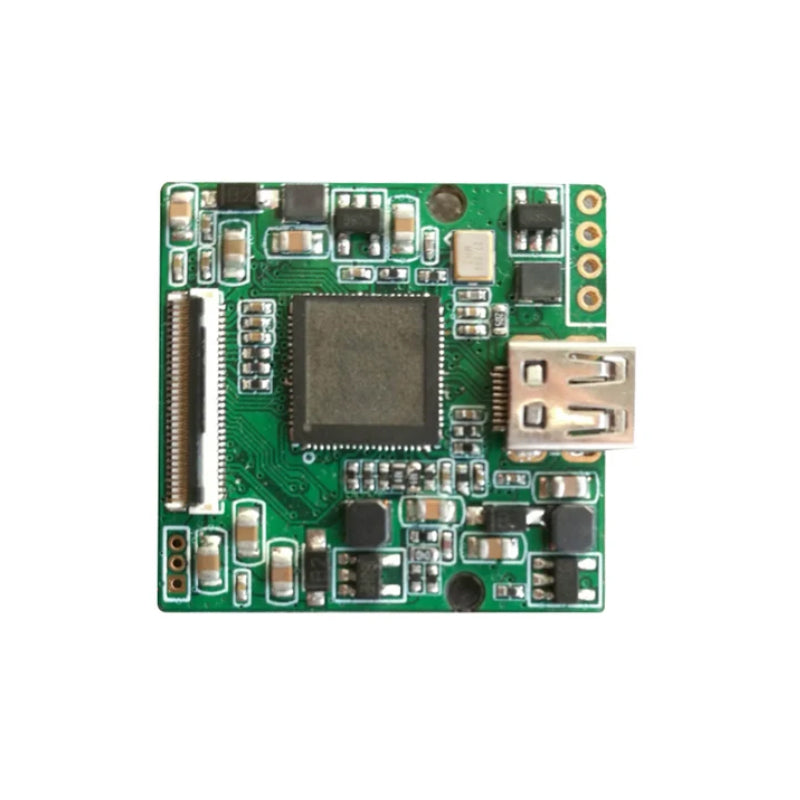

The demo board is a development tool for quickly lighting up and evaluating a display.
