15.6 Inch 3840×2160 AMOLED Display eDP Low Temperature Polycrystalline Silicon OLED Screen

15.6 Inch 3840×2160 AMOLED Display eDP Low Temperature Polycrystalline Silicon OLED Screen

$777.48 USD
$777.48 USD
Sale Sold out
ET156AM01-K
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


15.6 Inch AMOLED Display Overview

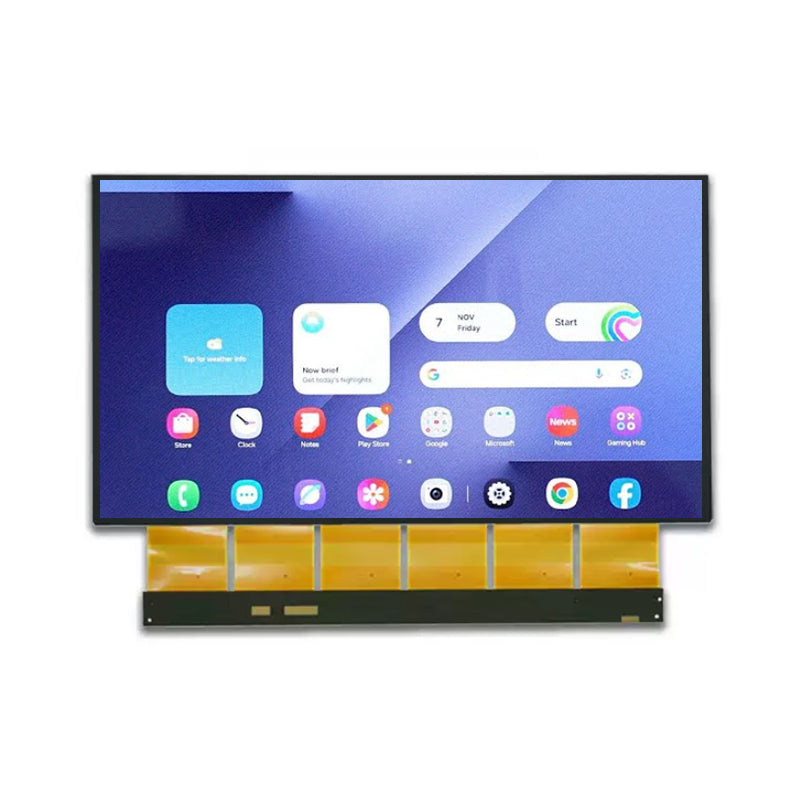

ET156AM01-K is a 15.6-inch AMOLED display module featuring an ultra-high 3840×2160 UHD resolution and a 16:9 aspect ratio. It supports 1.07 billion colors with a 98% color gamut, delivering vivid colors, fine details, and high-quality image reproduction. The display features a pixel pitch of 0.08964(H) × 0.08964(V) mm, a pixel array area of 344.22(W) × 193.62(H) mm, and an outline dimension of 348.48(W) × 201.62(H) × 1.05(D) mm. ET156AM01-K provides a typical brightness of 400 cd/m², a contrast ratio of 100000:1, full viewing angles, and a response time of 10–20 ms. This self-emissive AMOLED panel integrates the RM98110 driver IC and supports the eDP 1.4b interface with a 40-pin connector and 0.5 mm pin pitch for reliable system integration. Operating at a typical voltage of 3.3 V, the display offers a service life of up to 15000 hours. It supports operating temperatures from -20°C to +70°C and storage temperatures from -40°C to +85°C, making it suitable for industrial control systems, professional equipment, high-resolution monitors, and other applications requiring a slim 4K AMOLED display with excellent color performance.

ET156AM01-K 15.6 Inch 4K AMOLED Display Specifications

Parameter Specification Parameter Specification
Model Number ET156AM01-K Display Size 15.6 Inch
Display Type AMOLED Resolution 3840 × 2160 UHD
Display Colors 1.07 Billion Color Gamut 98%
Brightness 400 cd/m² Contrast Ratio 100000:1
Viewing Angle Full Viewing Angle Response Time 10–20 ms
Display Driver IC RM98110 Interface eDP 1.4b
Pin Count 40 Pins Pin Pitch 0.5 mm
Active Area / Pixel Array Area 344.22 × 193.62 mm Pixel Pitch 0.08964 × 0.08964 mm
Outline Dimensions 348.48 × 201.62 × 1.05 mm Touch Function Non-Touch Display
Operating Voltage 3.3 V Service Life 15,000 Hours
Operating Temperature -20°C to +70°C Storage Temperature -40°C to +85°C

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

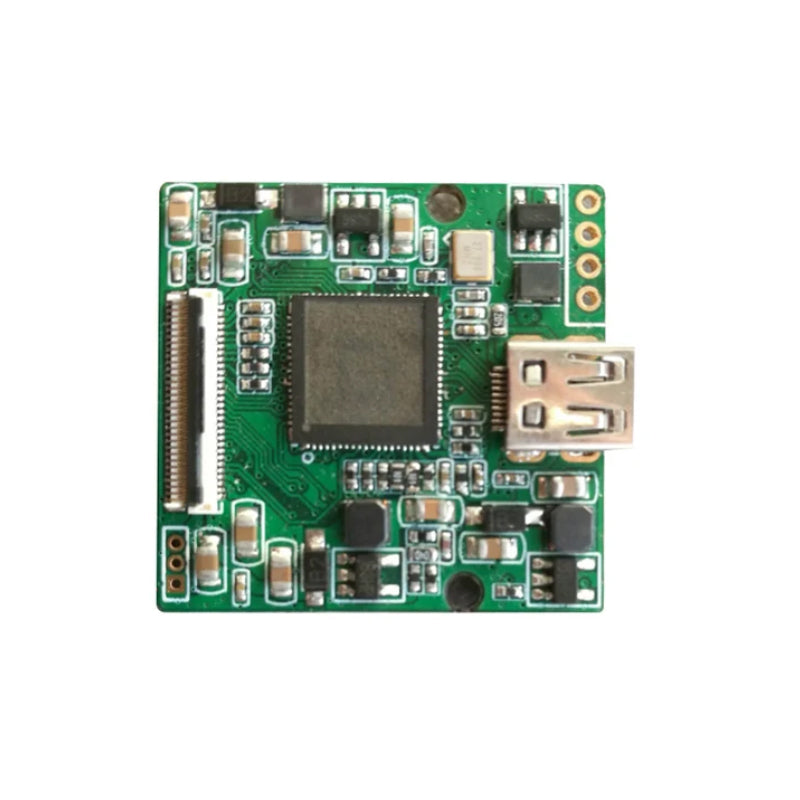

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
