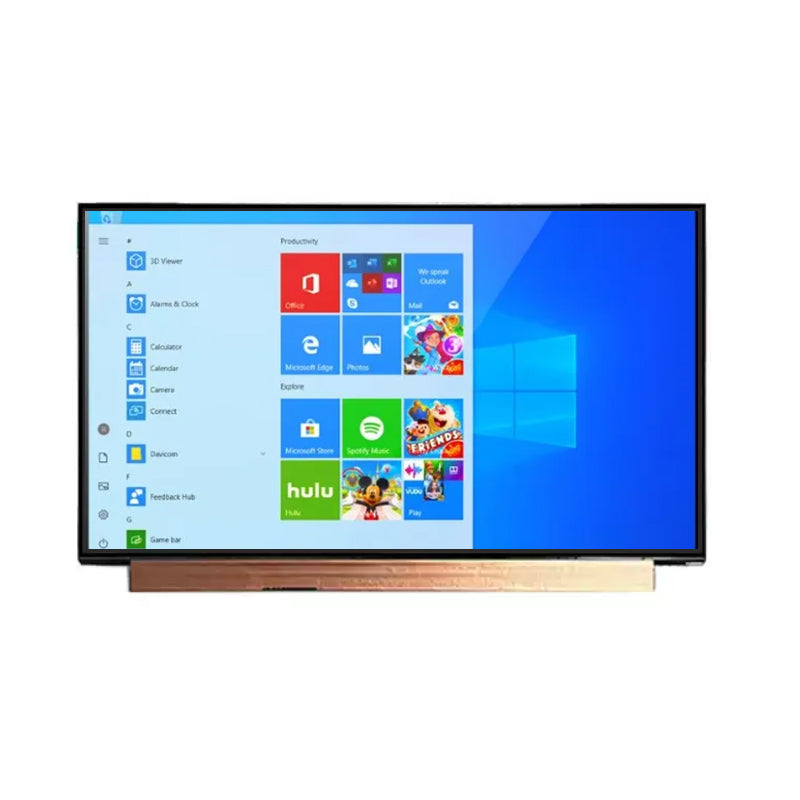

15.6 Inch AMOLED Display 3840×2160 eDP LTPS Ultra HD OLED Display

15.6 Inch AMOLED Display 3840×2160 eDP LTPS Ultra HD OLED Display

$583.12 USD
$583.12 USD
Sale Sold out
ET156AM02-K
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


15.6 Inch AMOLED Display Overview
ET156AM02-K is a 15.6-inch AMOLED display featuring a 3840×2160 Ultra HD resolution and an eDP 1.4b interface. Built with LTPS technology, this display delivers sharp image details, 10-bit RGB color depth, and a 98% color gamut for vivid and accurate color reproduction. With a 400 cd/m² brightness, a 100,000:1 contrast ratio, and a 1 ms response time, it provides clear visuals, deep blacks, and smooth image transitions. Its full-viewing-angle performance ensures consistent image quality from different viewing directions. The module features a slim 348.22 × 201.62 × 1.10 mm outline, a 344.22 × 193.62 mm display area, and a 40-pin plug-in connection. Operating at 3.3 V, it supports a wide operating temperature range of -20°C to +70°C and a storage temperature range of -40°C to +85°C, with a typical service life of 15,000 hours. This high-resolution 15.6-inch OLED display is suitable for applications requiring detailed imagery, rich colors, and a slim display design.

Model ET156AM02-K 15.6 Inch AMOLED Display 3840×2160 eDP LTPS Ultra HD OLED Display
Size 15.6" Touch No
Touch Type None Display Mode AMOLED
Display Colors RGB 10 bit Color Gamut 98%
Response Time 1ms Resolution 3840x2160
Dot Pitch 0.08964(H)*0.08964(V) Viewing Angle All viewing angle
Driver IC RM98110 Outline Dimension 348.22*201.62*1.10mm
Active Area   Dot Area 344.22*193.62mm
Brightness 400cd/m² Contrast Ratio 100000:1
Interface EDP1.4b Pin Count 40
Pin Pitch -- Touch Interface -
Touch IC -- Connection Type Plug-in type
Operating Voltage 3.3V Operating Life 15000h
Operating Temperature -20°C~+70°C Storage Temperature -40°C~+85°C

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
