15.6 Inch AMOLED Display 3840×2160 HDMI LTPS OLED Display

15.6 Inch AMOLED Display 3840×2160 HDMI LTPS OLED Display

$769.00 USD
$769.00 USD
Sale Sold out
ET156AM01-K-HDMI
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


15.6 Inch AMOLED Display Overview

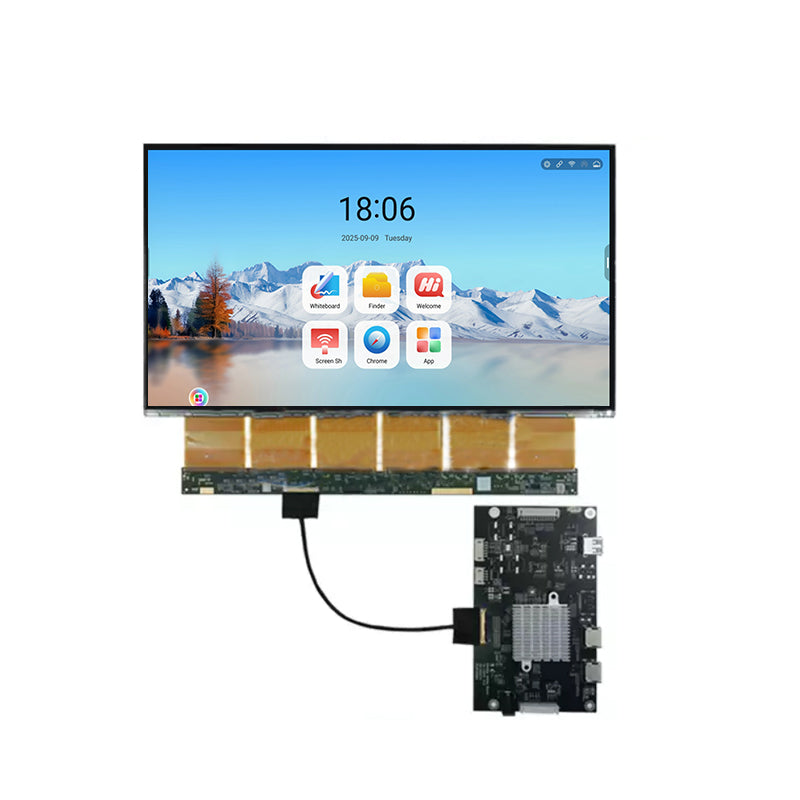

ET156AM01-K-HDMI is a 15.6-inch LTPS AMOLED display featuring a 4K UHD resolution of 3840×2160 with a 16:9 aspect ratio (W:H), delivering sharp images and fine details. As for mechanical details, it features a dot matrix area of 344.22(W)×193.62(H) mm and an outline size of 348.48(W)×201.62(H)×15.00(D) mm. ET156AM01-K-HDMI provides 400 cd/m² display brightness, a contrast ratio of 100,000:1, full viewing angles, and a fast response time of 1 ms. It supports a 100% color gamut and RGB 10-bit, 8-bit+2FRC, or 8-bit color modes for rich and accurate color reproduction. This product utilizes LTPS AMOLED technology, allowing each pixel to emit its own light for deep blacks, vivid colors, and high image clarity. ET156AM01-K-HDMI uses an HDMI interface for signal transmission and operates at a DC 24V power supply. With a rated lifetime of 30,000 hours, it supports an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C, making it suitable for high-resolution monitors, professional display systems, and other visual applications.

Model ET156AM01-K-HDMI  15.6 Inch AMOLED Display 3840×2160 HDMI LTPS OLED Display
Display Mode AMOLED Display Color RGB 10bit/8bit+2FRC/8bit
Color Gamut 100% Response Time 1ms
Resolution 3840x2160 Dot Pitch 0.08964(H)*0.08964(V)
Viewing Angle All viewing angle Outline Dimension 348.48*201.62*15.00mm
Dot Area 344.22*193.62mm Brightness 400cd/m²
Contrast Ratio 100000:1 Interface HDMI
Connection Type Plug-in type Operating Voltage DC 24V
Operating Life 30000h Operating Temperature -20℃～+70℃
Storage Temperature -30℃～+80℃


AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.

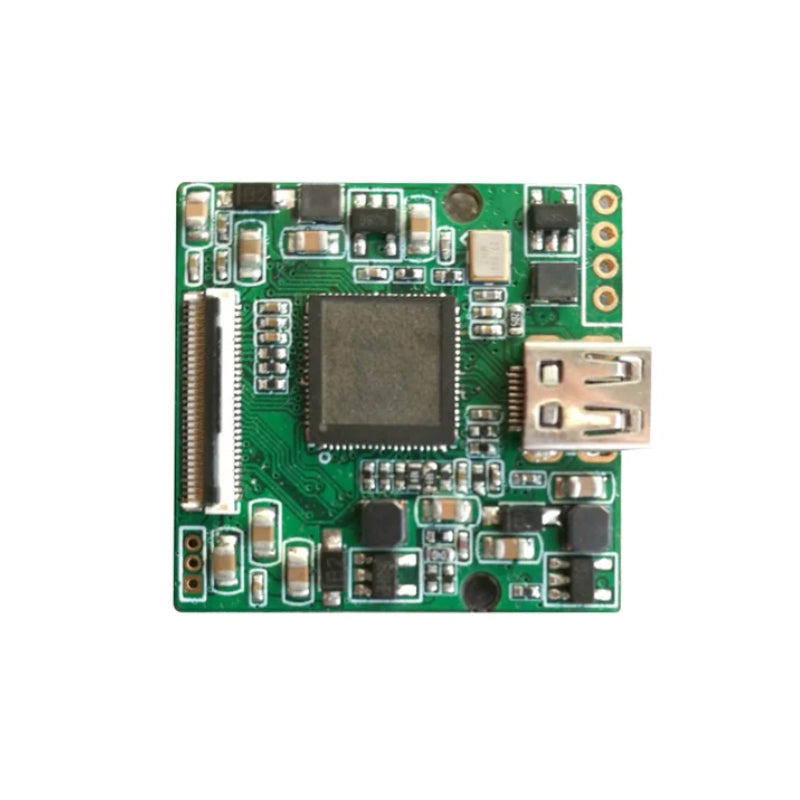

The demo board is a development tool for quickly lighting up and evaluating a display.
