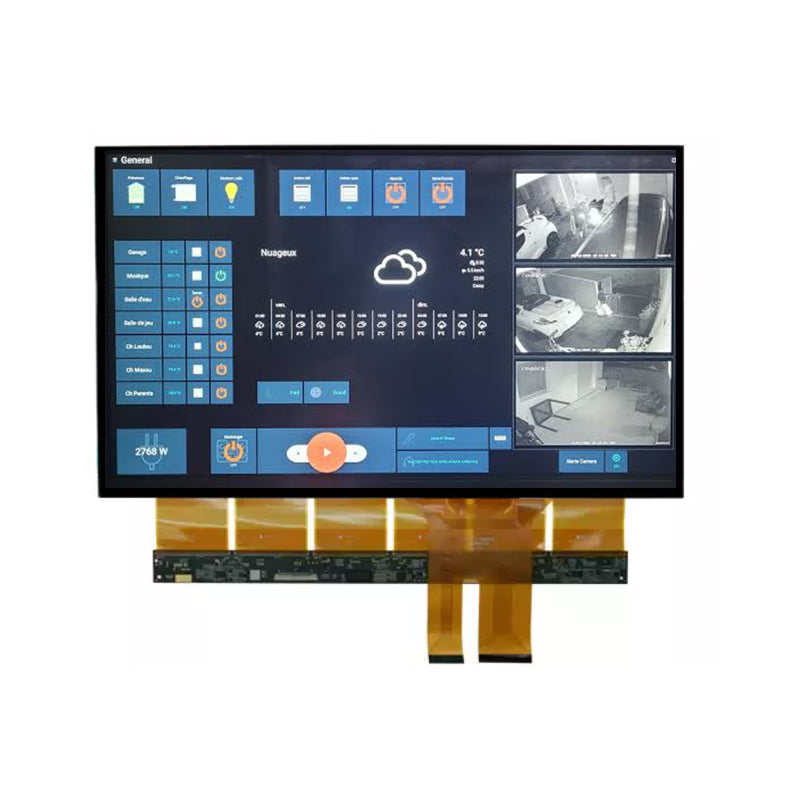

15.6 Inch AMOLED Display With 3840x2160 EDP Interface and Capacitive Touch Screen Display

15.6 Inch AMOLED Display With 3840x2160 EDP Interface and Capacitive Touch Screen Display

$787.72 USD
$787.72 USD
Sale Sold out
ET156AM01-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


15.6 Inch AMOLED Display Overview

ET156AM01-KT is a 15.6-inch AMOLED display module featuring a resolution of 3840 × 2160 pixels (4K UHD), delivering sharp images and detailed visual performance. It supports 1.07 billion colors and a 100% color gamut for rich and accurate color reproduction. In terms of mechanical specifications, it features an active area of 344.22(W) × 193.62(H) mm, a visible area of 345.22(W) × 194.62(H) mm, and an outline dimension of 357.22(W) × 208.27(H) × 3.35(D) mm, with a pixel pitch of 0.08964(H) × 0.08964(V) mm.ET156AM01-KT provides a typical brightness of 320 cd/m² and a contrast ratio of 1000:1. It features a full viewing angle for consistent visual performance from different viewing directions and a typical response time of 19 ms. The integrated capacitive touchscreen supports both I2C and USB interfaces and uses an ILI2510 touch controller. For display signal input, the module utilizes an eDP 1.4b interface and a 40-pin plug-in connector with a 1.0 mm pin pitch. It is driven by the RM98110 display driver IC and operates at a typical voltage of 3.3V. ET156AM01-KT has a typical service life of 15,000 hours, an operating temperature range of -20°C to +70°C, and a storage temperature range of -40°C to +80°C, making it suitable for interactive displays, professional monitors, and other applications requiring high-resolution AMOLED technology with touch functionality.


Product Specifications – ET156AM01-KT
Parameter Specification Parameter Specification
Part No. ET156AM01-KT Display Size 15.6 inch
Display Technology AMOLED Resolution 3840 × 2160 (4K UHD)
Touchscreen Yes, Capacitive Touch Display Colors 1.07 Billion (1.07B)
Color Gamut 100% Response Time 19 ms
Pixel Pitch 0.08964(H) × 0.08964(V) mm Viewing Angle Full Viewing Angle
Brightness 320 cd/m² Contrast Ratio 1000:1
Display Driver IC RM98110 Panel Interface eDP 1.4b
Pin Count 40 Pins Pin Pitch 1.0 mm
Touch Interface I2C & USB Touch Controller IC ILI2510
Connector Type Plug-in Outline Dimensions 357.22 × 208.27 × 3.35 mm
Visible Area 345.22 × 194.62 mm Active Area 344.22 × 193.62 mm
Operating Voltage 3.3 V Service Life 15,000 Hours
Operating Temperature -20°C to +70°C Storage Temperature -40°C to +80°C



AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.

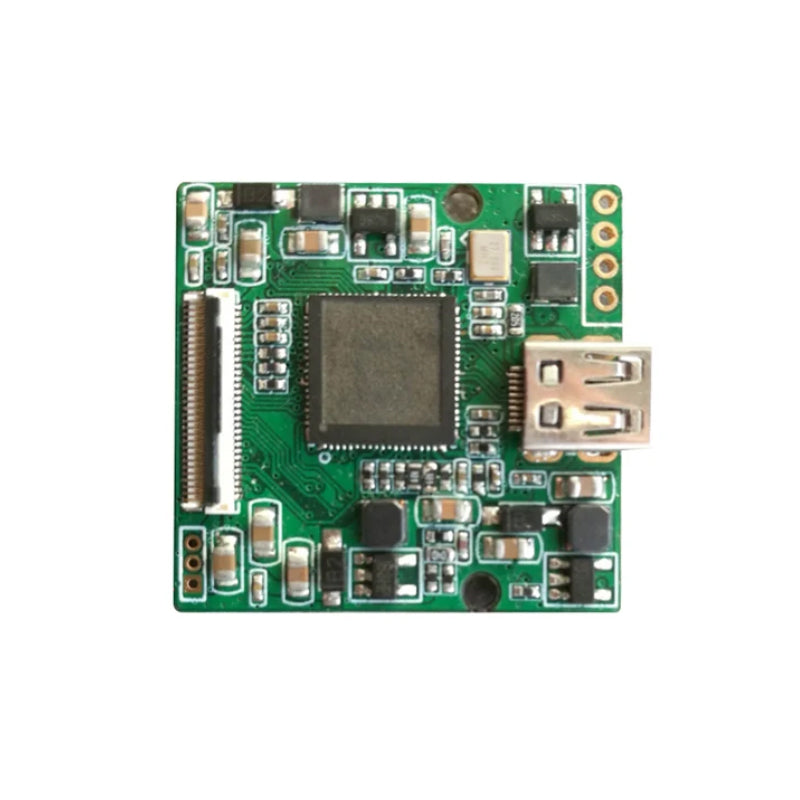

The demo board is a development tool for quickly lighting up and evaluating a display.
