2.06 Inch AMOLED Display 410×502 LTPS 16.7 Million Colors OLED Display

2.06 Inch AMOLED Display 410×502 LTPS 16.7 Million Colors OLED Display

$10.96 USD
$10.96 USD
Sale Sold out
ET020AM01-K
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


2.06 Inch AMOLED Display Overview

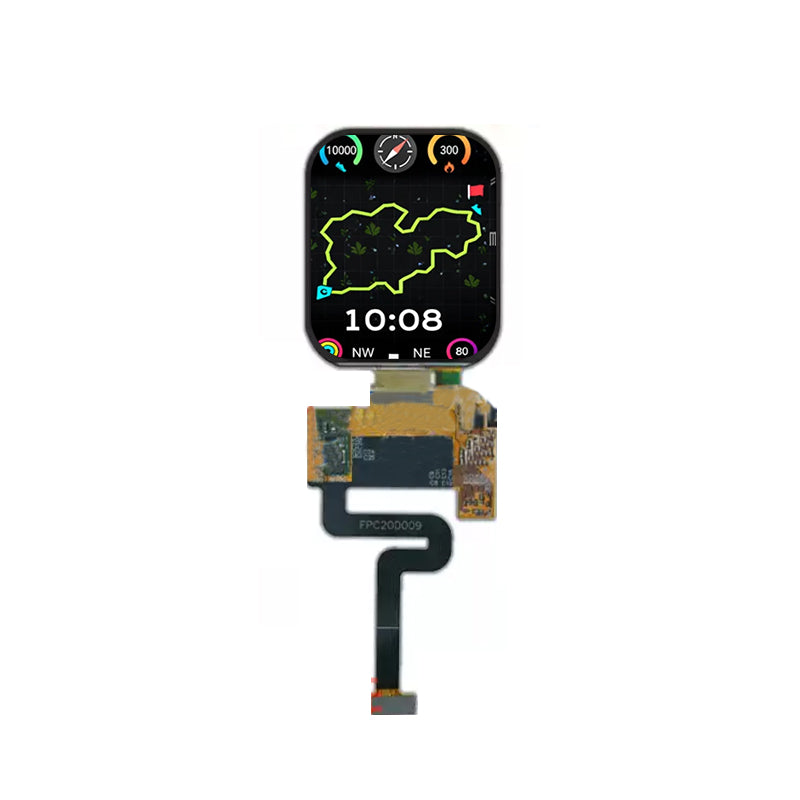

ET020AM01-K is a 2.06-inch AMOLED display featuring a 410×502 resolution and a QSPI interface. With 16.7 million colors and a 100% color gamut, this display delivers vivid colors and detailed image quality. Its 500 cd/m² brightness and full viewing angles ensure clear visuals and consistent color performance from different viewing directions. The AMOLED panel features a compact design, measuring 34.79 × 43.14 × 0.78 mm, with a display area of 33.09 × 40.51 mm. Driven by the CO5300 controller, it integrates on-cell capacitive touch functionality with a CST820 touch controller for convenient and responsive user interaction. The module features a 24-pin plug-in connection and operates at 3.3 V. With a service life of 30,000 hours, an operating temperature range of -20°C to +60°C, and a storage temperature range of -30°C to +70°C, this 2.06-inch AMOLED display is suitable for wearable electronics, portable devices, smart home products, and other compact applications requiring vivid visuals, integrated touch functionality, and reliable performance.

Model ET020AM01-K  2.06 Inch AMOLED Display 410×502 LTPS OLED Display with 16.7 Million Colors
Size 2.06" Touch Yes
Touch Type Capacitive touch Display Mode AMOLED
Display Colors 16.7M Color Gamut 100%
Response Time -- Resolution 410×502
Dot Pitch 0.0807 (H)*0.0807 (V) Viewing Angle All viewing angle
Driver IC CO5300 Outline Dimension 34.79*43.14*0.78 mm
Active Area -- Dot Area 33.09*40.51 mm
Brightness 500 cd/m² Contrast Ratio --
Interface QSPI Pin Count 24
Pin Pitch -- Touch Interface Oncell
Touch IC CST820 Connection Type Plug-in type
Operating Voltage 3.3 V Operating Life 30000h
Operating Temperature -20°C ~ +60°C Storage Temperature -30°C ~ +70°C
