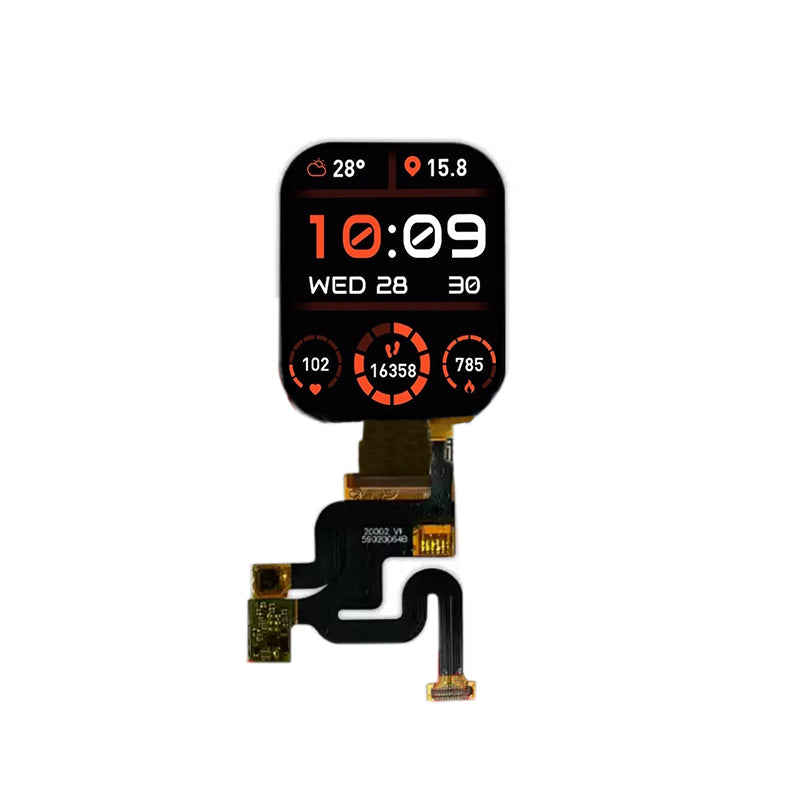

2.06 Inch AMOLED Display 410×502 LTPS MIPI OLED Display

2.06 Inch AMOLED Display 410×502 LTPS MIPI OLED Display

$10.15 USD
$10.15 USD
Sale Sold out
ET020AM02-K
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


2.06 Inch AMOLED Display Overview
ET020AM02-K supports a display resolution of 410×502 with a pixel pitch of 0.0807(H)×0.0807(V) mm. As for mechanical details, it features a pixel area of 33.09(W)×40.51(H) mm and an outline size of 34.79(W)×43.14(H)×0.83(D) mm. ET020AM02-K provides 600 cd/m² display brightness, a full viewing angle, and a color gamut of 100%, delivering vivid colors and clear image details. It supports a palette of 16.7M colors. This product uses self-emissive AMOLED technology with LTPS technology. ET020AM02-K utilizes MIPI as its signal input interface and features a CO5300 driver IC, a CST916E touch controller, and a 24-pin soldered connection. It operates at a typical supply voltage of 2.8V, supports an operating temperature range of -20°C to +60°C and a storage temperature range of -30°C to +70°C, and offers a service life of up to 30,000 hours.

Model ET020AM02-K  2.06 Inch AMOLED Display 410×502 LTPS MIPI OLED Display
Display Mode AMOLED Display Colors 16.7M
Color Gamut 100% Response Time --
Resolution 410×502 Dot Pitch 0.0807 (H)*0.0807 (V)
Viewing Angle All viewing angle Driver IC CO5300
Outline Dimension 34.79*43.14*0.83 mm Active Area --
Dot Area 33.09*40.51 mm Brightness 600 cd/m²
Contrast Ratio -- Interface MIPI
Pin Count 24 Pin Pitch --
Touch Interface -- Touch IC CST916E
Connection Type Solder type Operating Voltage 2.8 V
Operating Life 30000h Operating Temperature -20°C ~ +60°C
Storage Temperature -30°C ~ +70°C

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
