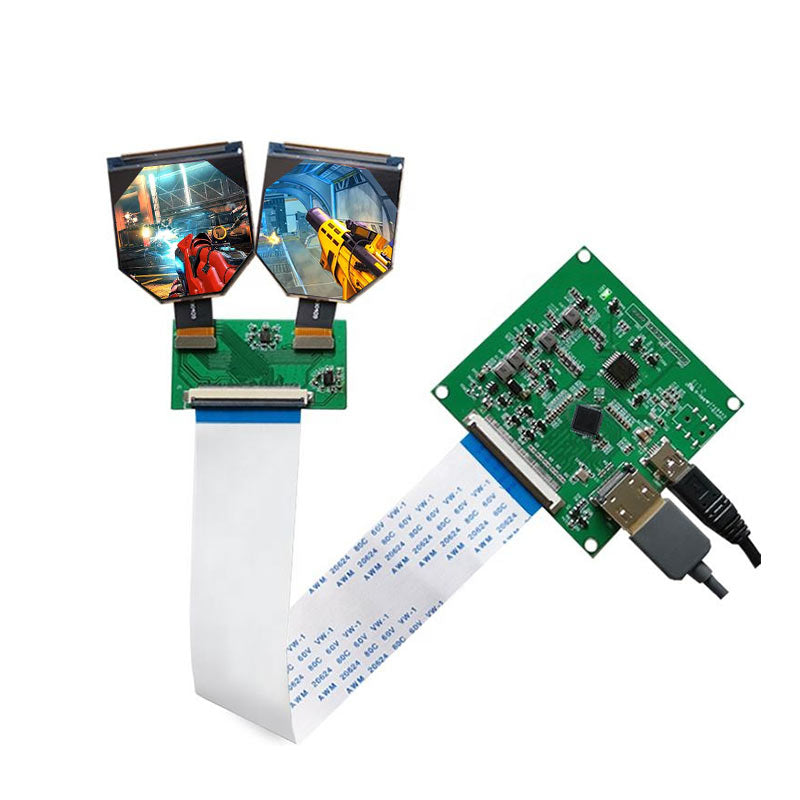

VS021XRM-NW0-6KP0 BOE 2.1 Inch TFT LCD Display 1600x1600 MIPI LCD Module With Driver Board

VS021XRM-NW0-6KP0 BOE 2.1 Inch TFT LCD Display 1600x1600 MIPI LCD Module With Driver Board

$122.00 USD
$185.00 USD $122.00 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

2.1 Inch LCD Display Overview
VS021XRM-NW0-6KP0 supports display 1600(RGB)×1600 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 1058 PPI. As for mechanical detail, it features active area of 38.4(W)×38.4(H) mm, outline size of 41.2(W)×45.3(H)×1.76(D) mm, with surface treament of Hard coating (3H), net weight of 6.00±1.00g. As a ADS, Normally Black, Transmissive LCM product, VS021XRM-NW0-6KP0 can provides 480 cd/m² display brightness 650:1 transimissive contrast ratio, 40/40/40/40 (Typ.)(CR≥100) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 5.5 (Max.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 71% (NTSC). This product adopted 4S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. VS021XRM-NW0-6KP0 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 24 pins Connector with power supply voltage of 1.8/6.0/-6.0V (Typ.)(VDDI/AVDD/AVEE). It's typical vertical frame rate (Fv) is 90Hz.
2.1 Inch LCD Display Drawing
PRODUCTION AND MANUFACTURING



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
