2.1 Inch AMOLED Display 480×480 LTPS On-Cell Touch OLED Display

2.1 Inch AMOLED Display 480×480 LTPS On-Cell Touch OLED Display

$14.75 USD
$14.75 USD
Sale Sold out
ET021AM01-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


2.1 Inch AMOLED Display Overview

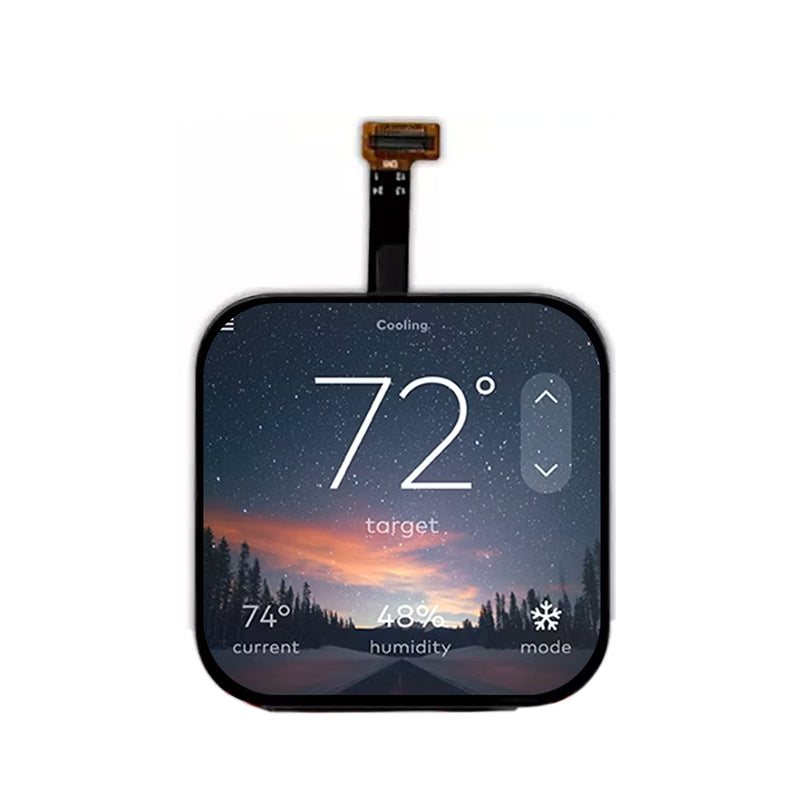

ET021AM01-KT is a 2.1-inch LTPS AMOLED display featuring a 480×480 resolution and a square design with rounded corners. It delivers clear images and detailed visuals for compact electronic devices. As for mechanical details, it features a dot matrix area of 38.39(W)×38.39(H) mm and an outline size of 42.39(W)×42.39(H)×2.55(D) mm. ET021AM01-KT provides 600 cd/m² display brightness, a 10,000:1 contrast ratio, a 99% color gamut, and full viewing angles for vivid colors and clear image reproduction. This AMOLED display features an On-Cell capacitive touch structure, integrating touch functionality into the display module. It uses a QSPI interface for signal transmission and features a CO5300AF display driver IC and a CST9220 touch controller IC. The module has 24 soldered pins and operates at 3.3V. With a rated lifetime of 30,000 hours, it supports an operating temperature range of -20°C to +60°C and a storage temperature range of -30°C to +70°C, making it suitable for smart wearables, portable electronics, and other compact display applications.

Model ET021AM01-KT  2.1 Inch AMOLED Display 480×480 LTPS On-Cell Touch OLED Display
Display Mode AMOLED Color Gamut 99%
Resolution 480x480 Viewing Angle All viewing angle
Driver IC CO5300AF Outline Dimension 42.39*42.39*2.55mm
Dot Area 38.39*38.39mm Brightness 600cd/m²
Contrast Ratio 10000:1 Interface QSPI
Pin Count 24 Touch IC CST9220
Connection Type Solder type Operating Voltage 3.3V
Operating Life 30000h Operating Temperature -20℃～+60℃
Storage Temperature -30℃～+70℃

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.

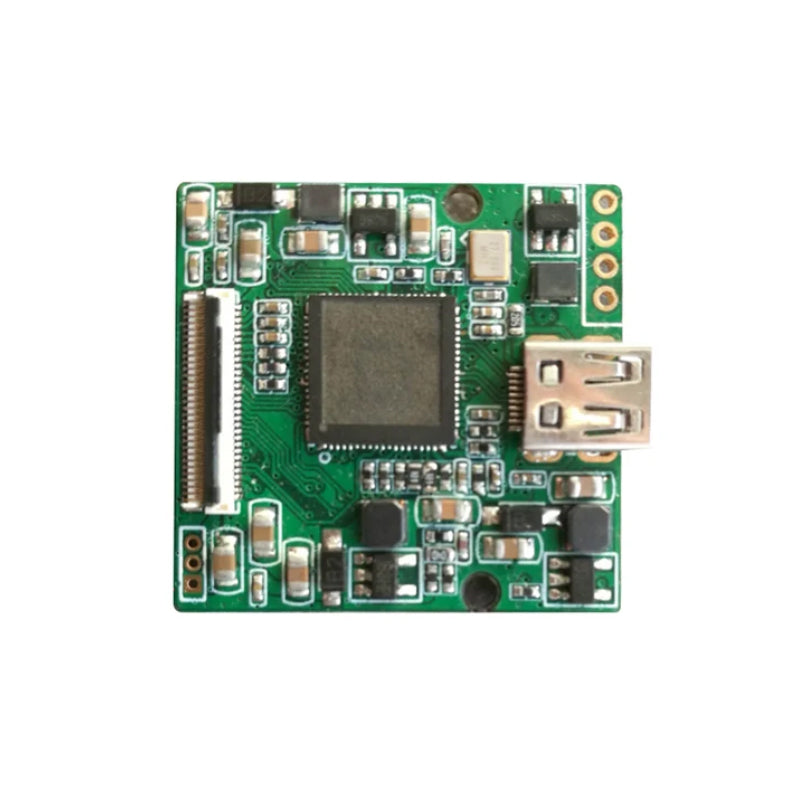

The demo board is a development tool for quickly lighting up and evaluating a display.
