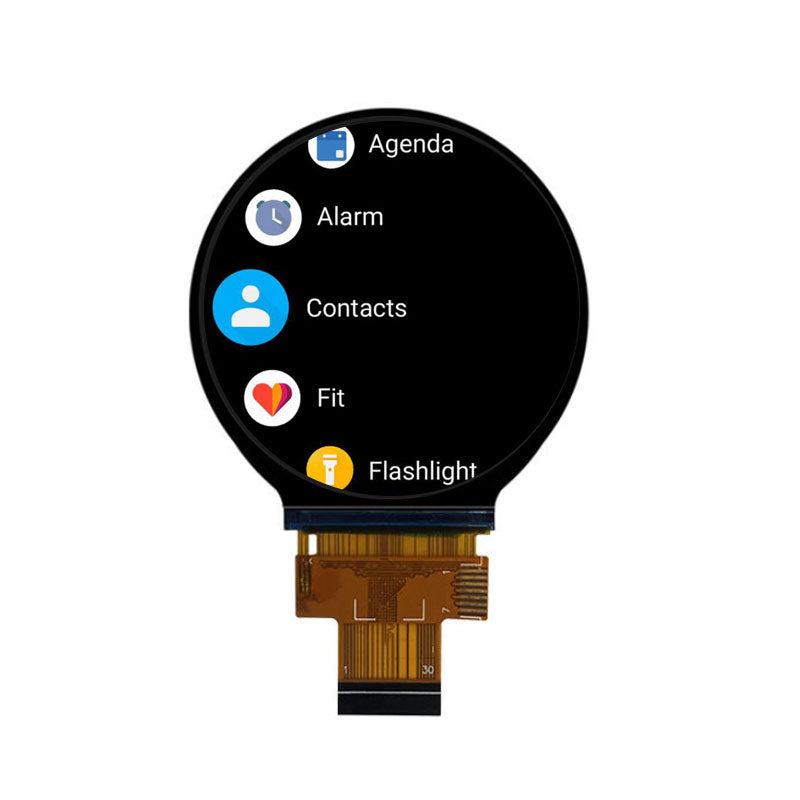

2.1 Inch Circular Display IPS 480x480 ST7701S MIPI 2 LANE TFT LCD Display

2.1 Inch Circular Display IPS 480x480 ST7701S MIPI 2 LANE TFT LCD Display

$12.00 USD
$12.00 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST in order to receive volume discount pricing.

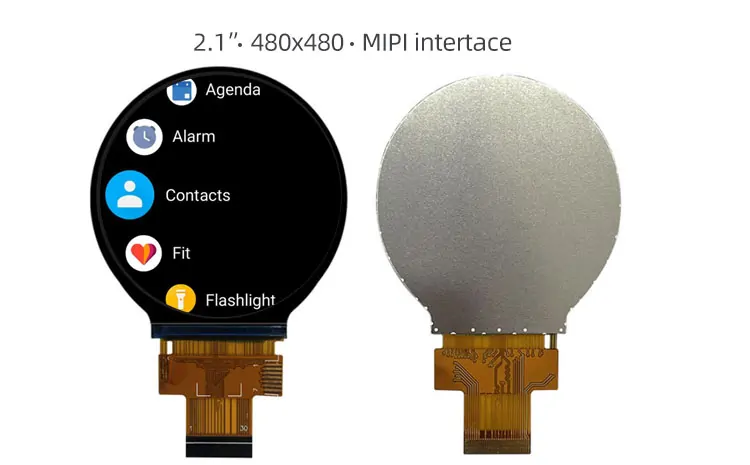

2.1 Inch 480x480 Circular Display Overview
2.1 Inch Circular Display IPS 480x480 ST7701S MIPI 2 LANE TFT LCD Display.

2.1 Inch 480x480 Circular Display Application
For industrial & smart home appliances & medical instruments & wearable.

More Circular Displays For Reference

Inch Resolution LCM
Driver chip 		LCM Dimensions Display area LCD interface Reference brightness
1 2560*2560 More choose More choose More choose monocular hdmi
1.2 390*390 More choose 33.22*33.75 30.42*30.42 MIPI 350
1.2 240*240 More choose 33.04*33.94 30.42*30.42 Parallel Data 0
1.3 260*260 More choose 35.56*36.26 32.76*32.76 FPC 0
1.3 360*360 More choose More choose More choose MIPI 4 LANE More choose
1.3 320*320 ST7796 36.12*39.16*1.42 33.12*33.12 MIPI 1 LANE 500
240*240 GC9A01 35.6*38.1*1.55 32.4*32.4 RGB 16 BIT 500
240*240 GC9A01 More choose More choose RGB 16 BIT 500
240*240 GC9A01 35.6*38.1*1.56 32.4*32.4 SPI4 500
1.38 220*220 More choose More choose More choose CPU More choose
1.4 454*454 More choose 38.83*38.2*0.68 More choose MIPI SPI 0
1.4 280*280 More choose 38.08*38.78 35.28*35.28 Parallel Data 0
1.6 400*400 ST77903 41.9*44.04*2.15 39.84*39.84 QSPI 350
400*400 ST77903 41.9*44.04*2.15 39.84*39.84 RGB8BIT 350
400*400 More choose More choose More choose MIPI/CPU/RGB/SPI 0
1.8 360*360 More choose More choose More choose MIPI More choose
2.1 480*480 ST7701S 56.18*59.71*2.2 53.28*53.28 RGB 18 BIT 450
480*480 ST7701S 56.18*59.71*2.2 53.28*53.28 RGB 18 BIT 400
480*480 ST7701S 56.18*59.71*2.2 53.28*53.28 MIPI 2 LANE 450
2.8 480*480 ST7701S 73.03*76.48*2.3 70.128 RGB 18 BIT 400
480*480 ST7701S 73.03*76.48*2.3 70.128 MIPI 2 LANE 450
3.4 800*800 JD9365DA 94.9*96.95*2.26 87.6 MIPI 4 LANE 600
800*800 JD9365DA 94.9*96.95*2.26 87.6 MIPI 4 LANE 500
3.54 800*640 ST5892 97.6*83.79*4.04 90*72 RGB 18 BIT 1000
3.6 544*506 ST72566 94.12*98.88*7.75 83.49*89.76 RGB 24 Bit 1000
4 720*720 NV3051F 105.6*109.87*2.13 101.52*101.52 MIPI 4 LANE 600
720*720 NV3052C 105.6*109.87*2.13 101.52*101.52 RGB 24 BIT 600
720*720 NV3052C 105.6*109.87*2.13 101.52*101.52 RGB 24 BIT 550
5 1080*1080 More choose 136.531*132.208*1.98 127.008*127.008 MIPI 300
23.6 848*848 More choose 663.781*663.781 600.384*600.384 LVDS 700
1280*1280 More choose 657*657 599.424*599.424 LVDS 1500

Touch Screens are Available and Optional

2.1 Inch 480x480 Circular Display Custom LCD Solutions for Diverse Applications
Brightness from 0-3000 for perfect display effect achievement.
100% NTSC makes the vividness of the picture better and the color transition in the picture more natural.
Color Temperature is positive white at around 5500K, warm white (yellowish) at 3500K and also cool white (cold) at 6500K.
Driver circuit with sufficient voltage and current values to meet output requirements and reduce the secondary development cycle.
Heat dissipation for high-brightness products to advance design of reasonable heat dissipation structure
Power consumption, we increase the brightness without increasing the power consumption.
Cables, Backlighting also requires cables, either through an FPC connected to the LCD's FPC and controlled through a port, or a separate cable that controls it through a connector.
LED life reached the standard of 30K hours Min. 50K, 70K, 100K hours are all achievable.
2.1 Inch 480x480 Circular Display Touch screen,standard type and customization
2.1 Inch 480x480 Circular Display Driver board/adapter board, standard type and design customization
DEMO board, H-DMl board, other customized board, etc.
2.1 Inch 480x480 Circular Display Embedded Integrated Solution
UART display solution, H-DMl display solution, Window display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out ?
Normally we will ship it out within 2- 3 days after order was processed, only when the products in high demand or out of stock will take more time.
