Product Introduction

2.1 Inch Round Display 480×480 IPS RGB Circular Display with Driver Board Overview
ET021CR01-GX is a 2.1-inch round IPS TFT-LCD display featuring a 480×480 resolution and a Normally Black display mode. It uses an RGB interface and provides an IPS wide viewing angle for clear and consistent images from different viewing directions. The display features a 400 cd/m² brightness, an active area of 53.28(W) × 53.28(H) mm, and an outline dimension of 56.18(W) × 59.71(H) × 2.30(D) mm. ET021CR01-GX supports an operating temperature range of -20°C to 70°C and is designed for compact embedded applications requiring a high-quality circular display. A driver board can be offered as an optional solution for complete display applications.
2.1 Inch Round Display 480×480 IPS RGB Circular Display with Driver Board
2.1 Inch Circular Display  Specification

Part No. ET021CR01-GX Size 2.1 inch
Resolution 480 × 480 Display Mode Normally Black
Panel Interface RGB Touch Panel No
Outline Dimension 56.18 × 59.71 × 2.30 mm Active Area 53.28 × 53.28 mm
Viewing Angle (L/R/U/D) IPS Full Angle Brightness 400 nits
Operation Temp. -20 ~ 70°C Storage Temp. N/A



2.1 Inch Circular Display Drawing

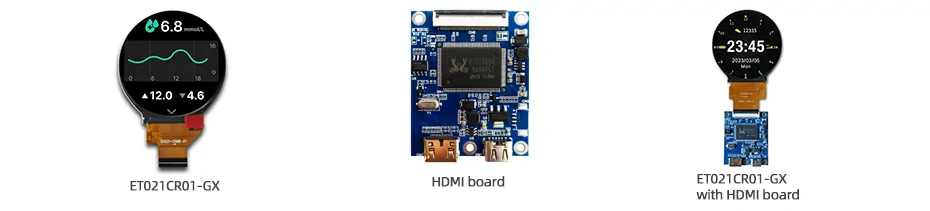

More 2.1 Inch Circular Display Solution For Reference

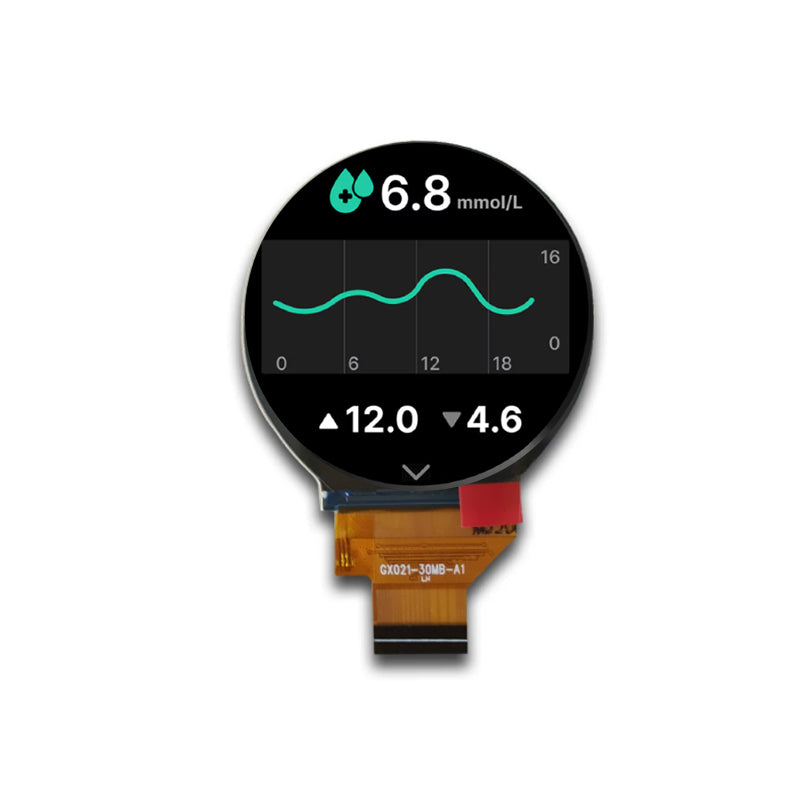

ET021CR01-GX

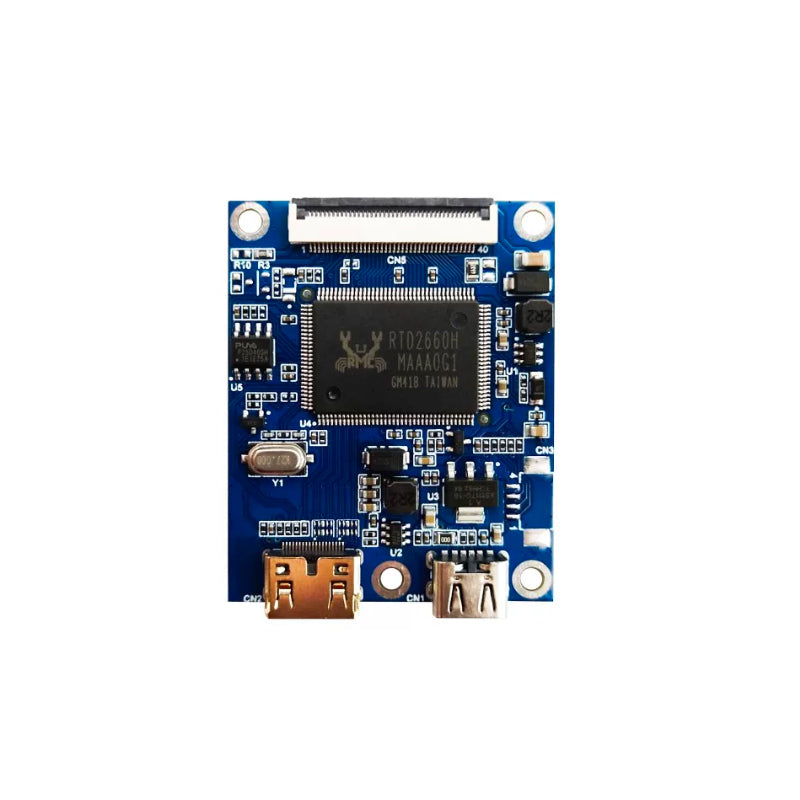

HDMI board

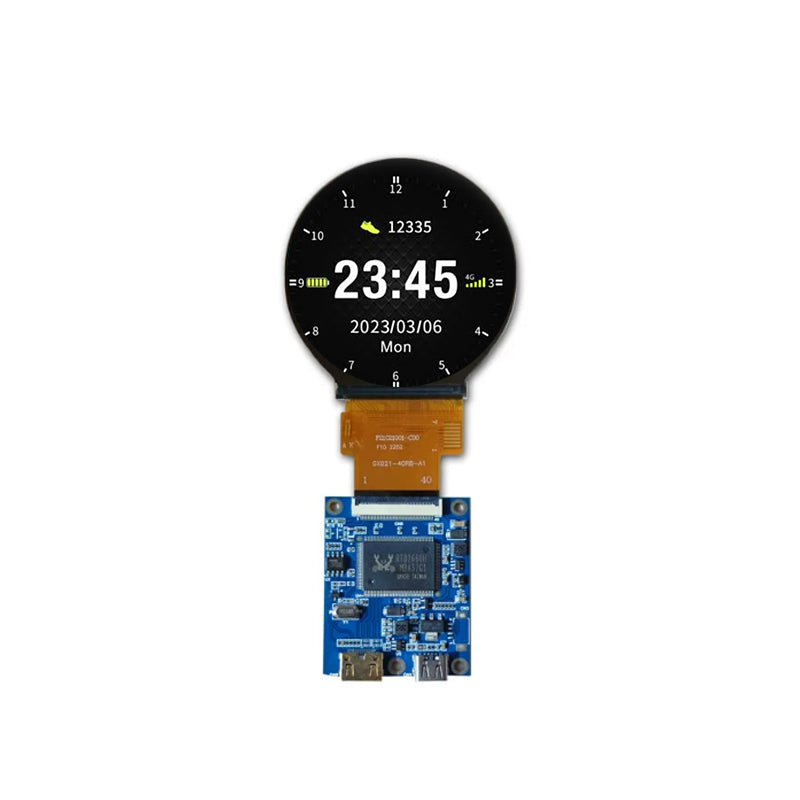

ET021CR01-GX with HDMI board
2.1 Inch Round Display 480×480 IPS RGB Circular Display with Driver Board

Circular Display Application

Production and Manufacturing

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
