2.13 Inch Monochrome E-Paper Display Module SPI 250×122 E Ink Electronic Paper Display With Touch

Product Introduction

2.13 Inch Monochrome E-Paper Display Module 250×122 SPI E Ink Electronic Paper Display With Touch Overview

ET021EP05T-J is a 2.13 inch diagonal monochrome E-Paper (EPD) display module featuring advanced E Ink technology for ultra-low power consumption and a paper-like viewing experience. ET021EP05T-J supports a 250×122 resolution with a compact form factor, providing clear text, graphics, icons, and symbols for applications such as electronic shelf labels, smart tags, portable devices, industrial instruments, and IoT products. The module adopts an SPI interface for easy system integration and supports touch functionality, enabling intuitive user interaction and enhanced application flexibility. It features an active area of 23.7(W) × 48.55(H) mm, an outline dimension of 29.2(W) × 59.2(H) × 1.6(D) mm, and operates reliably within a 0°C to 50°C operating temperature range, with a storage temperature of -25°C to 70°C. With an integrated touch panel, the ET021EP05T-J provides high contrast, wide viewing angle performance, and bistable display characteristics, making it an ideal display solution for interactive battery-powered electronic paper applications requiring long service life, low power consumption, and excellent readability.

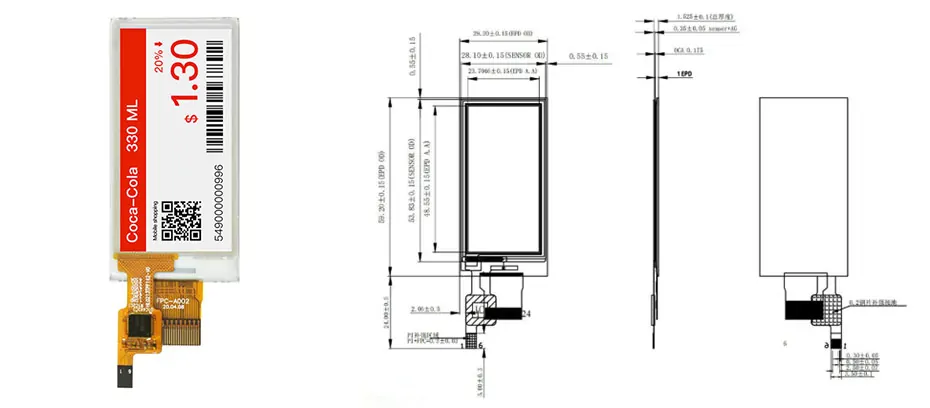

2.13 Inch E Ink Display  Specification

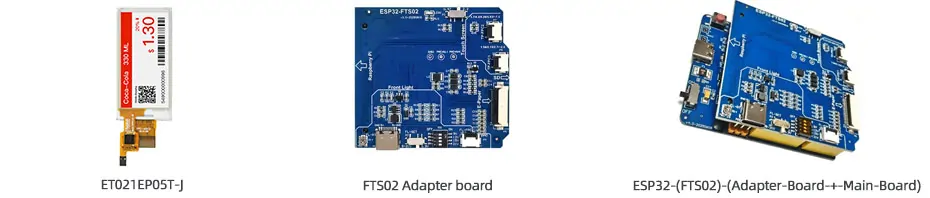

2.13 Inch E Ink Display Solution For Reference

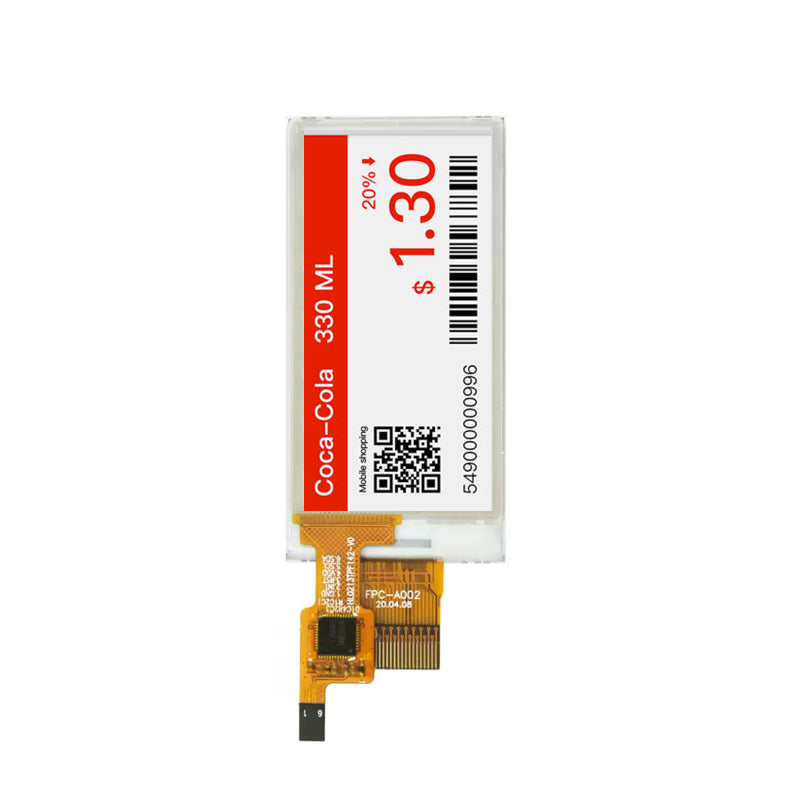

ET021EP05T-J

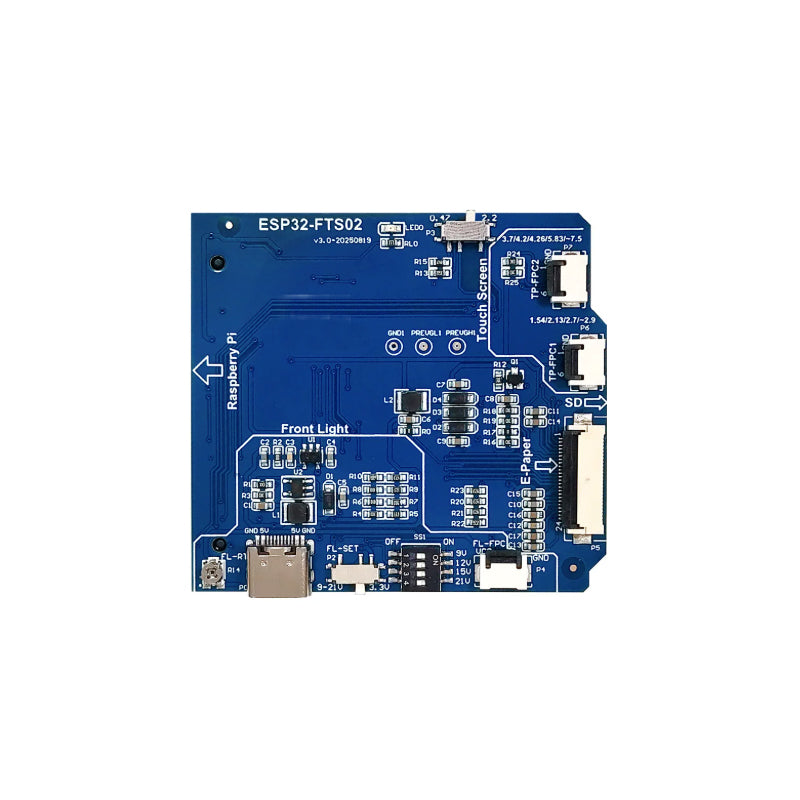

FTS02 Adapter board

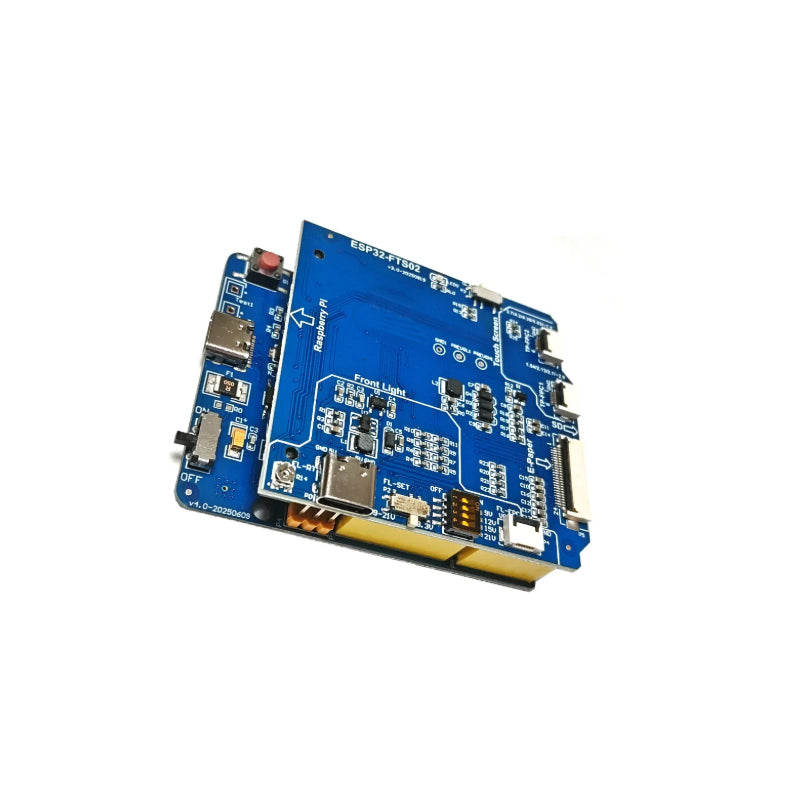

ESP32 (FTS02) (Adapter Board + Main Board)

Features For Youritech E-Paper Display

Full-Color Display
-Rich, vibrant visuals for enhanced communication.
Ultra-Low Power
-Consumes power only during screen updates.
Sunlight Readable
-Clear visibility in bright outdoor environments.
Paper-Like Viewing
-Comfortable, glare-free reading experience.
No Backlight
-Uses ambient light to reduce power consumption.
Always-On Display
-Retains images without continuous power.
Wide Viewing Angle
-Consistent image quality from any direction.
Long Battery Life
-Ideal for battery-powered applications.
Thin & Lightweight
-Easy integration into compact devices.
Multiple Color Options
-Available in B/W/Red, B/W/Yellow, four-color, and full-color versions.

-Electronic Shelf Labels (ESL)
-Retail Digital Signage
-Smart Labels
-Advertising Displays
-Public Information Displays
-Transportation Signage
-Medical Information Displays
-Smart Home Control Panels
-Conference & Event Badges
-Industrial IoT Displays
