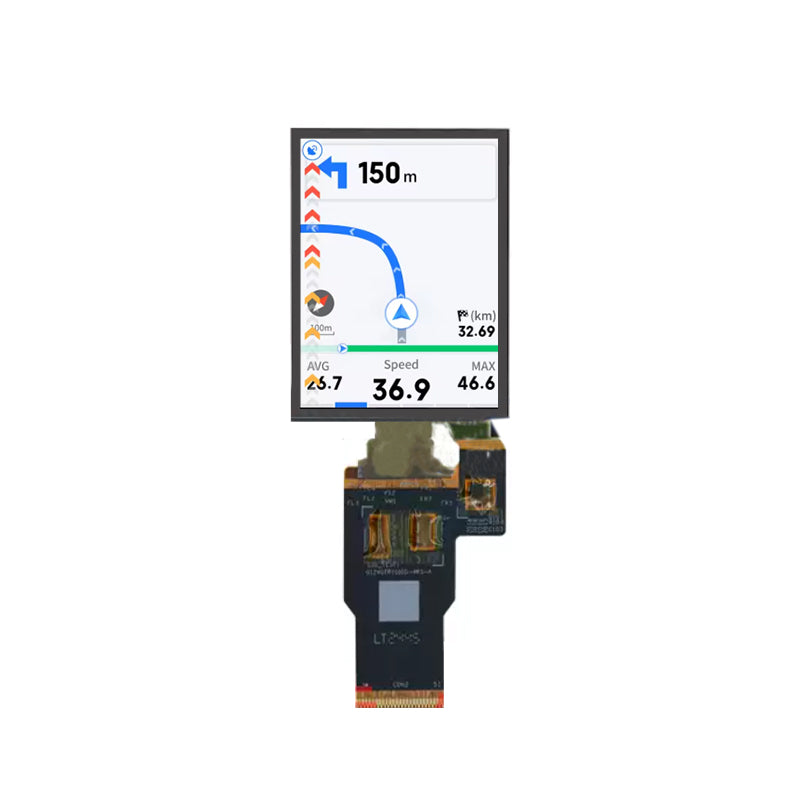

2.4 Inch AMOLED Display 450×600 LTPS Full Viewing Angle Multiple Wide Temperature High Brightness OLED Display

2.4 Inch AMOLED Display 450×600 LTPS Full Viewing Angle Multiple Wide Temperature High Brightness OLED Display

$26.60 USD
$26.60 USD
Sale Sold out
ET024AM01-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


2.4 Inch AMOLED Display Overview
ET024AM01-KT is a 2.4-inch AMOLED display featuring a 450×600 resolution and full viewing angles for clear, detailed images from different directions. With a high brightness of 850 cd/m², this display provides excellent visibility in various lighting conditions. Driven by the ICNA3312 controller, it supports multiple interface options, including MIPI, MCU, and SPI, offering flexibility for different hardware designs. The module measures 38.68 × 51.56 × 0.73 mm, with a display area of 36.72 × 48.96 mm, making it suitable for compact electronic devices. It integrates on-cell capacitive touch functionality with a GTW623 touch controller, while the IIC touch interface is incorporated into the MIPI interface. Featuring a 51-pin plug-in connection with a 0.3 mm pin pitch, the display operates at 3.3 V and supports a wide operating temperature range of -20°C to +80°C and a storage temperature range of -40°C to +80°C. With a service life of 30,000 hours, this 2.4-inch high-brightness AMOLED display is suitable for industrial instruments, portable electronics, handheld devices, and other applications requiring compact dimensions, responsive touch control, multiple interface options, and reliable wide-temperature performance.

Model ET024AM01-KT 2.4 Inch AMOLED Display 450×600 LTPS Full Viewing Angle Multiple Wide Temperature High Brightness OLED Display
Size 2.4" Touch Yes
Touch Type Capacitive touch Display Mode AMOLED
Display Colors TBD Color Gamut TBD
Response Time -- Resolution 450x600
Dot Pitch -- Viewing Angle All viewing angle
Driver IC ICNA3312 Outline Dimension 38.68*51.56*0.73mm
Active Area -- Dot Area 36.72*48.96mm
Brightness 850cd/m² Contrast Ratio TBD
Interface MIPI/MCU/SPI Pin Count 51
Pin Pitch 0.3mm Touch Interface IIC interface included in MIPI interface
Touch IC GTW623 (On-cell) Connection Type Plug-in type
Operating Voltage 3.3V Operating Life 30000h
Operating Temperature -20°C~+80°C Storage Temperature -40°C~+80°C

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?

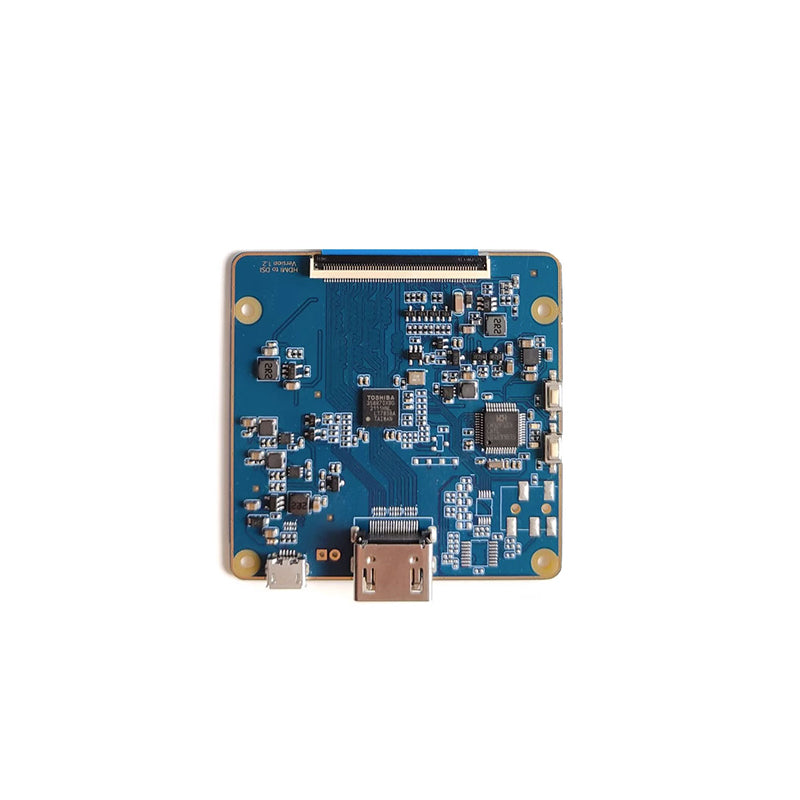

The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
