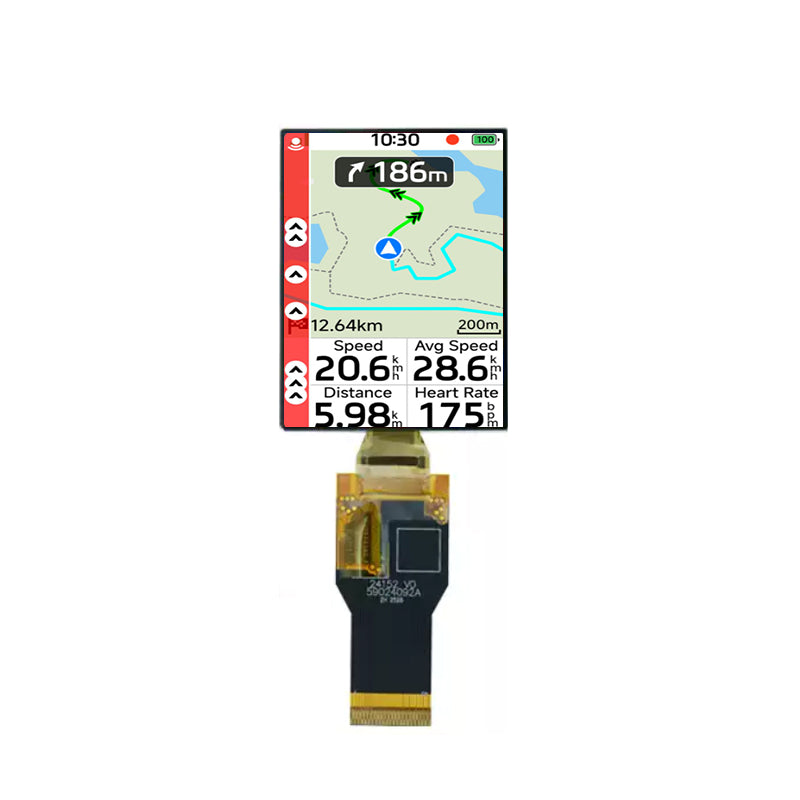

2.4 Inch AMOLED Display 450×600 MCU MIPI LTPS OLED Screen

2.4 Inch AMOLED Display 450×600 MCU MIPI LTPS OLED Screen

$18.82 USD
$18.82 USD
Sale Sold out
ET024AM02-K
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


2.4 Inch AMOLED Display Overview
ET024AM02-K supports a display resolution of 450×600 with an aspect ratio of 3:4 (W:H), featuring an LTPS AMOLED panel for sharp images and detailed visuals. As for mechanical details, it features an active area of 36.72(W)×48.96(H) mm, an outline size of 38.72(W)×51.56(H)×1.00(D) mm, and a compact design suitable for space-constrained applications. ET024AM02-K provides 800 cd/m² display brightness, a 1000000:1 contrast ratio, a full viewing angle, and a 100% color gamut. Gray scale or the brightness of each sub-pixel is controlled by a 24-bit signal, supporting a palette of 16.7 million colors for vivid and accurate color reproduction. With a typical response time of 2 ms, this self-emissive AMOLED display delivers fast image transitions and deep blacks. ET024AM02-K utilizes the RM690B0 driver IC and supports both MCU and MIPI interfaces, offering flexibility for different system designs. It operates at a typical voltage of 3.3V and features a 45-pin connector with a 0.6 mm pin pitch. Designed for reliable performance, the display offers a service life of up to 30000 hours, an operating temperature range of -20°C to +80°C, and a storage temperature range of -40°C to +80°C.

Model ET024AM02-K  2.4 Inch AMOLED Display 450×600 MCU MIPI LTPS OLED Screen
Size 2.4" Touch No
Touch Type None Display Mode AMOLED
Display Colors 16.7M (24bit) Color Gamut 100%
Response Time 2ms Resolution 450×600
Dot Pitch 0.0816 (H)*0.0816 (V) Viewing Angle All viewing angle
Driver IC RM690B0 Outline Dimension 38.72*51.56*1.00 mm
Active Area -- Dot Area 36.72*48.96 mm
Brightness 800 cd/m² Contrast Ratio 1000000:1
Interface MCU/MIPI Pin Count 45
Pin Pitch 0.6 mm Touch Interface --
Touch IC -- Connection Type Plug-in type
Operating Voltage 3.3 V Operating Life 30000h
Operating Temperature -20°C ~ +80°C Storage Temperature -40°C ~ +80°C


AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?

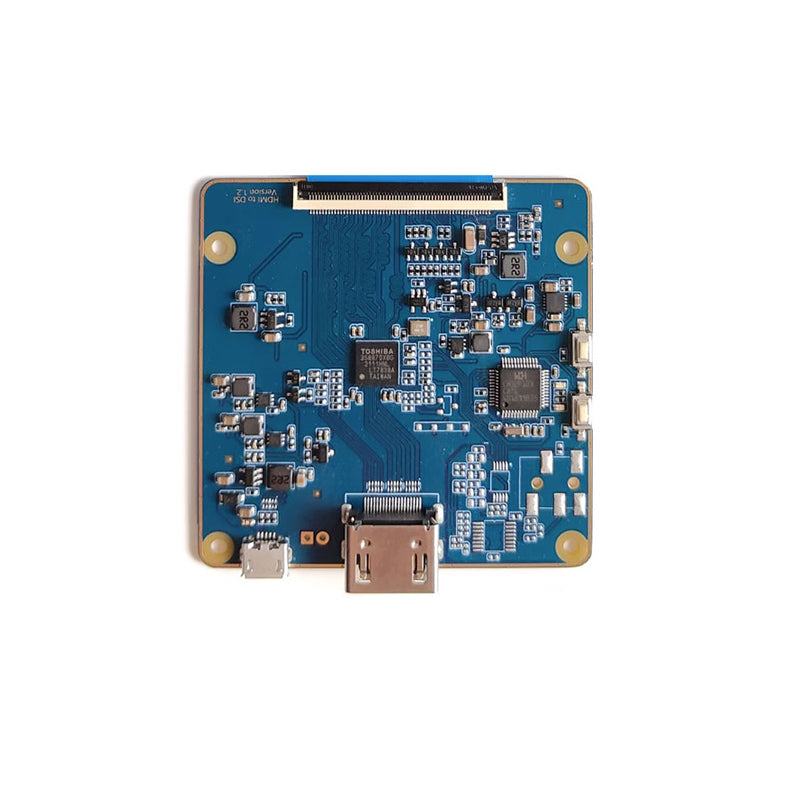

The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
