2.4 Inch OLED Display 450×600 MIPI CPU SPI High Brightness 800nits Wide Temperature AMOLED Display With On-Cell Touch For Cycling Computer Bike Display

2.4 Inch OLED Display 450×600 MIPI CPU SPI High Brightness 800nits Wide Temperature AMOLED Display With On-Cell Touch For Cycling Computer Bike Display

$26.86 USD
$26.86 USD
Sale Sold out
ET024AM02-H
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


2.4 Inch OLED Display 450×600 MIPI CPU SPI 800nits High Brightness Wide Temperature AMOLED Display With On-Cell Touch For Cycling Computer Bike Display Overview

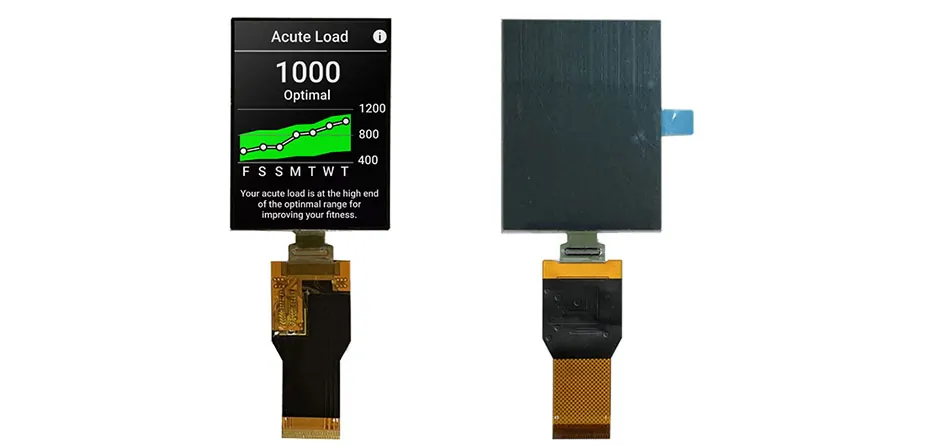

ET024AM02-H is a 2.4-inch diagonal AM-OLED display module featuring a self-emissive display mode. It supports a resolution of 450×600 with an aspect ratio of 3:4 (W:H) and adopts MIPI/CPU/SPI interfaces for flexible integration. The display offers an active area of 36.72 (W) × 48.96 (H) mm and an outline dimension of 38.72 (W) × 51.56 (H) mm. With a brightness of 800 cd/m², it delivers excellent visibility and high contrast performance, making it suitable for cycling computer and bike display applications. It provides wide viewing angles of 80/80/80/80 (L/R/U/D) and operates within a wide temperature range of -30°C to 80°C (storage: -40°C to 80°C). This module integrates on-cell touch functionality.

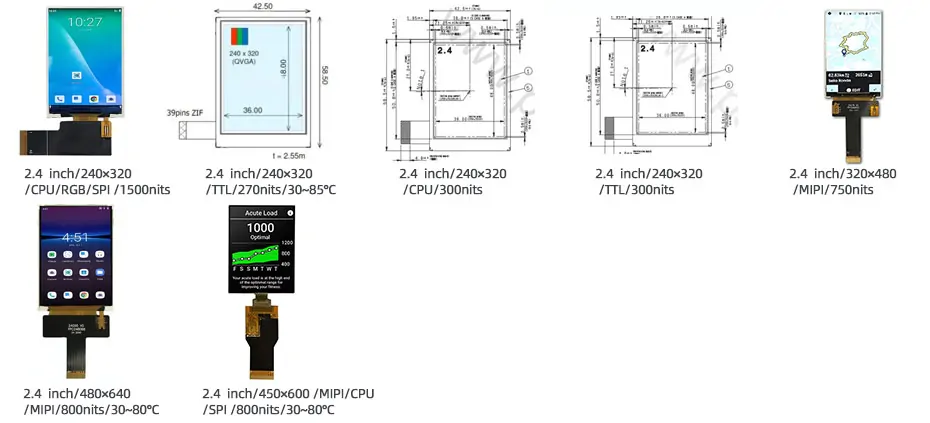

More 2.4 Inch Cycling Computer Bike Display For Reference
ET024VG10-T (240×320, CPU/RGB/SPI, LCM, 1500nits, -20~70°C, 42.92×60.26mm)
COM24H2P71ULC (240×320, TTL, LCM, 270nits, -30~85°C, 42.5×58.5mm)
COM24H2P96ULC (240×320, CPU, LCM, 300nits, -20~70°C, 42.5×58.5mm)
COM24H2P94ULC (240×320, TTL, LCM, 300nits, -20~70°C, 42.5×58.5mm)
ET024HVFID078 (320×480, MIPI, LCM, 750nits, -20~70°C, 39.52×60.68mm)
ET024VG30-K (480×640, MIPI, LCM, 800nits, -30~80°C, 42.92×60.26mm)
ET024AM02-H (450×600, MIPI/CPU/SPI , OLED, 800nits, -30~80°C, 38.72×51.56mm)

Cycling Computer Bike Display Solution
Cycling Computer Bike Display Solution-Sunlight Readable Low Power Consumption-Long-term Stable Supply-Water-Proof &Glove Touch &Anti-Vibration-High-Mix/Low-Volume Production-Support Customized Product
Cycling Computer Bike Display Solution

Youritech Cycling Computer Bike Display Production and ManufacturingYouritech Cycling Computer Bike Display Production and Manufacturing

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
