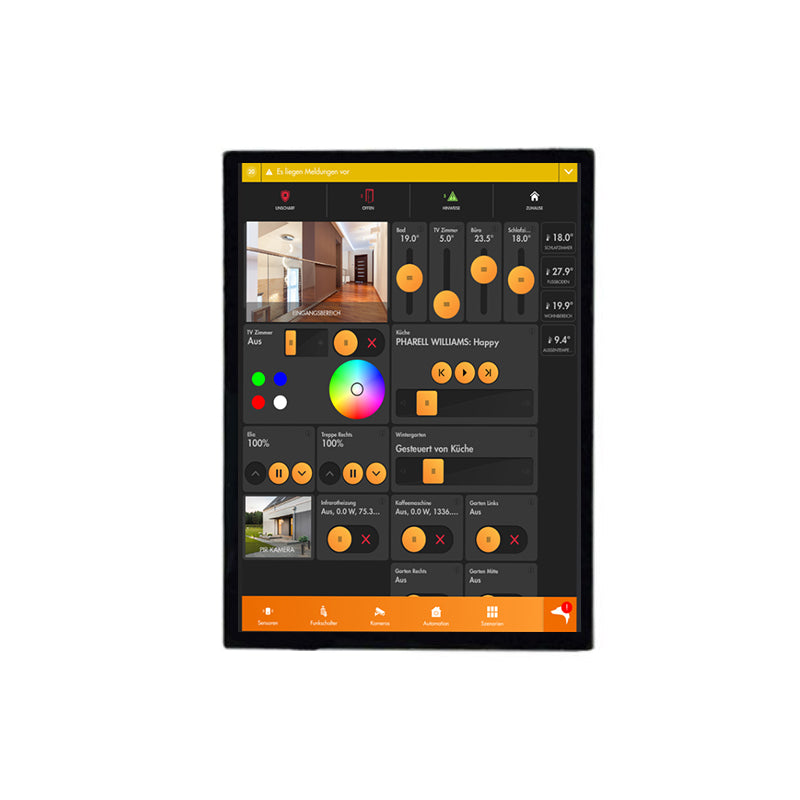

2.42 Inch AMOLED Display 450×600 SPI/QSPI/MIPI Interface 850 Nits High Brightness Screen For Digital Devices AMOLED Display

2.42 Inch AMOLED Display 450×600 SPI/QSPI/MIPI Interface 850 Nits High Brightness Screen For Digital Devices AMOLED Display

$28.21 USD
$28.21 USD
Sale Sold out
ET024AM01-H
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


2.42 Inch AMOLED Display Overview

ET024AM01-H is a 2.42-inch AMOLED display module featuring a 450×600 resolution, delivering sharp details and vivid colors for compact electronic devices. It features an active area of 36.72(H) × 48.96(V) mm and an overall module dimension of 38.68(H) × 51.56(V) × 0.75(T) mm, making it suitable for space-constrained applications. The module provides a typical brightness of 850 nits, a contrast ratio of 100,000:1, and a wide viewing angle in all directions, ensuring bright images, deep blacks, and consistent visibility. With a pixel density of 311 PPI, support for 16.7 million colors, and a color gamut of 100%, ET024AM01-H delivers clear image details and natural color reproduction. It supports SPI, QSPI, and MIPI interfaces, providing flexible connectivity options for embedded display systems. The module features a plug-in connector, integrates the C06300 driver IC, and operates with a drive voltage range of 2.8–3.3 V. ET024AM01-H supports an operating temperature range of -30°C to 70°C and a storage temperature range of -40°C to 80°C. Combining high brightness, high contrast, and multiple interface options, this AMOLED display module is suitable for digital products, portable electronics, smart devices, and other applications requiring a compact, high-quality display.


ET024AM01-H AMOLED Display Specifications

Parameter Specification Parameter Specification
Part No. ET024AM01-H Display Size 2.42 inch
Resolution 450 × 600 pixels Display Colors 16.7M
Active Area 36.72(H) × 48.96(V) mm Module Dimensions 38.68(H) × 51.56(V) × 0.75(T) mm
Pixel Pitch 0.0816 mm Pixel Density 311 PPI
Viewing Angle All Directions (A11) Contrast Ratio 100,000:1
Brightness 850 nits Color Gamut 100%
Interface QSPI / MIPI / SPI Connection Type Plug-in Connector
Driver IC C06300 Drive Voltage 2.8–3.3 V
Operating Temperature -30°C to 70°C Storage Temperature -40°C to 80°C



AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
