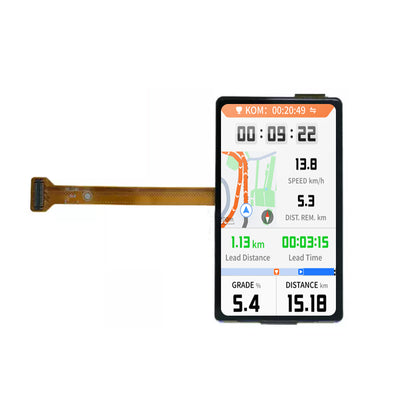

2.5 Inch AMOLED Display 400×712 LTPS High Brightness High Contrast OLED Display with Capacitive Touch

2.5 Inch AMOLED Display 400×712 LTPS High Brightness High Contrast OLED Display with Capacitive Touch

$26.43 USD
$26.43 USD
Sale Sold out
ET025AM01-KT
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


2.5 Inch AMOLED Display Overview

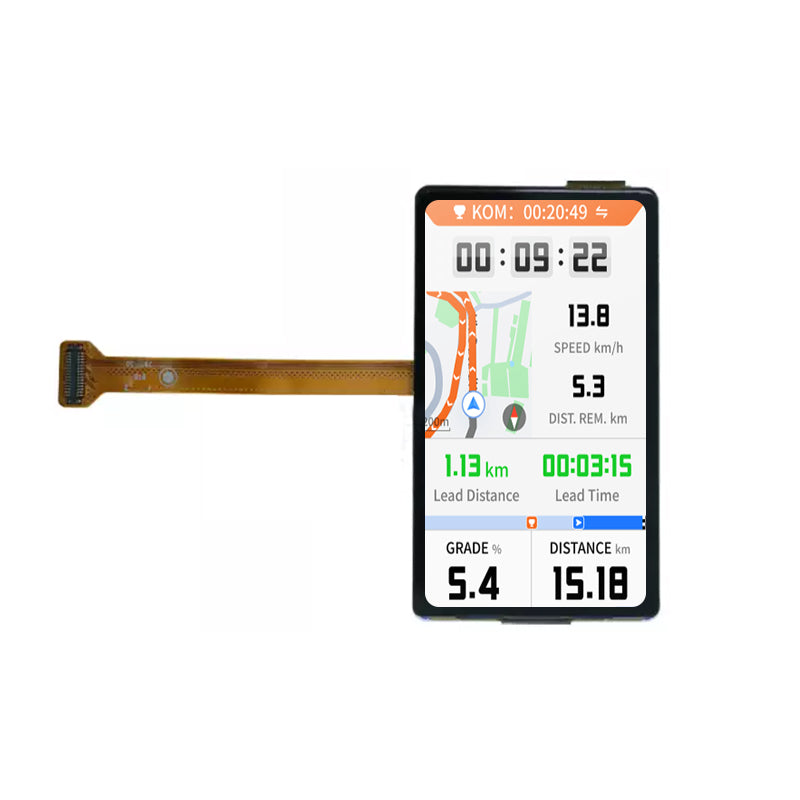

ET025AM01-KT is a 2.5-inch AMOLED display featuring a 400×712 resolution and a MIPI interface. With 16.7 million colors and a 108% color gamut, this display delivers vivid colors and rich visual detail. Its high brightness of 800 cd/m², contrast ratio of 100,000:1, and full viewing angles provide clear images with deep blacks and consistent color performance from different viewing directions. The AMOLED panel measures 32.90 × 58.56 × 2.00 mm, with a display area of 31.10 × 55.36 mm, making it suitable for compact electronic designs. It integrates on-cell capacitive touch functionality with a ZT2628 touch controller and an I²C interface for responsive user interaction. Driven by the RM690C0 controller, the module features a 30-pin plug-in connection and operates at 3.3 V. With a service life of 20,000 hours, an operating temperature range of -20°C to +70°C, and a storage temperature range of -30°C to +80°C, this 2.5-inch high-brightness AMOLED display is suitable for portable electronics, handheld instruments, smart home devices, and other applications requiring vivid visuals, high contrast, and integrated touch functionality.

Model ET025AM01-KT  2.5 Inch AMOLED Display 400×712 LTPS High Brightness High Contrast OLED Display with Capacitive Touch
Size 2.5" Touch Yes
Touch Type Capacitive touch Display Mode AMOLED
Display Colors 16.7M Color Gamut 108%
Response Time -- Resolution 400×712
Dot Pitch 0.07775 (H)*0.07775 (V) Viewing Angle All viewing angle
Driver IC RM690C0 Outline Dimension 32.90*58.56*2.00 mm
Active Area -- Dot Area 31.10*55.36 mm
Brightness 800 cd/m² Contrast Ratio 100000:1
Interface MIPI Pin Count 30
Pin Pitch -- Touch Interface I2C
Touch IC ZT2628 (ONCELL) Connection Type Plug-in type
Operating Voltage 3.3 V Operating Life 20000h
Operating Temperature -20°C ~ +70°C Storage Temperature -30°C ~ +80°C



AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing



Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?

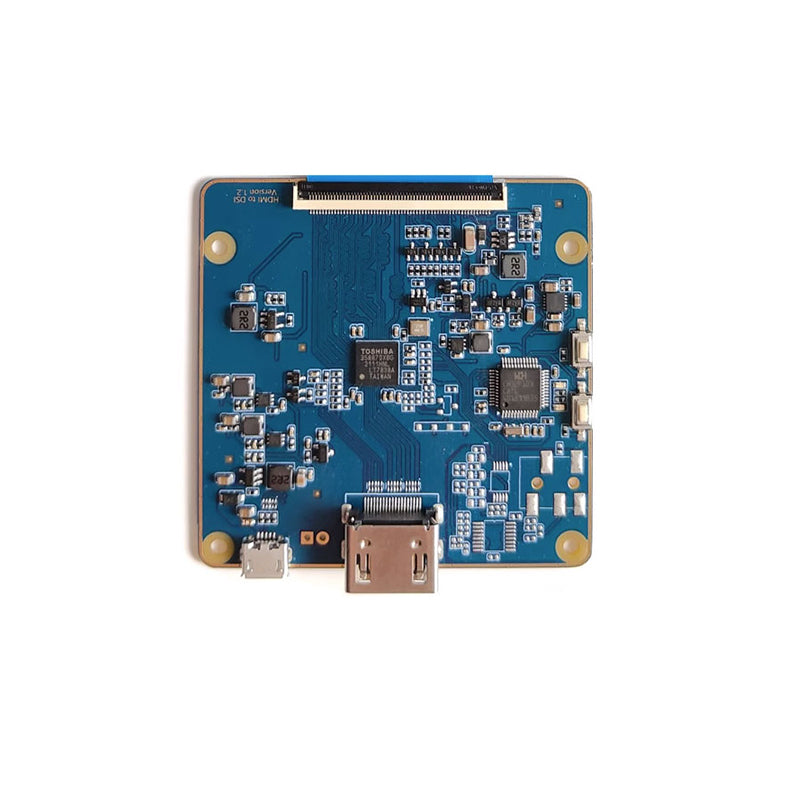

The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
