2.8 Inch Round Display MIPI 480×480 IPS Full-View Circular Display with Capacitive Touch & HDMI Driver Board

2.8 Inch Round Display MIPI 480×480 IPS Full-View Circular Display with Capacitive Touch & HDMI Driver Board

$9.67 USD
$9.67 USD
Sale Sold out
More 2.8 Inch Circular Display Solution
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

2.8 Inch Round Display 480×480 MIPI IPS Full-View Circular Display with Capacitive Touch & HDMI Driver Board Overview
ET028CR01-GX is a 2.8-inch round IPS TFT-LCD display featuring a 480×480 resolution and a Normally Black display mode. It uses a MIPI interface and provides an IPS full-view viewing angle for clear and consistent images from different viewing directions. The display features a 350 cd/m² brightness, an active area of 70.128(W) × 70.128(H) mm, and an outline dimension of 73.03(W) × 76.48(H) × 2.30(D) mm. ET028CR01-GX supports an operating temperature range of -20°C to 60°C and a storage temperature range of -30°C to 80°C. It is designed for compact embedded applications requiring a high-quality circular display, with optional capacitive touchscreen and HDMI driver board solutions available.
2.8 Inch Round Display 480×480 MIPI IPS Full-View Circular Display with Capacitive Touch & HDMI Driver Board
More 2.8 Inch Circular Display  Specification

Part No. ET028CR01-GX Size 2.8 inch
Resolution 480 × 480 Display Mode Normally Black
Panel Interface MIPI Touch Panel No
Outline Dimension 73.03 × 76.48 × 2.3 mm Active Area 70.128 × 70.128 mm
Viewing Angle (L/R/U/D) IPS Full Angle Brightness 350 cd/m²
Operation Temp. -20 ~ 60°C Storage Temp. -30 ~ 80°C

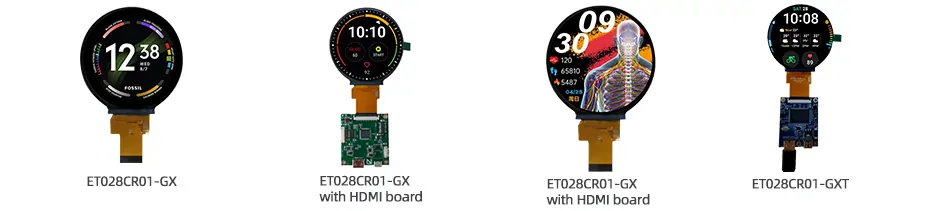

More 2.8 Inch Circular Display Solution For Reference

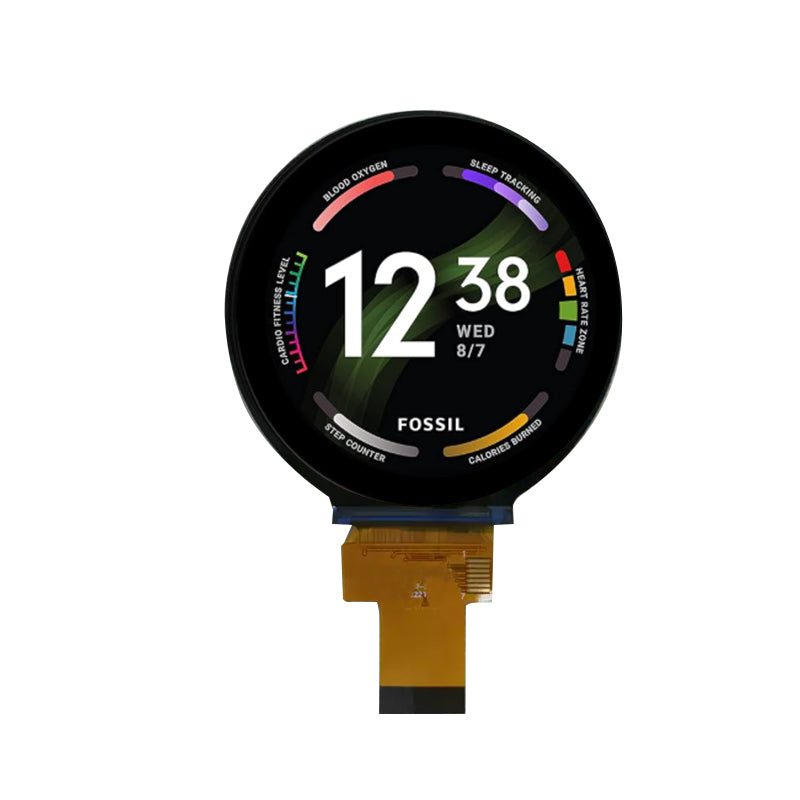

ET028CR01-GX (Non Touch)

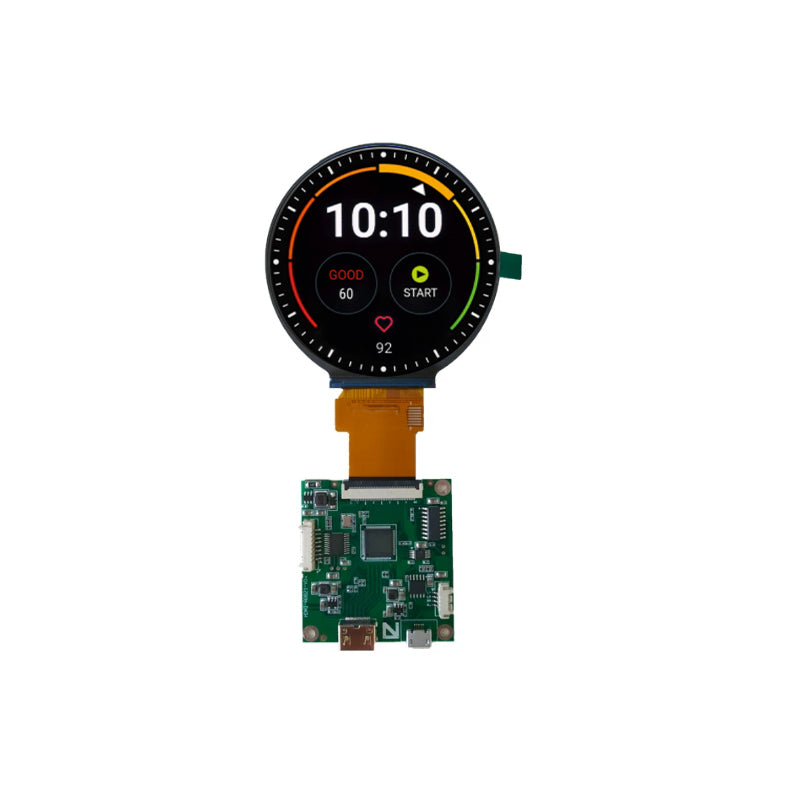

ET028CR01-GX with HDMI board

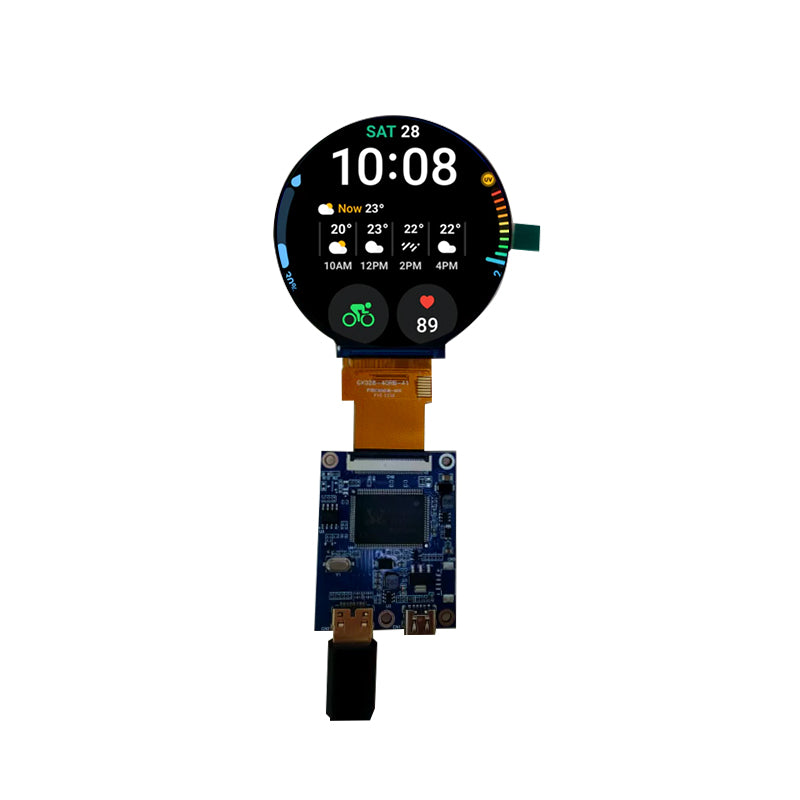

ET028CR01-GXT with HDMI board
ET028CR01-GXT (Capacitive Touch)
2.8 Inch Round Display 480×480 MIPI IPS Full-View Circular Display with Capacitive Touch & HDMI Driver Board

Circular Display Application

Production and Manufacturing

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out?
Normally, displays take 2–5 days and the HDMI/Demo board takes 1–2 weeks because it needs to be fully tested and configured. If stock is sufficient, we will ship immediately.

4. What`re the function of HDMI board and demo board?
The HDMI board converts HDMI input into the panel's native signal (MIPI/eDP/LVDS), provides power rails and backlight control, it typically doesn`t have touch functionality unless the SKU indicates.
The demo board is a development tool for quickly lighting up and evaluating a display.
